Lexus
›
2008
›
RX 350 AWD
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Brake Control
›
Vehicle Stability Control System
›
Skid Control Buzzer Circuit
›
Wiring Diagram
Skid Control Buzzer Circuit: Wiring Diagram

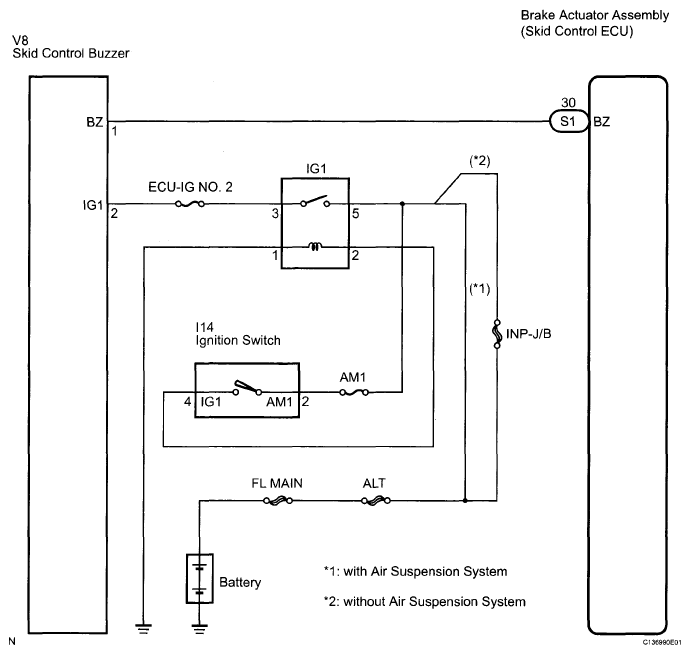

Fig 1: Brake Actuator Assembly And Skid Control Buzzer - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
