Fuel Pump Control Circuit
›
Wiring Diagram
Fuel Pump Control Circuit: Wiring Diagram

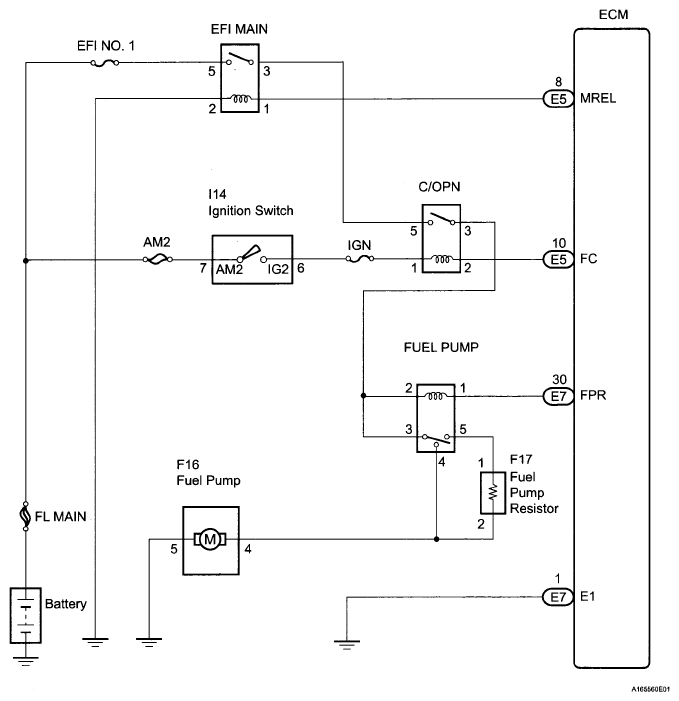

Fig 1: Fuel Pump Control - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
