Ignition Coil: Components

Fig 1: Identifying Ignition Coil Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Ignition Coil Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

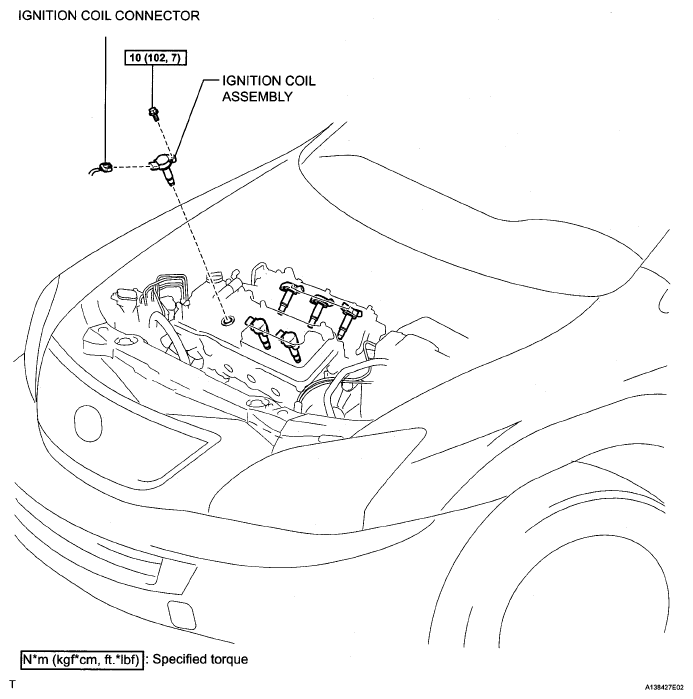

Fig 3: Identifying Ignition Coil Replacement Components With Torque Specifications (3 Of 4)

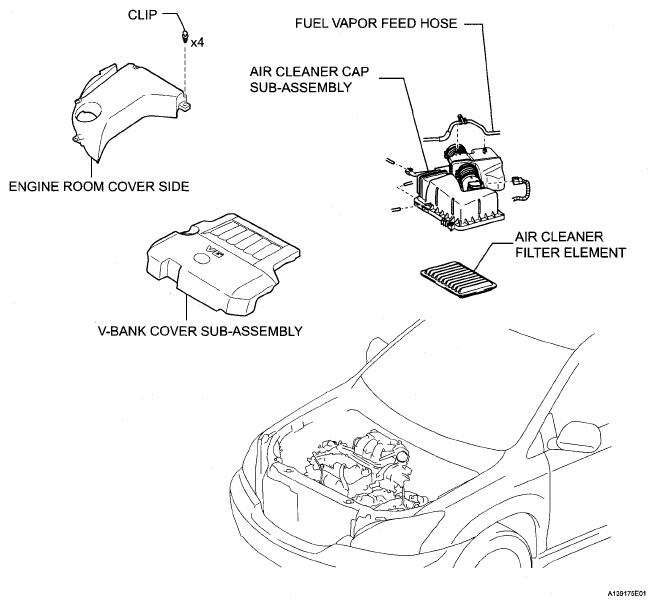

Fig 4: Identifying Ignition Coil Replacement Components With Torque Specification (4 Of 4)
