Automatic Transaxle Assembly: Components

WARNING: This page is about a different variant/trim than selected.

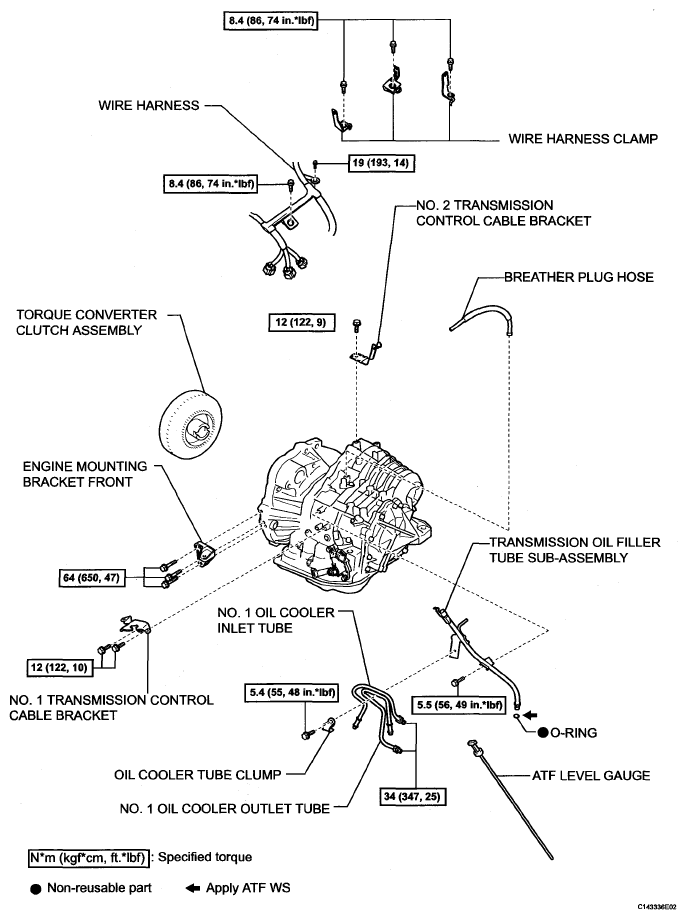

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components And Torque Specifications (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

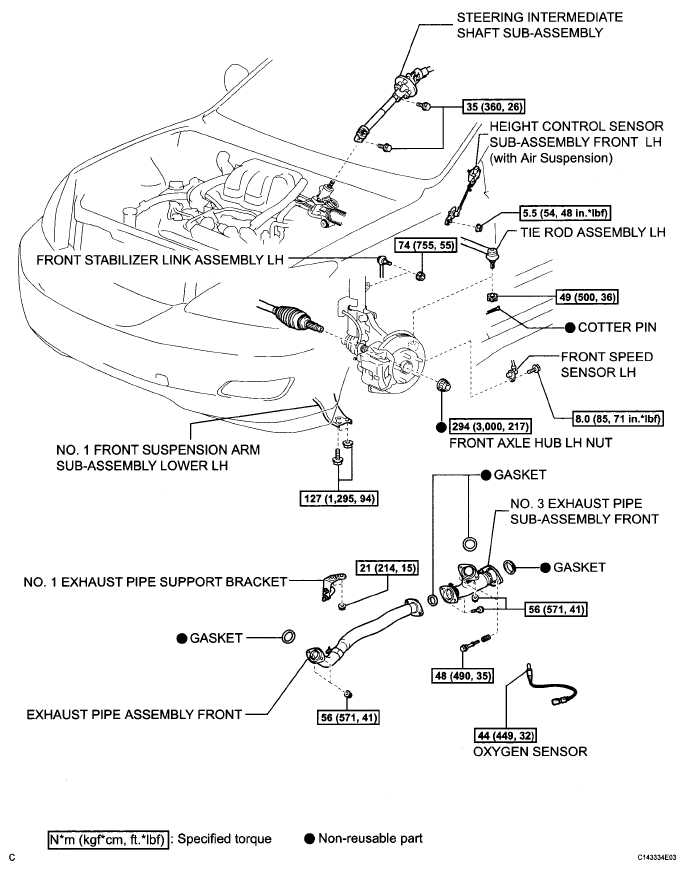

Fig 2: Identifying Automatic Transaxle Assembly Replacement Components (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Automatic Transaxle Assembly Replacement Components And Torque Specifications (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Automatic Transaxle Assembly Replacement Components And Torque Specifications (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Automatic Transaxle Assembly Replacement Components And Torque Specifications (5 Of 7)

Fig 6: Automatic Transaxle Assembly Replacement Components With Torque Specifications (6 Of 7)

Fig 7: Identifying Automatic Transaxle Assembly Replacement Components And Torque Specifications (7 Of 7)
