Initialization Of Power Window During PDS (PD078-06)

Publication date: 2006-12-14
Reference number: PD078-06

INITIALIZATION OF POWER WINDOW DURING PDS

TECHNICAL SERVICE BULLETIN

Reference Number(s): PD078-06, Date of Issue: December 14, 2006

LEXUS:	2008 RX 350
Section:	PRE-DELIVERY SERVICE
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

Introduction

As a result of the removal of the Short Pin, the "one-touch open and close" and "jam protection" functions of each door's power window will be inoperative due to loss of each door's power window position memory.

Initialize each door's power window after installing the Short Pin into its original location during Pre-Delivery Service (PDS) at the dealership.

NOTE: Any time the battery terminal has been disconnected, each door's power window MUST be re-initialized.

Applicable Vehicles

2008 model year RX 350 vehicles.

Warranty Information

WARRANTY INFORMATION

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
NA	Not Applicable to Warranty	-	-	-	-

Initialization Procedure

Check that the Short Pin is installed in its original location. (Refer to TSIB No. PD076-06, BATTERY MAINTENANCE FOR IN-STOCK VEHICLES & PRE-DELIVERY ).

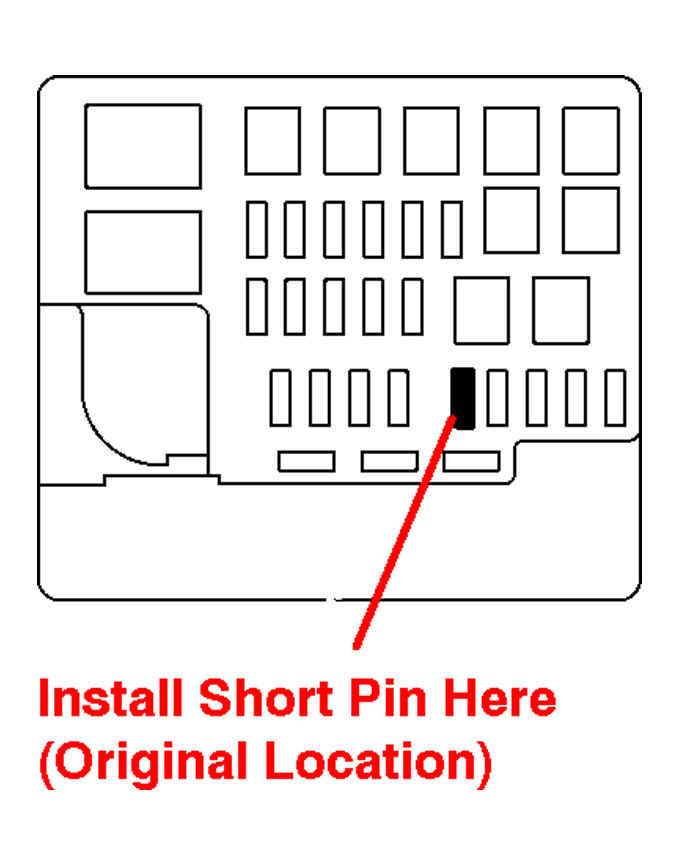

Fig 1: Identifying Short Pin Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Turn the ignition switch to the "ON" position.
At this time, the driver's door power window switch illumination blinks.

NOTE: Any time the battery terminal has been disconnected, each door's power window must be re-initialized.

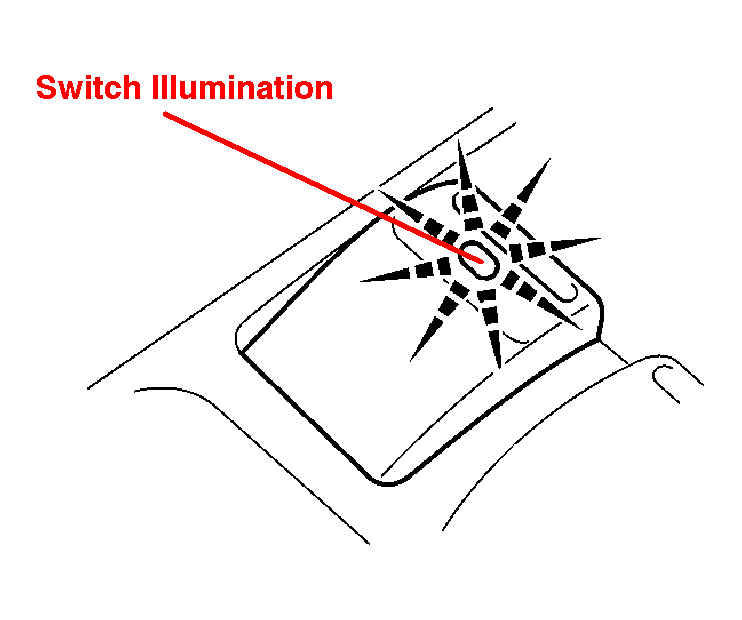

Fig 2: Identifying Widow Switch Illumination
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Push the driver's door power window switch and lower the window halfway.
Pull up the driver's door power window switch until the window closes, and continue to hold it up for more than one second.
At this time, the driver's door power window switch changes from blinking to constant illumination.
Check for the proper operation of the "one-touch open and close" function by fully pushing the switch "DOWN" once and fully pulling the switch "UP" once.
NOTE: Jam protection function is enabled through the above initialization procedure.
Repeat steps 2 - 5 on each door's power window switch.
Check that each door's power window switch illumination is constant.

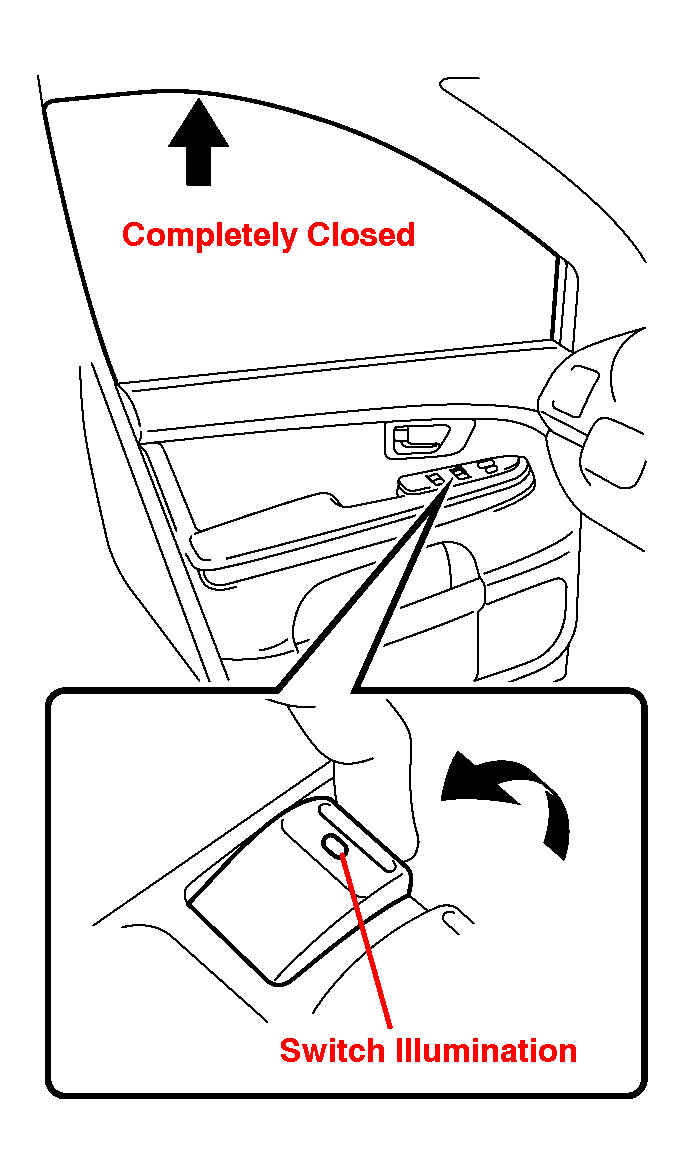

Fig 3: Checking Door's Power Window Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
