U151F Automatic Transaxle
›
Automatic Transaxle System
›
Transmission Control Switch Circuit
›
Wiring Diagram
Transmission Control Switch Circuit: Wiring Diagram

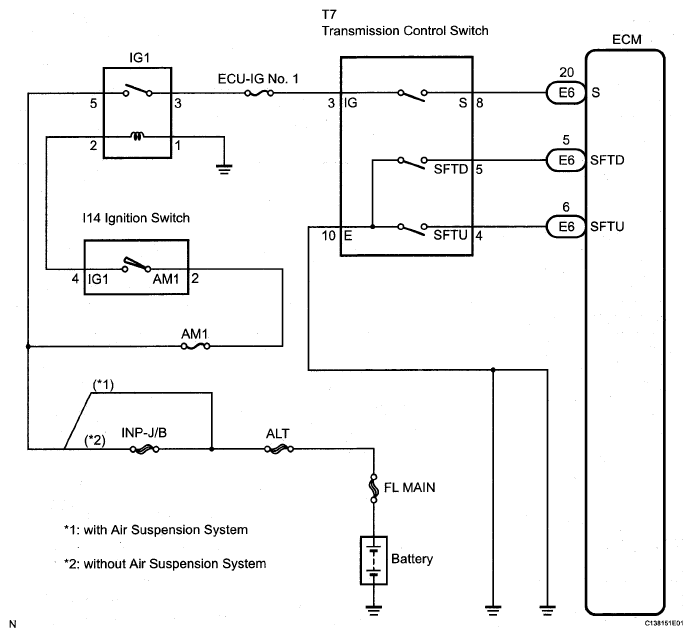

Fig 1: Transmission Control Switch Circuit - Wiring Diagram
