Transmission Control Cable Assembly: Components

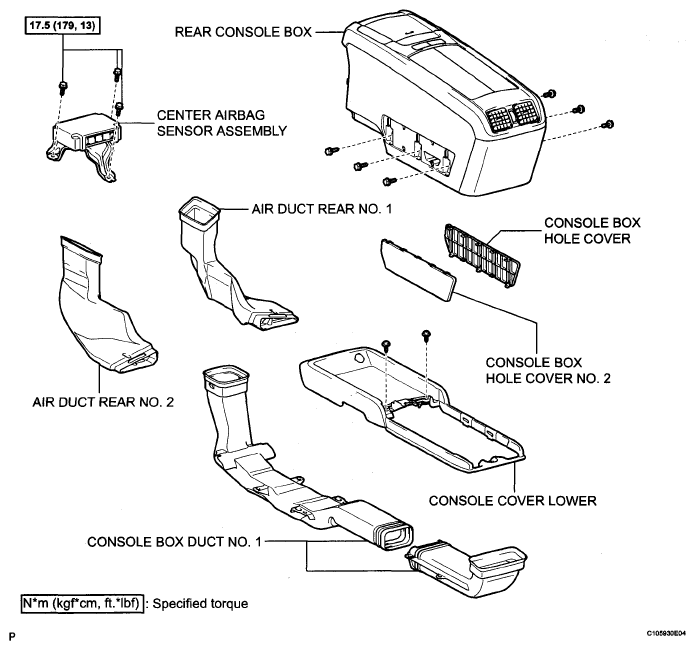

Fig 1: Identifying Transmission Control Cable Assembly Replacement Components With Torque Specification (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

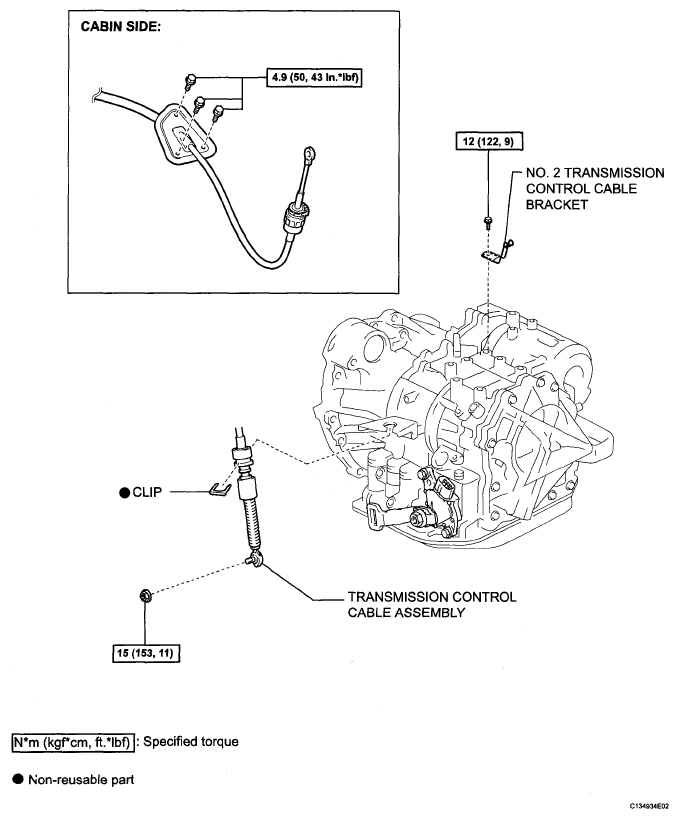

Fig 2: Identifying Transmission Control Cable Assembly Replacement Components With Torque Specification (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

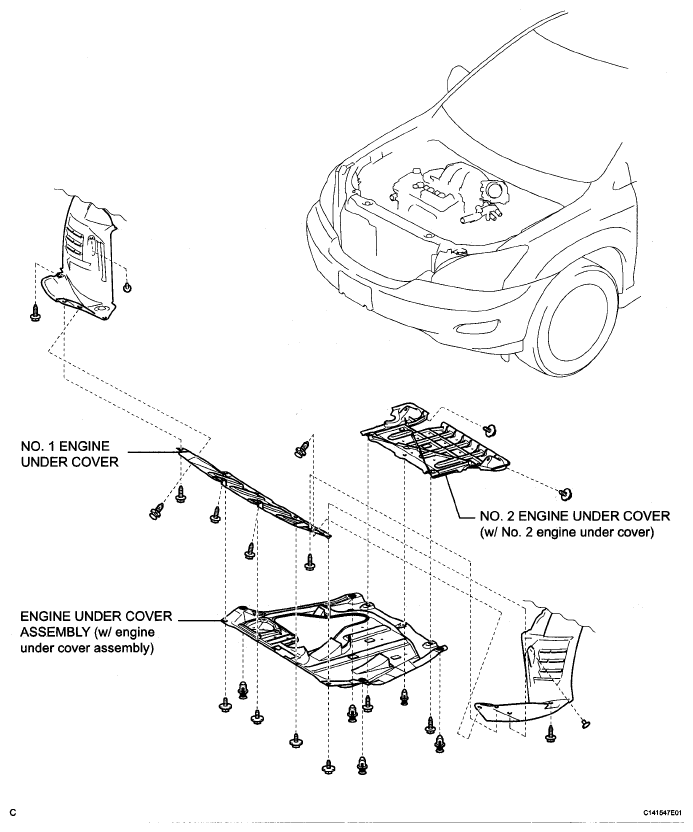

Fig 3: Identifying Transmission Control Cable Assembly Replacement Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

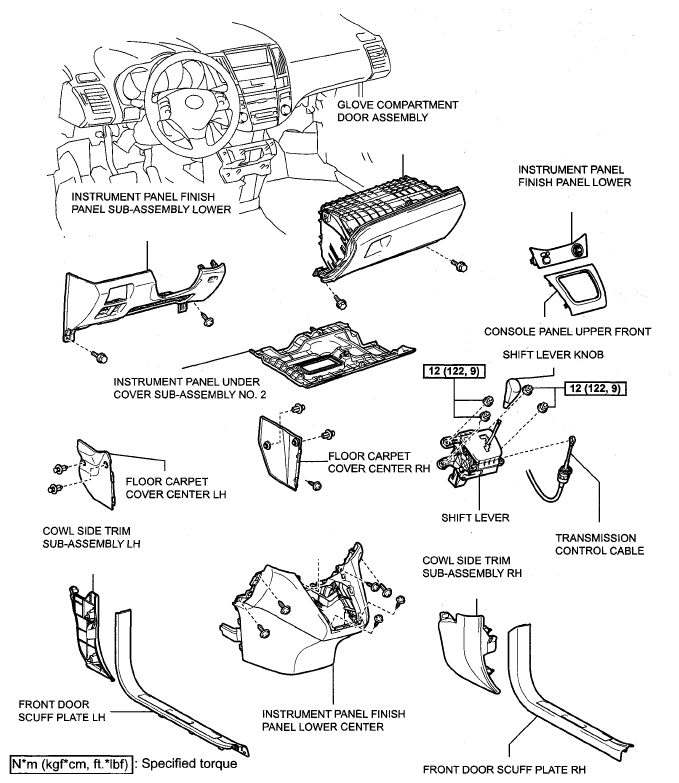

Fig 4: Transmission Control Cable Assembly Replacement Components With Torque Specifications (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
