Second Brake Piston: Components

WARNING: This page is about a different variant/trim than selected.

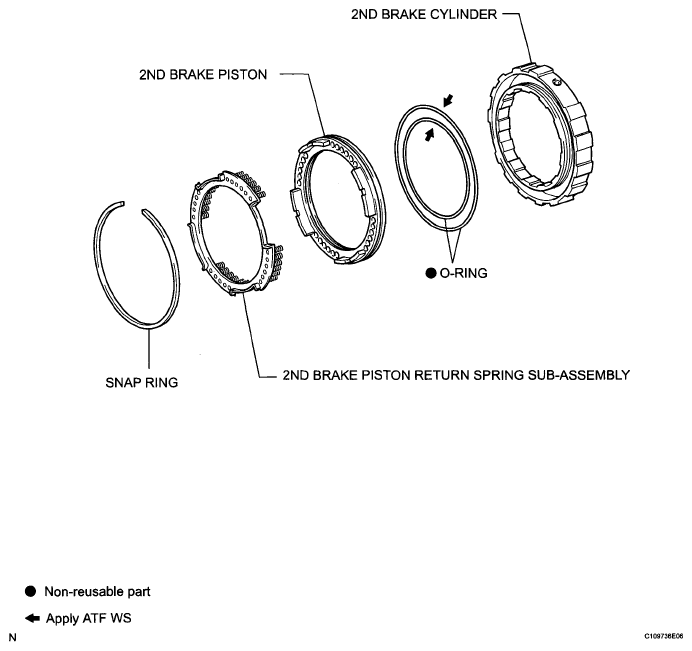

Fig 1: Identifying Second Brake Piston Components
G05841658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
