Mirror Heater without Memory
›
Notes
Mirror Heater without Memory: Notes

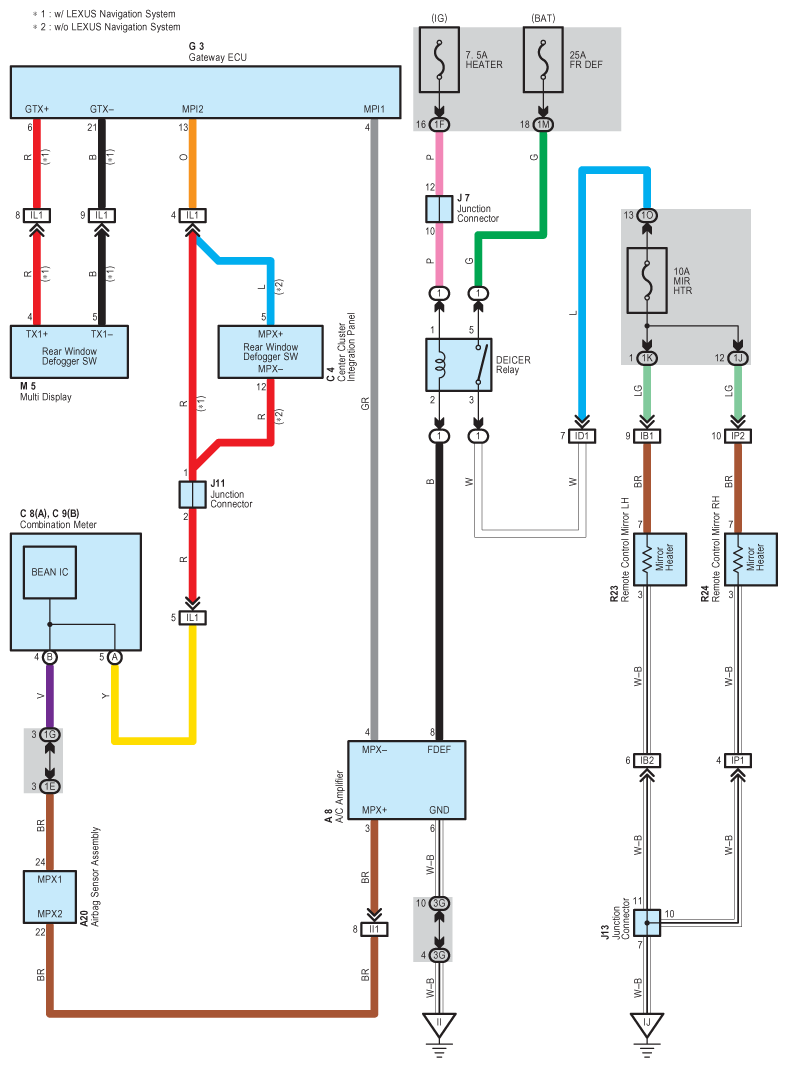

Fig 1: Mirror Heater Without Memory - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
