VVT Sensor: Components

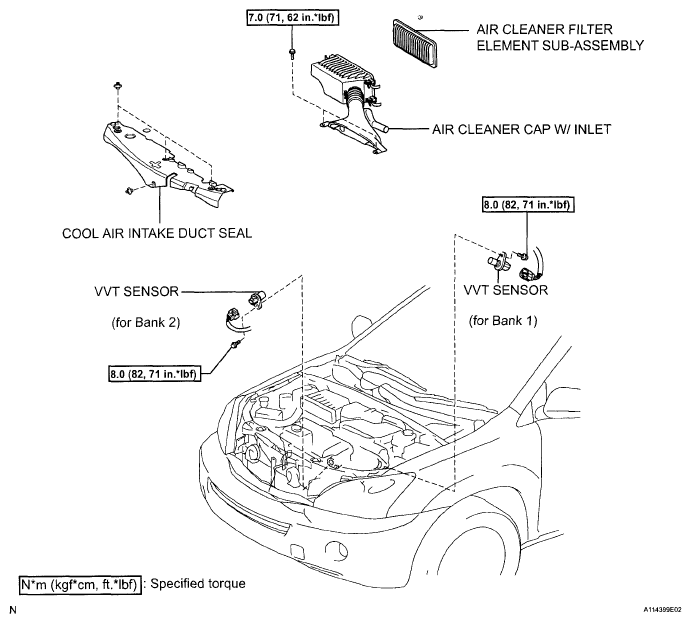

Fig 1: VVT Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
