Oil Pump Assembly: Components

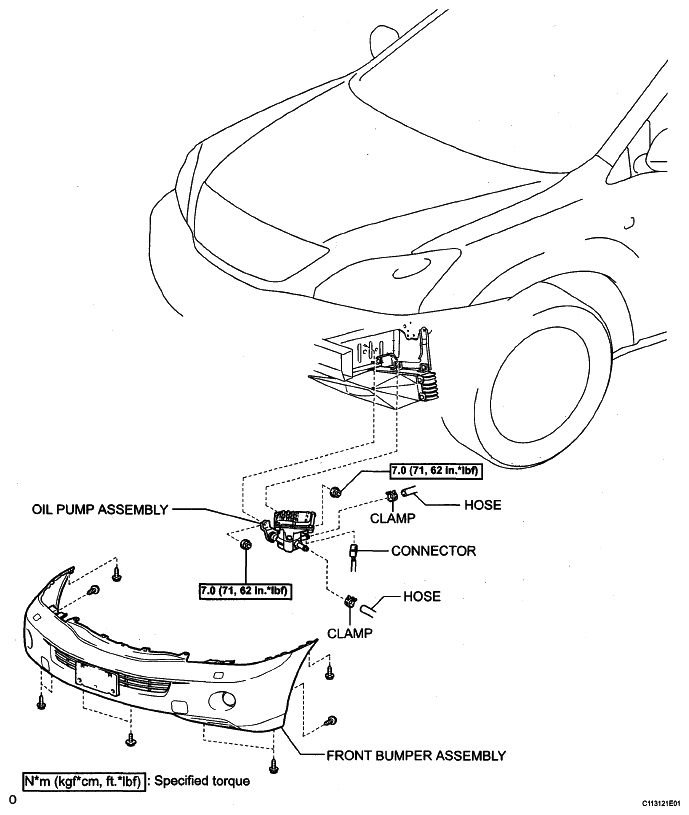

Fig 1: Oil Pump Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
