Shift Lever: Disassembly

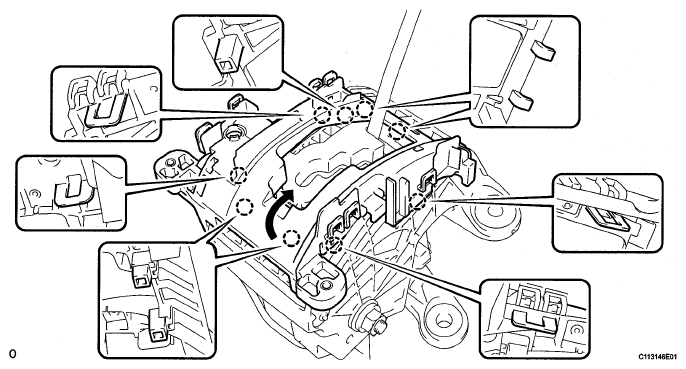

REMOVE POSITION INDICATOR HOUSING
1. Using a screwdriver, remove the position indicator housing from the shift lever assembly.
  NOTE: Do not damage the position indicator housing.
REMOVE SHIFT LOCK RELEASE BUTTON COVER
1. Using a screwdriver, remove the shift lock release button cover from the position indicator housing assembly.

  Fig 1: Identifying Shift Lock Release Button Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK RELEASE BUTTON
1. Remove the shift lock release button, spring and cover from the position indicator housing.
  NOTE: Do not damage the position indicator housing.

  Fig 2: Locating Shift Lock Release Button, Spring And Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR LIGHT GUIDE
1. Using a screwdriver, remove the position indicator light guide from the shift lever assembly.

  Fig 3: Identifying Position Indicator Light Guide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER
1. Remove the position indicator slide cover from the position indicator housing lower.

  Fig 4: Removing Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER NO.2
1. Remove the position indicator slide cover No.2 from the position indicator slide cover.

  Fig 5: Identifying Position Indicator Slide Cover No.2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Remove the indicator light wire sub-assembly from the shift lever assembly.
REMOVE SHIFT LEVER WIRE GUIDE
1. Remove the shift lever wire guide No.1 from the indicator light wire.

  Fig 6: Locating Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

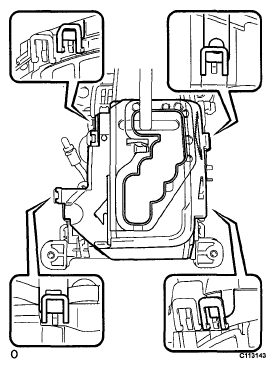

REMOVE POSITION INDICATOR HOUSING LOWER
1. Remove the position indicator housing lower from the shift lock control unit.

  Fig 7: Removing Position Indicator Housing Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
