System Diagram

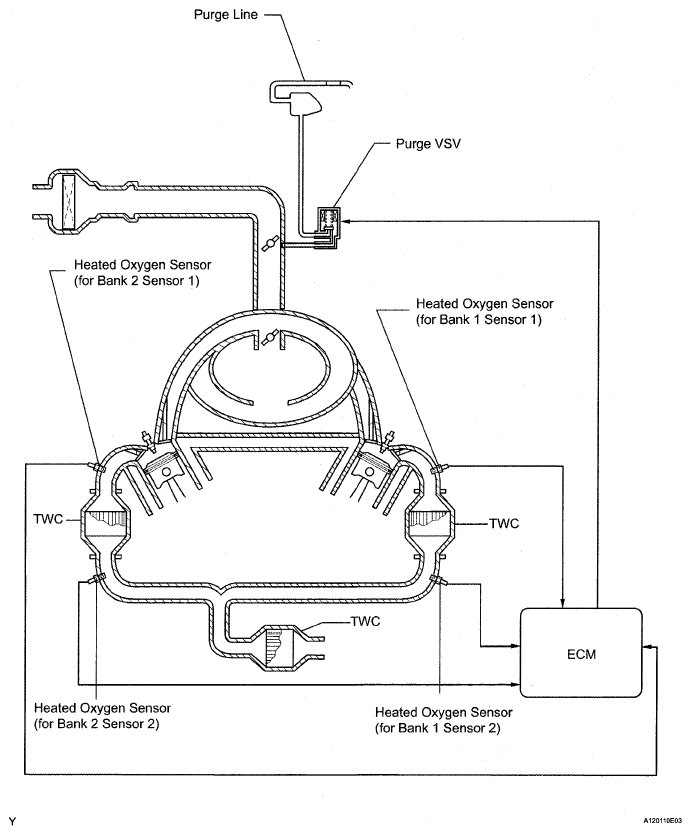

  1. EMISSION CONTROL SYSTEM DIAGRAM
    Fig 1: Emission Control System Diagram
    G05289209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

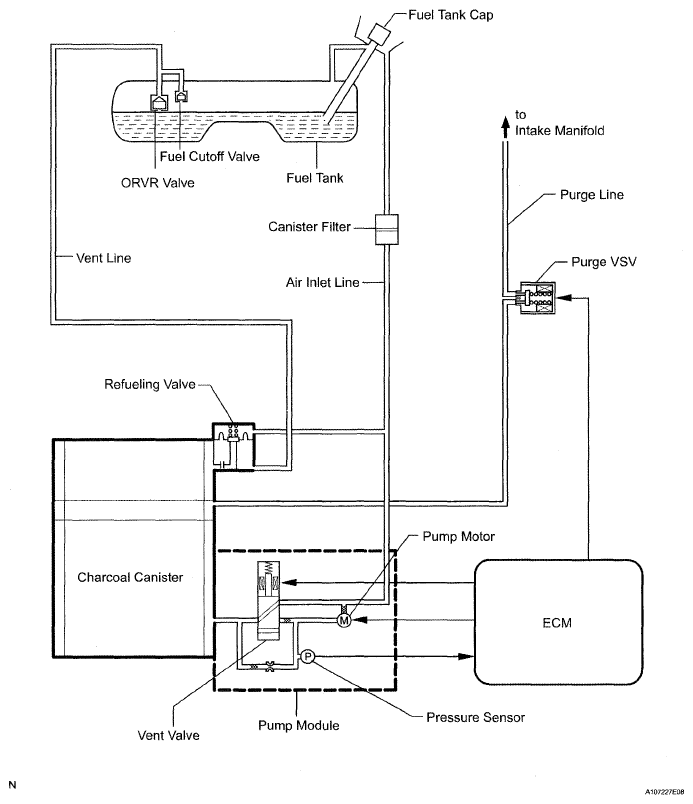

  2. EVAP SYSTEM DIAGRAM
    Fig 2: EVAP System Diagram
    G05289210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

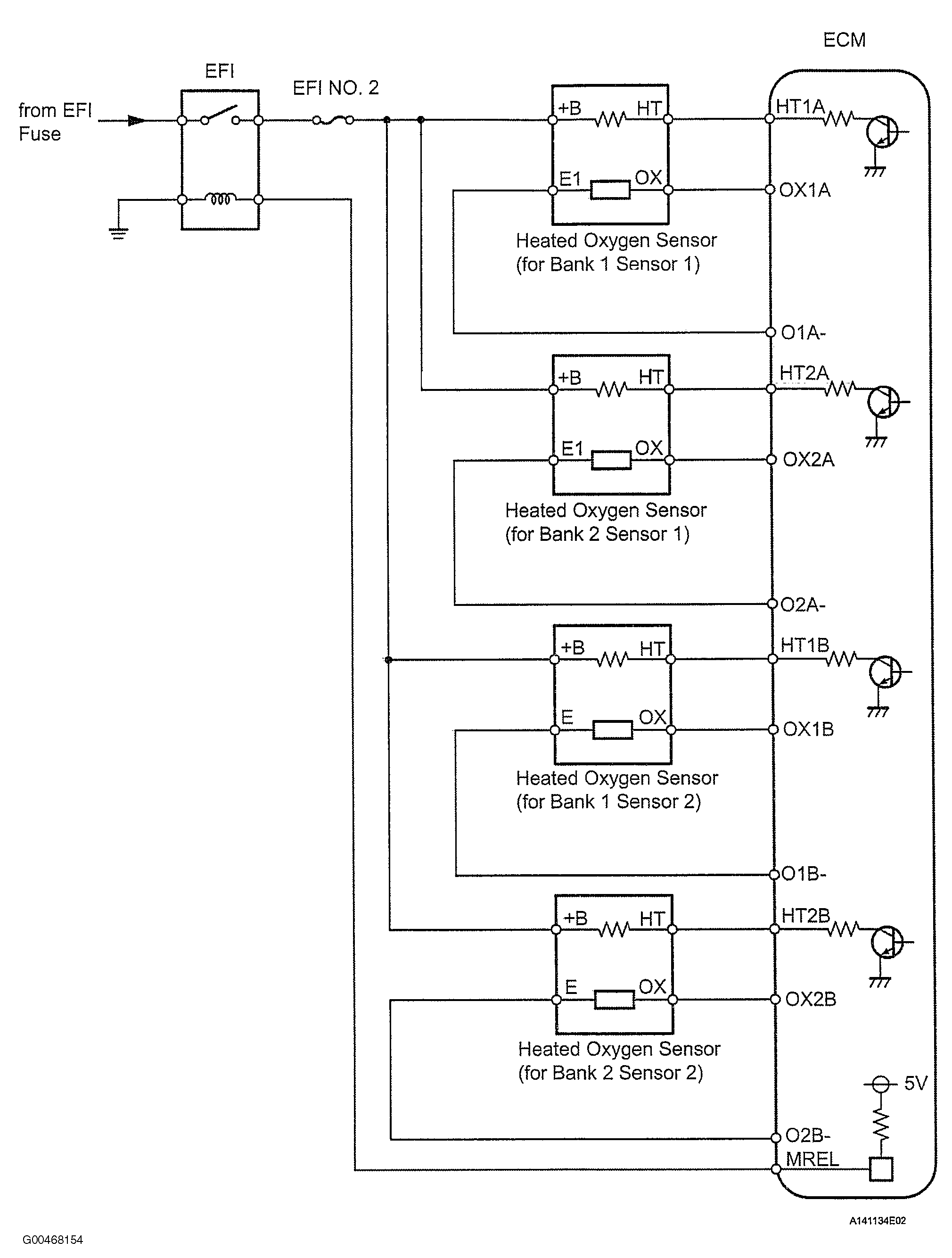

  3. EMISSION CONTROL WIRING DIAGRAM (Heated Oxygen Sensor Circuit)
    Fig 3: Emission Control Wiring Diagram (Heated Oxygen Sensor Circuit)
    G00468154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

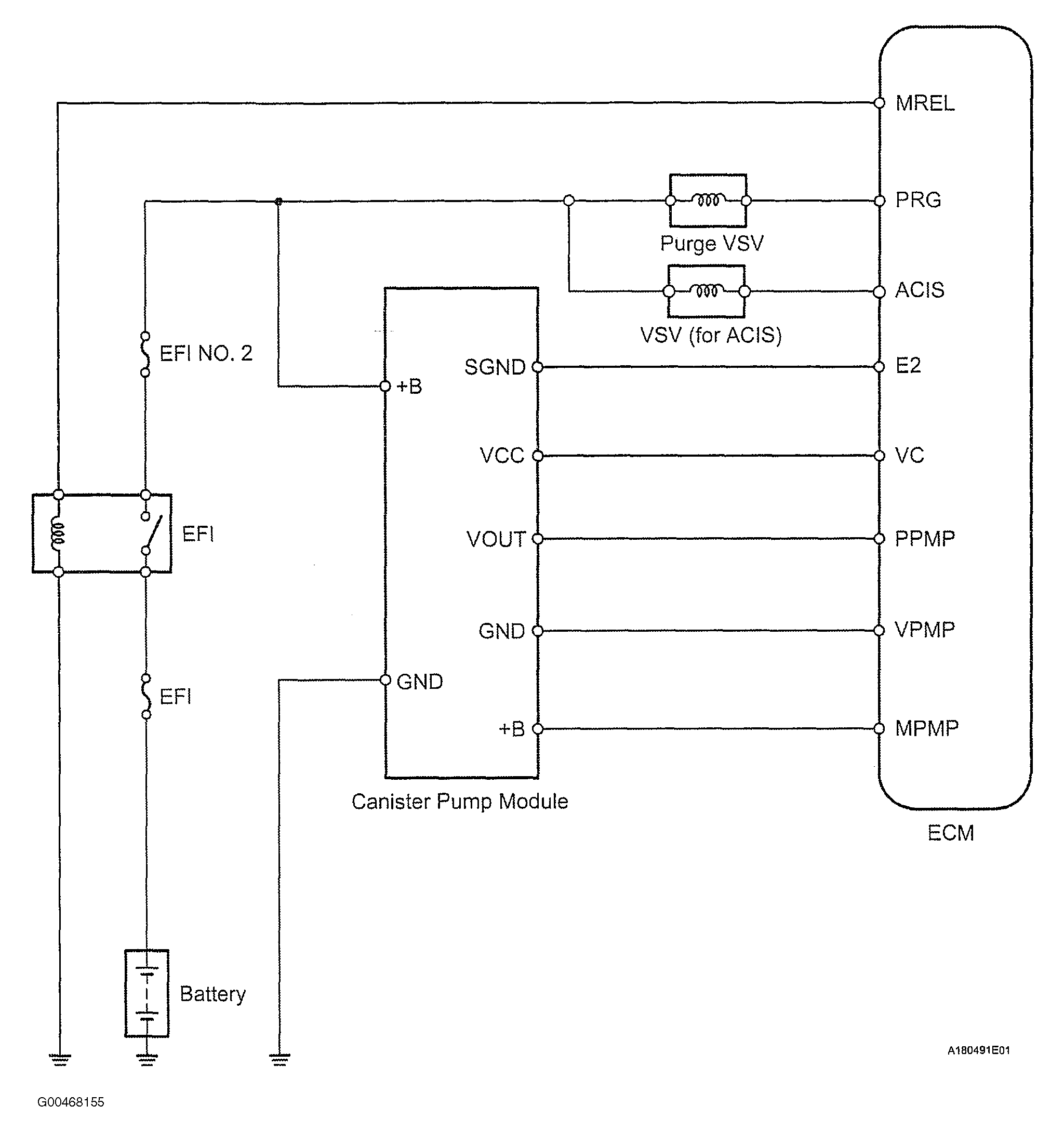

  4. EVAP SYSTEM WIRING DIAGRAM
    Fig 4: EVAP System Wiring Diagram
    G00468155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
