Power Source Circuit: Wiring Diagram

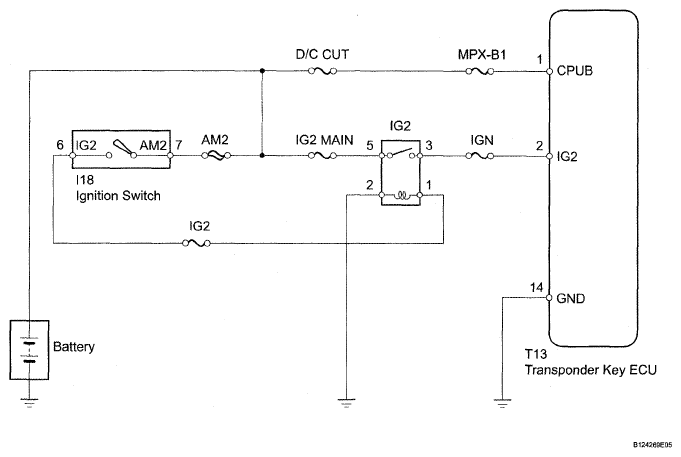

Fig 1: Power Source Circuit - Wiring Diagram
G05292521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
