Front Passenger Side Door ECU Power Source Circuit: Wiring Diagram

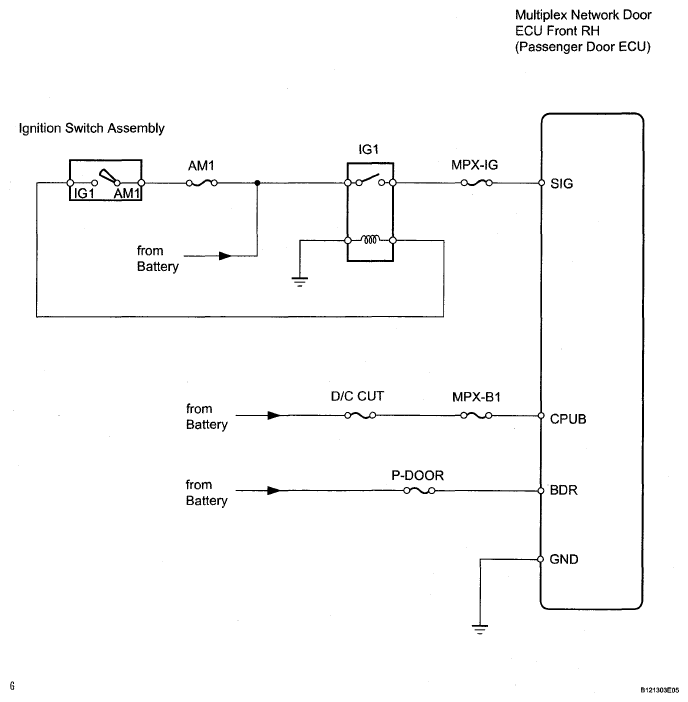

Fig 1: Front Passenger Side Door ECU Power Source - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
