Windshield Glass: Components

Fig 1: Windshield Glass Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Windshield Glass Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

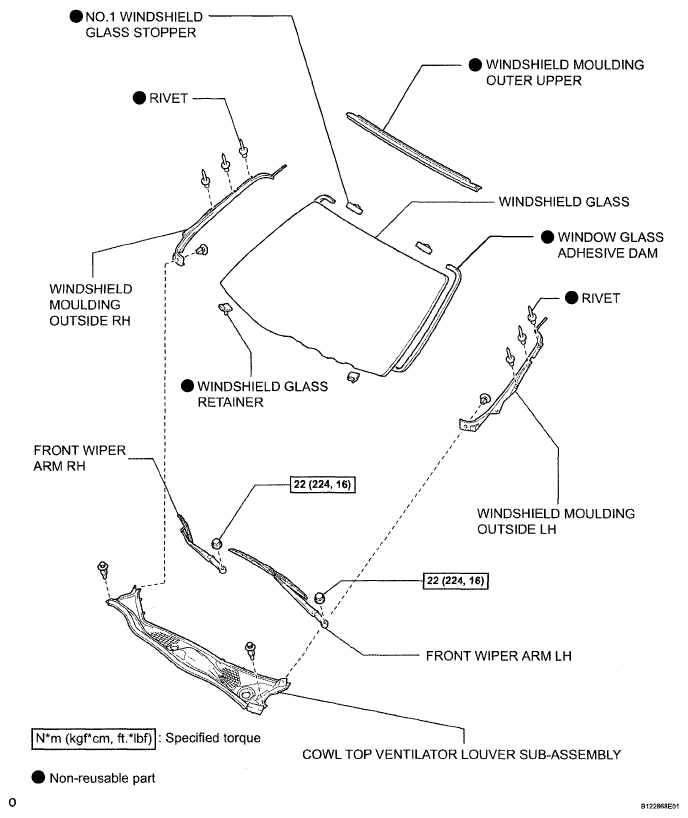

Fig 3: Identifying Windshield Glass Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
