Skid Control Ecu: Components

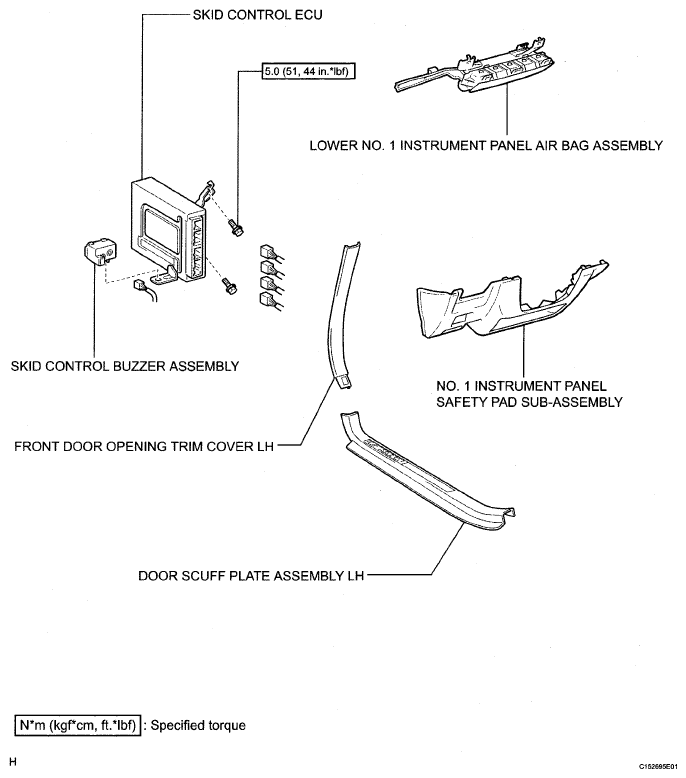

Fig 1: Skid Control ECU Replacement Components With Torque Specifications
G05290721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
