Light Auto Turn Off System: Notes

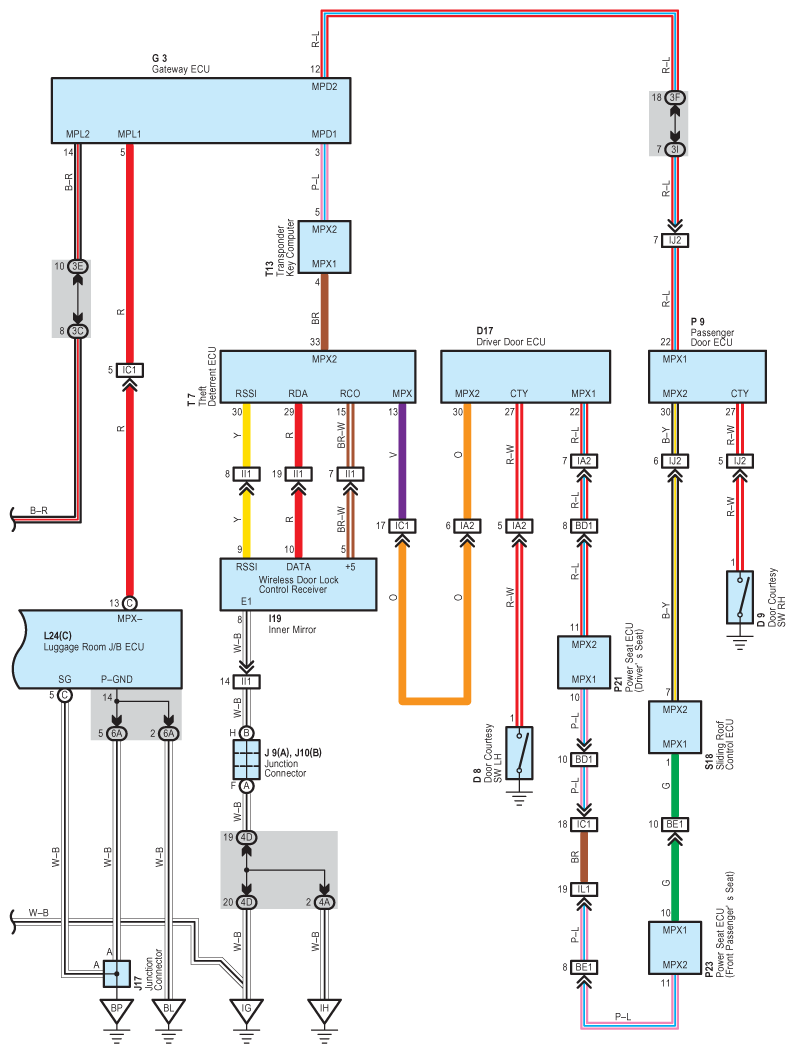

Fig 1: Light Auto Turn Off System - Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

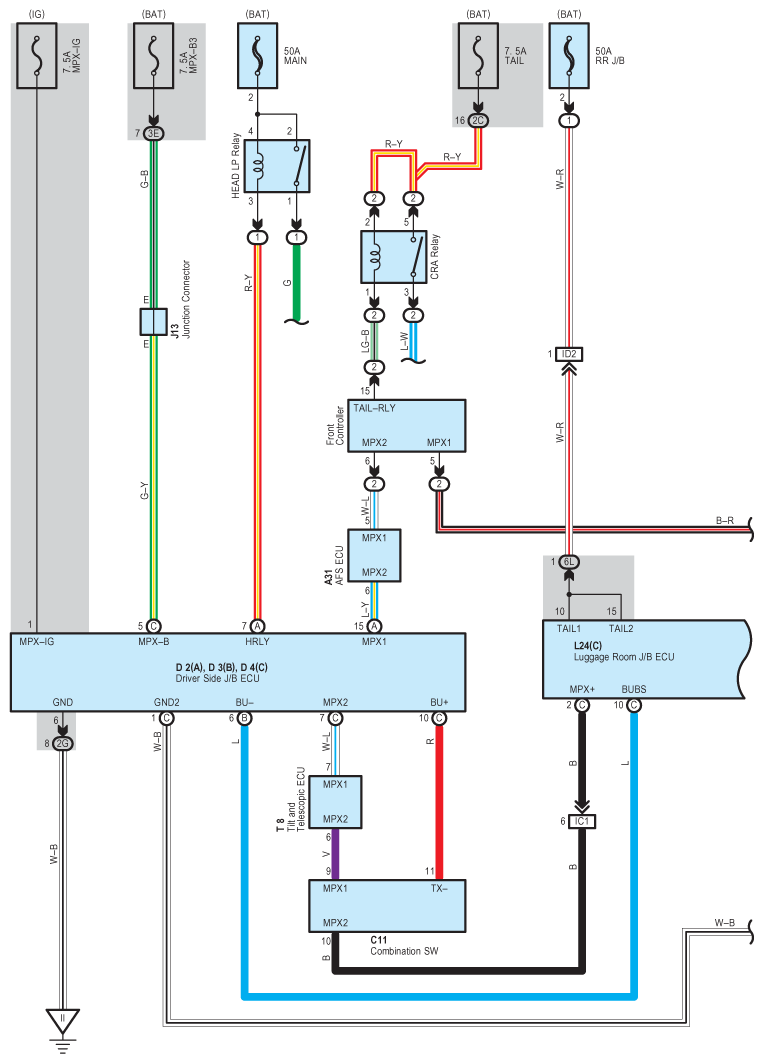

Fig 2: Light Auto Turn Off System - Circuit Diagram (2 Of 2)
