Seat Heater: Notes

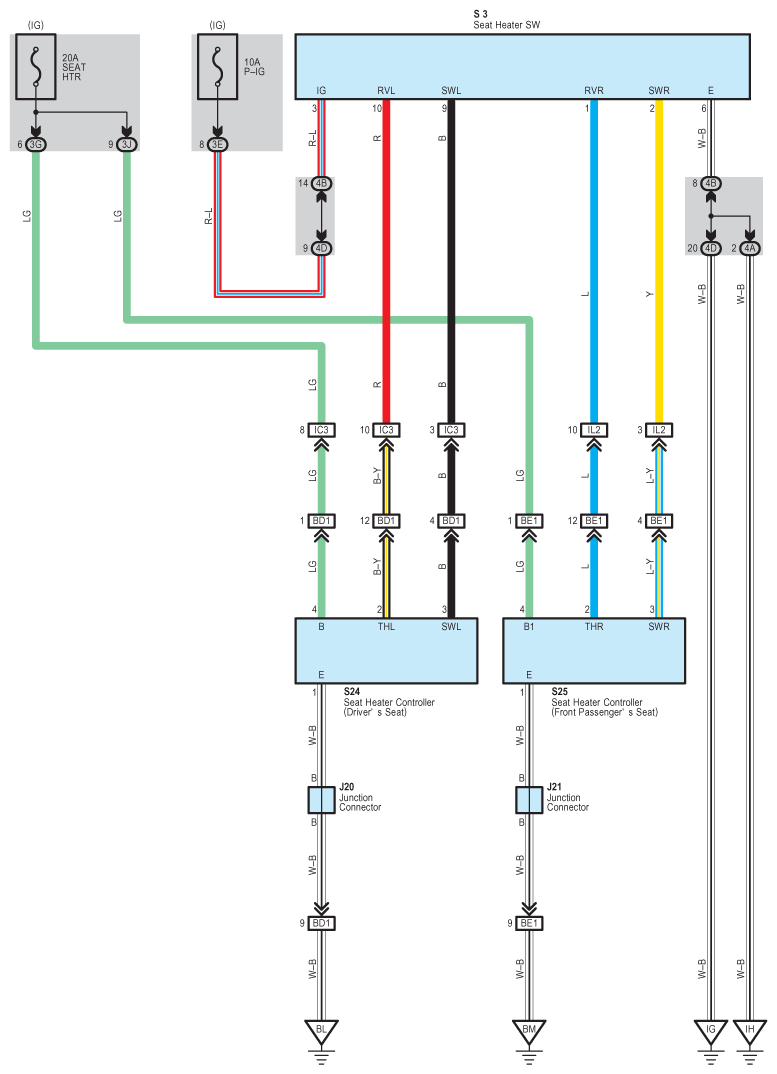

Fig 1: Seat Heater - Circuit Diagram
G07612070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
