HEATED OXYGEN SENSOR (for Sensor 1): Components

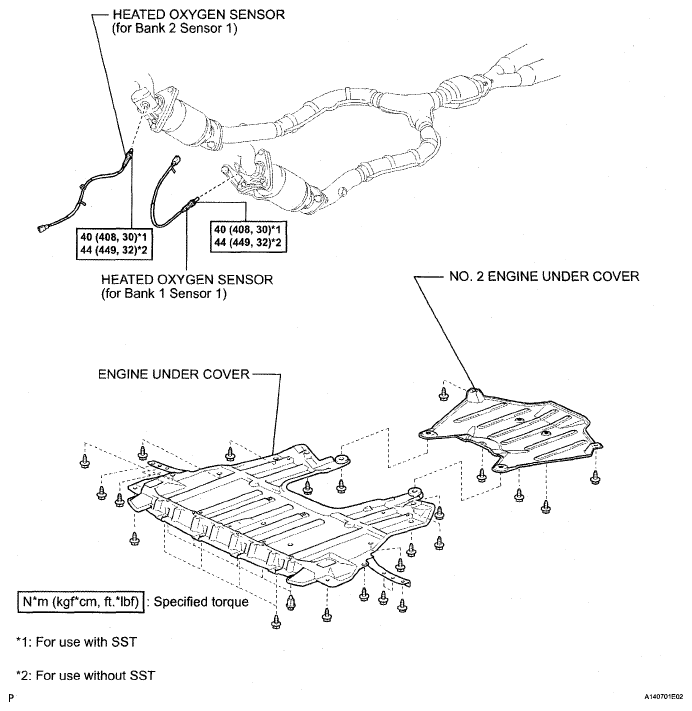

Fig 1: Heated Oxygen Sensor (For Sensor 1) Replacement Components With Torque Specifications
G05289245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
