Lexus
›
2008
›
SC 430
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System
›
SFI System
›
Fuel Pump Control Circuit
›
Wiring Diagram
Fuel Pump Control Circuit: Wiring Diagram

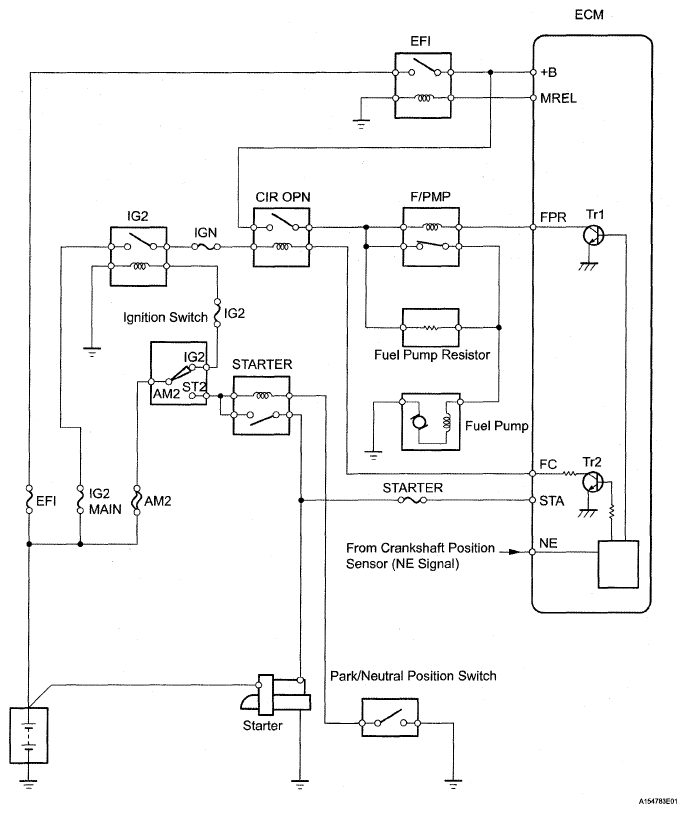

Fig 1: Fuel Pump Control Circuit - Wiring Diagram
