Rear Shock Absorber With Coil Spring: Components

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Rear Shock Absorber With Coil Spring Components (1 Of 2)

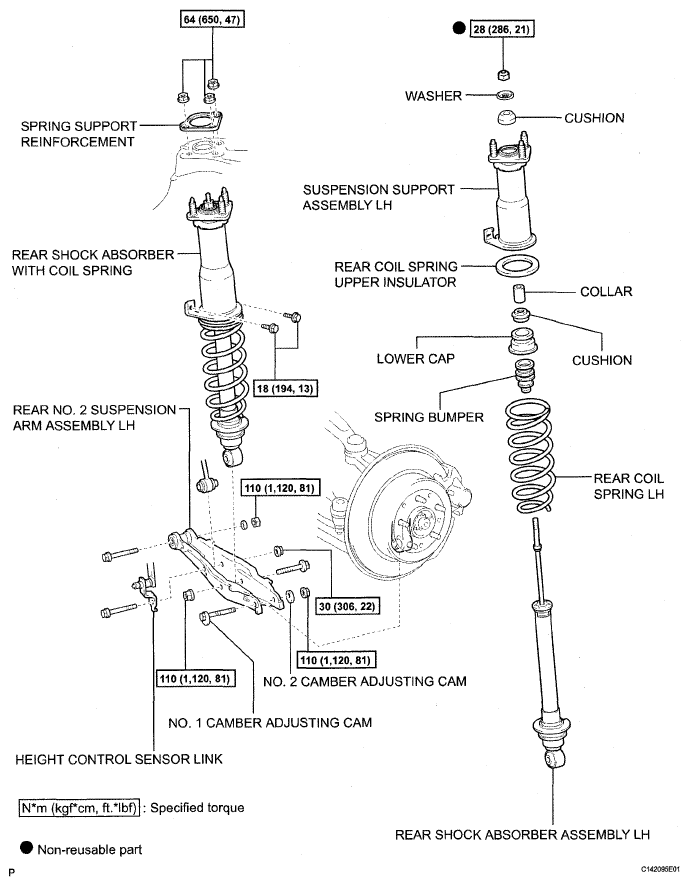

Fig 2: Rear Shock Absorber With Coil Spring Replacement Components With Torque Specifications (2 Of 2)
