Blower Unit: Installation

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL BLOWER ASSEMBLY
1. Install the blower and attach the claw.

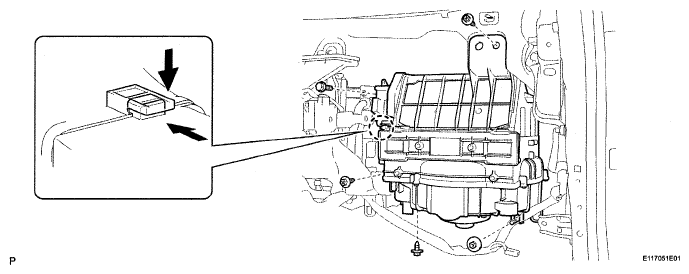

  Fig 1: Installing Blower Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 3 screws, bolt and nut.
3. Attach the claw and connect the connector.
4. Connect the connector and attach the blower to the clamp.

  Fig 2: Connecting Connector And Attach Blower To Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 AIR DUCT
1. Install the air duct and 2 screws.

  Fig 3: Identifying Air Duct Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
1. Install the instrument panel safety pad (see INSTALLATION ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
RESET RADIO RECEIVER ASSEMBLY TO SHIPMENT MODE
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
