Blower Unit: Removal

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

SET RADIO RECEIVER ASSEMBLY TO SHIPMENT MODE
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
1. Remove the instrument panel safety pad (see REMOVAL ).
REMOVE NO. 2 AIR DUCT
1. Remove the 2 screws and air duct.

  Fig 1: Identifying Air Duct Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BLOWER ASSEMBLY
1. Disconnect the connector and clamp from the blower.
2. Using a screwdriver, detach the claw and disconnect the connector.
3. Remove the 3 screws, bolt and nut.
4. Detach the claw and remove the blower.

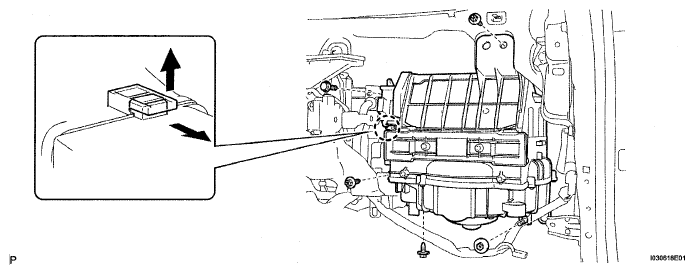

  Fig 2: Identifying Claw And Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 3: Detaching Claw And Removing Blower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
