Section 21 (Starting): Starter: Inspection

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT STARTER ASSEMBLY
NOTE: These tests must be performed within 3 to 5 seconds to prevent the coil from burning out.
1. Perform pull-in/holding test.
  1. Remove the nut and disconnect the lead wire from terminal C.
  2. Connect the battery to the magnetic switch as shown in the illustration. Then check that the clutch pinion gear moves outward.

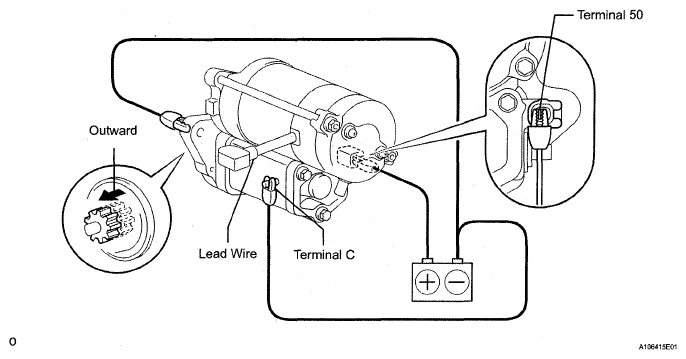

    Fig 1: Connecting Battery To Magnetic Switch
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. With the battery connected as above and the clutch pinion gear out, disconnect the negative (-) lead from terminal C. Check that the pinion gear remains out.

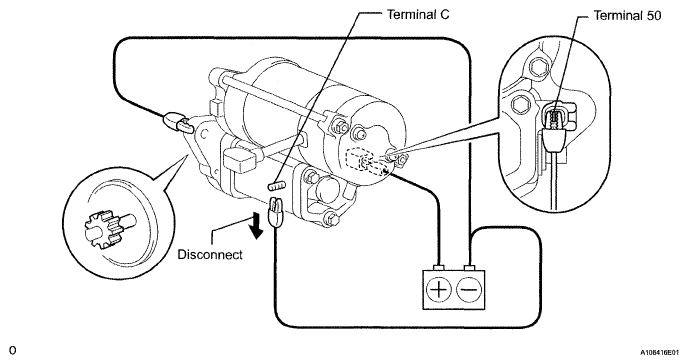

    Fig 2: Disconnecting Negative (-) Lead From Terminal C
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

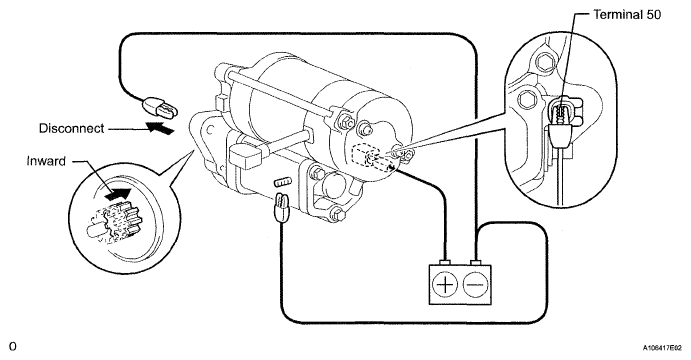

  4. Disconnect the negative (-) lead from the starter body. Check that the clutch pinion gear returns inward.

    Fig 3: Disconnecting Negative Lead Starter Body
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, repair or replace the starter assembly.
2. Perform operation test without load.
  1. Connect the lead wire to terminal C with the nut.
    Torque: 5.9 N*m (60 kgf*cm, 52 in.*lbf)
  2. Mount the starter in a vise.
  3. Connect the battery and ammeter to the starter as shown in the illustration.
  4. Check that the starter rotates smoothly and steadily while the pinion gear is moving outward. Then measure the current.
    Standard current:

    100 A or less at 11.5 V

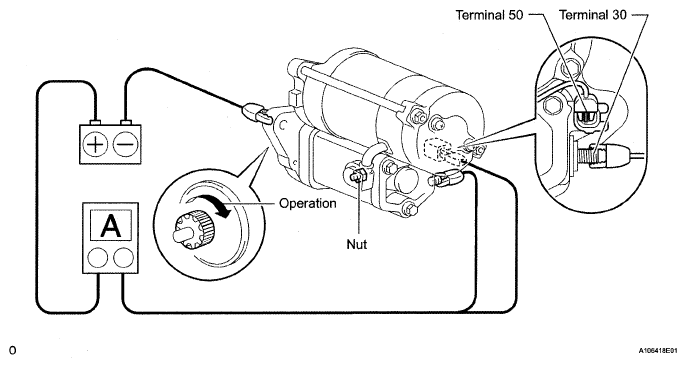

    Fig 4: Performing Operation Test Without Load
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, repair or replace the starter assembly.
INSPECT STARTER ARMATURE ASSEMBLY
1. Check the commutator surface for contamination and burns.
  If the surface is dirty or burnt, correct it with sandpaper (#400) or a lathe.
2. Check that the commutator does not have an open circuit.
  1. Measure the resistance between the segments of the commutator.
    Standard resistance:

    Below 1 Ω

    If the result is not as specified, replace the armature assembly.

    Fig 5: Measuring Resistance Between Segments Of Commutator
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check that the commutator is not grounded.
  1. Measure the resistance between the commutator and armature coil core.
    Standard resistance:

    10 kΩ or higher

    If the result is not as specified, replace the armature assembly.

    Fig 6: Measuring Resistance Between Commutator And Armature Coil Core
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Check the commutator circle runout.
  1. Place the armature on the V-blocks.
  2. Using a dial gauge, measure the circle runout.
    Maximum circle runout:

    0.05 mm (0.0020 in.)

    If the circle runout is greater than the maximum, correct it with sandpaper (#400) or replace the armature assembly.

    Fig 7: Measuring Circle Runout
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using a vernier caliper, measure the commutator diameter.
  Standard diameter:

  35.0 mm (1.378 in.)

  Minimum diameter:

  34.0 mm (1.339 in.)

  If the diameter is less than the minimum, replace the armature assembly.

  Fig 8: Measuring Commutator Diameter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Measure the undercut depth of the commutator.
  Standard depth:

  0.7 mm (0.028 in.)

  Minimum depth:

  0.2 mm (0.008 in.)

  If the undercut depth is less than the minimum, correct it with a hacksaw blade.
7. Check that the bearings rotate smoothly.
  OK:

  Rotate smoothly

  If necessary, replace the armature assembly.

  Fig 9: Measuring Undercut Depth Of Commutator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT STARTER YOKE ASSEMBLY
1. Check the field coil resistance.
  1. Using an ohmmeter, measure the resistance between the lead wire and both brushes.
    Standard resistance:

    Below 1 Ω

    If the result is not as specified, replace the starter yoke assembly.

    Fig 10: Measuring Resistance Between Lead Wire And Both Brushes
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the shunt coil resistance.
  1. Measure the resistance between the shunt coil terminals.
    Standard resistance:

    1.5 to 1.9 Ω at 20°C (68°F)

    If the result is not as specified, replace the starter yoke assembly.

    Fig 11: Measuring Resistance Between Shunt Coil Terminals
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT BRUSH
1. Using a vernier caliper, measure the length of the brushes.
  Standard brush length:

  15.0 mm (0.591 in.)

  Minimum brush length:

  9.0 mm (0.354 in.)

  If the length is less than the minimum, replace the brush holder assembly and starter yoke assembly.

  Fig 12: Measuring Length Of Brushes
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT STARTER BRUSH HOLDER ASSEMBLY
1. Check the brush insulation.
  1. Check the resistance between the positive (+) and negative (-) brush holders.
    Standard resistance:

    10 kΩ or higher

    If the result is not as specified, repair or replace the end frame assembly.

    Fig 13: Checking Resistance Between Positive (+) And Negative (-) Brush Holders
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a pull scale, measure the brush spring load.
  Standard spring load:

  21.5 to 27.5 N (2.2 to 2.8 kgf, 4.9 to 6.2 lbf)

  Minimum spring load:

  12.7 N (1.3 kgf, 2.9 lbf)

  If the spring load is less than the minimum, replace the brush springs.

  Fig 14: Measuring Brush Spring Load
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT STARTER CLUTCH SUB-ASSEMBLY
1. Check that the starter clutch can rotate clockwise, but cannot rotate counterclockwise. If the starter clutch does not operate as specified, replace it.

  Fig 15: Rotating Pinion Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT MAGNET STARTER SWITCH ASSEMBLY
1. Check that the pull-in coil does not have an open circuit.
  1. Measure the resistance between terminals 50 and C.
    Standard resistance:

    Below 1 Ω

    If the result is not as specified, replace the magnetic switch assembly.

    Fig 16: Measuring Resistance Between Terminals 50 And C
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that the hold-in coil does not have an open circuit.
  1. Measure the resistance between terminal 50 and the switch body.
    Standard resistance:

    Below 2 Ω

    If the result is not as specified, replace the magnetic switch assembly.

    Fig 17: Measuring Resistance Between Terminal 50 And Switch Body
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
