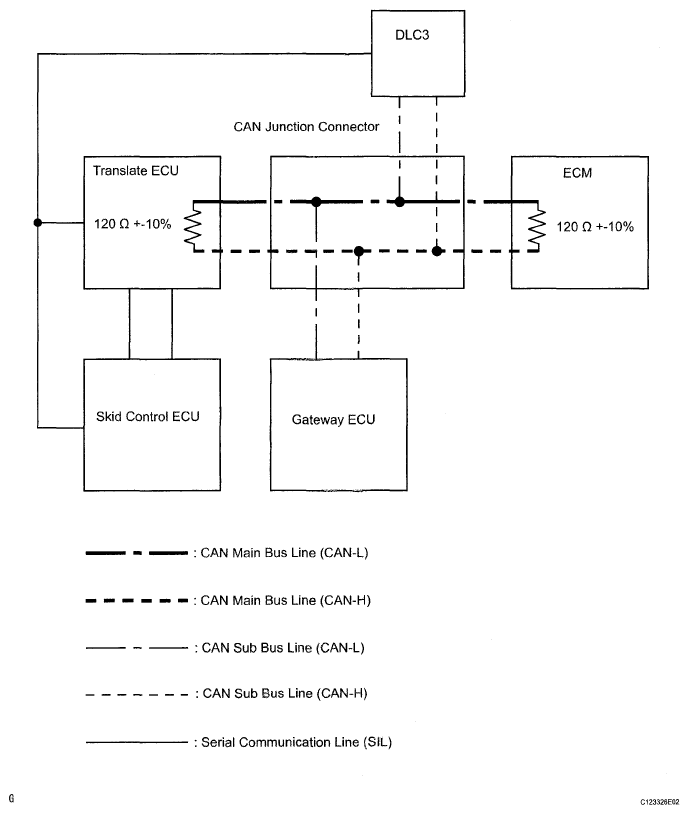

System Diagram
WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
The ECM uses the CAN communication system instead of the conventional communication line (SIL) to perform DTC communication.
