Stereo Component Amplifier: Components

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Stereo Component Amplifier Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

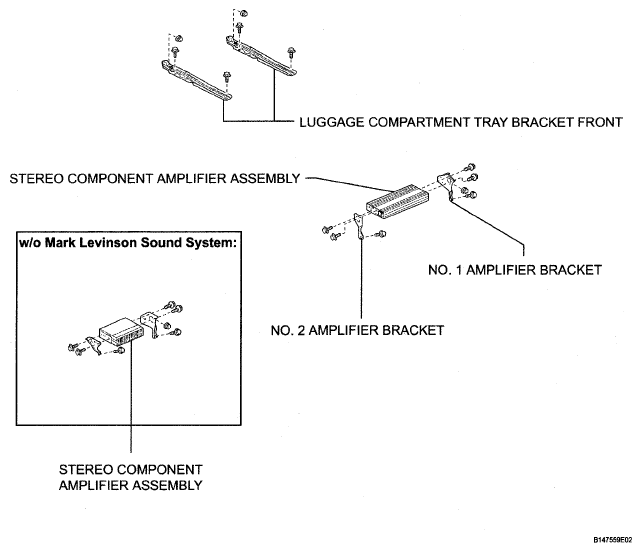

Fig 2: Identifying Stereo Component Amplifier Components (2 Of 3)

Fig 3: Identifying Stereo Component Amplifier Components (3 Of 3)
