Section 35 (Supplemental Restraint System)
›
Occupant Classification System
›
Parts Location
Parts Location
WARNING:
This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

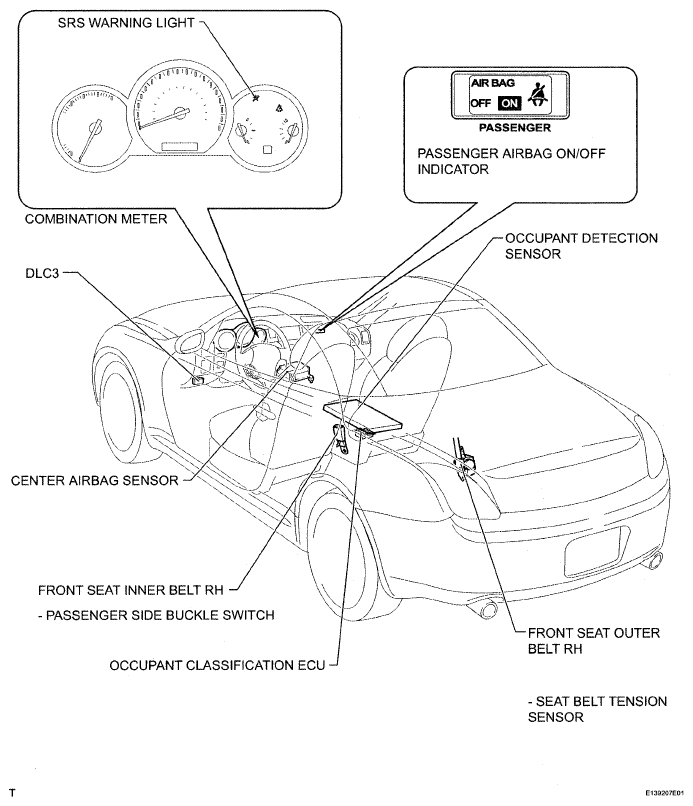

Fig 1: Identifying Occupant Classification System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
