Parts Location

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

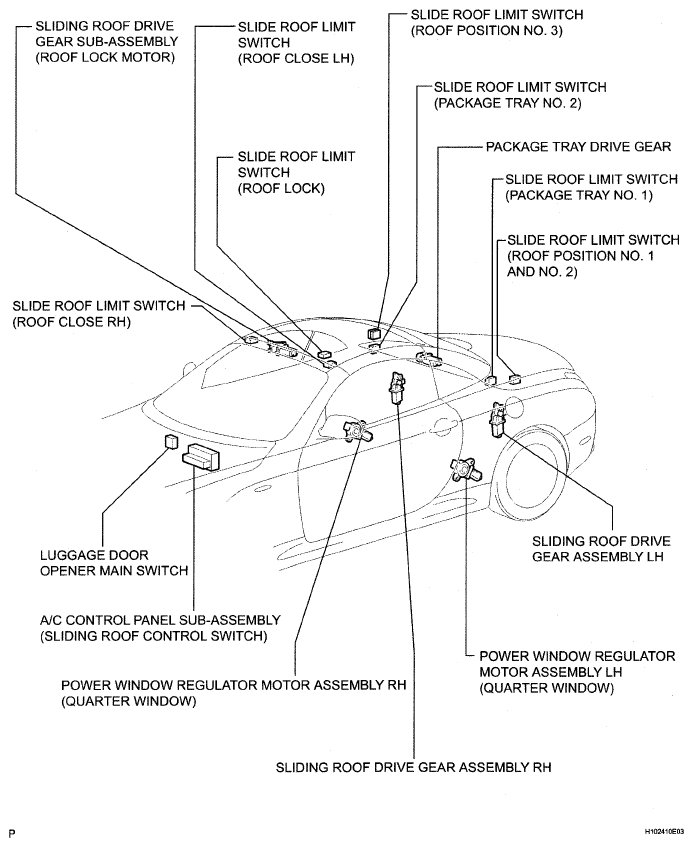

Fig 1: Identifying Retractable Hardtop System Parts Location (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

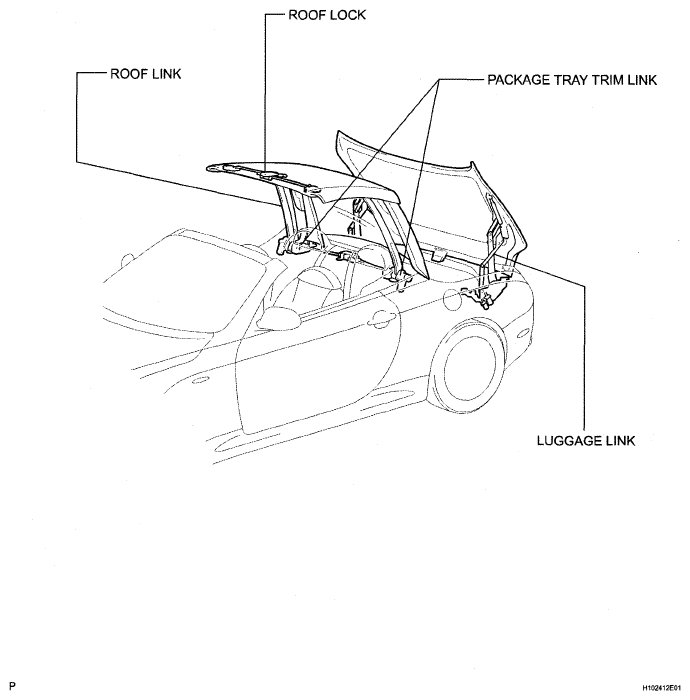

Fig 2: Identifying Retractable Hardtop System Parts Location (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

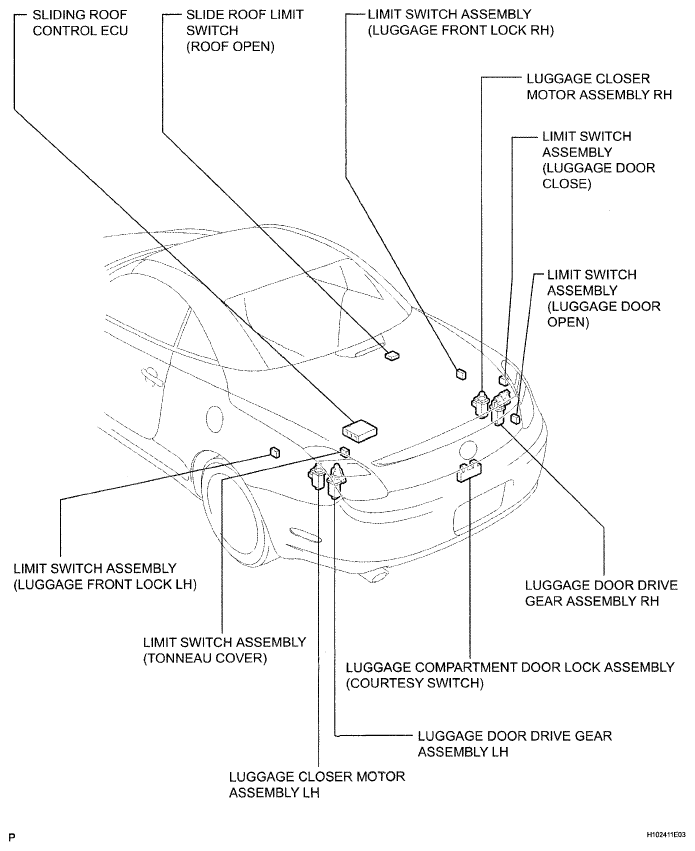

Fig 3: Identifying Retractable Hardtop System Parts Location (3 Of 4)

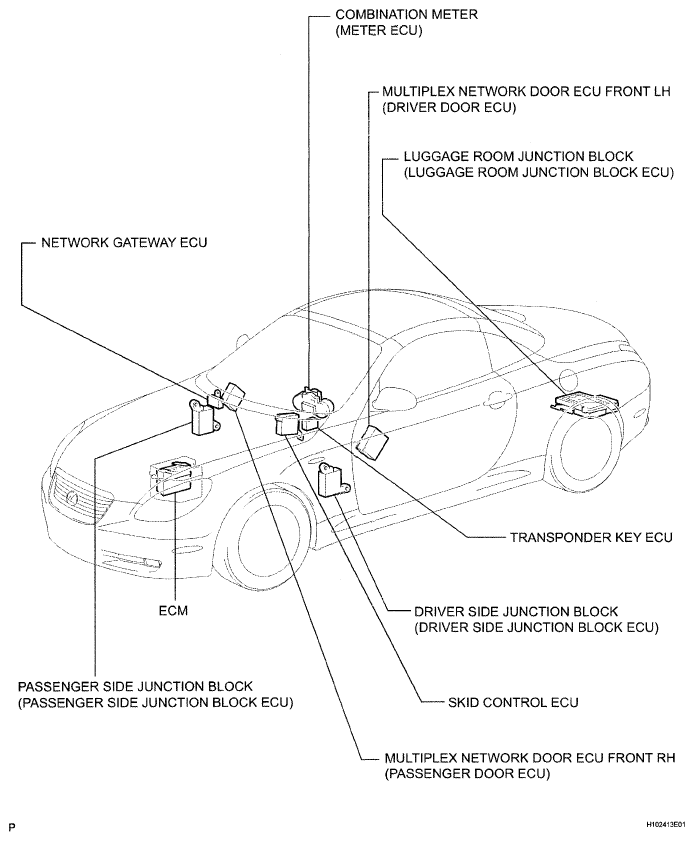

Fig 4: Identifying Retractable Hardtop System Parts Location (4 Of 4)
