Engine Assembly: Removal

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCHARGE FUEL SYSTEM PRESSURE (See  REMOVAL  )
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  3. REMOVE HOOD SUB-ASSEMBLY
    1. Remove the 4 bolts and hood sub-assembly.
  4. REMOVE V-BANK COVER
    1. Remove the 2 nuts and V-bank cover.
  5. REMOVE NO. 1 AIR CLEANER INLET (See  REMOVAL   )
  6. REMOVE INTAKE AIR CONNECTOR PIPE
    1. Disconnect the air hose and No. 1 ventilation hose.
      Fig 1: Locating Air Hose And No. 1 Ventilation Hose
      G05288940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the 2 hose clamps. Then remove the bolt and intake air connector pipe.
      Fig 2: Locating Hose Clamps
      G05288941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE AIR CLEANER ASSEMBLY
    1. Disconnect the MAF meter connector and clamp.
    2. Remove the 3 bolts and air cleaner assembly.
      Fig 3: Locating Air Cleaner Assembly Bolts
      G05288942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE ECM COVER
    1. Remove the 3 bolts and cover.
      Fig 4: Locating ECM Cover Bolts
      G05288943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE ENGINE UNDER COVER
  10. REMOVE ENGINE UNDER COVER RH
  11. REMOVE NO. 2 ENGINE UNDER COVER
  12. DRAIN ENGINE OIL
  13. DRAIN ENGINE COOLANT (See  COOLANT  )
  14. DRAIN AUTOMATIC TRANSMISSION FLUID (See  REMOVAL  )
  15. DISCONNECT NO. 1 RADIATOR HOSE (See  REMOVAL  )
  16. DISCONNECT NO. 2 RADIATOR HOSE (See  REMOVAL  )
  17. DISCONNECT NO. 1 OIL COOLER INLET TUBE (See  DISASSEMBLY  )
  18. DISCONNECT NO. 1 OIL COOLER OUTLET TUBE (See  DISASSEMBLY  )
  19. REMOVE RADIATOR ASSEMBLY (See  DISASSEMBLY  )
  20. DISCONNECT NO. 2 FUEL PIPE SUB-ASSEMBLY
    1. Using SST, disconnect the fuel pipe.

      SST 09023-38401

  21. REMOVE FAN AND GENERATOR V BELT (See  REMOVAL   )
  22. DISCONNECT ENGINE WIRE
    1. Disconnect the engine wire from the ECM box.
    2. Remove the nut, and disconnect the wire from the generator.
    3. Disconnect the 2 wires from the 2 wire clamps on the generator.
    4. Remove the 2 bolts, and disconnect the PS oil hose from the No. 1 oil pan.
    5. Remove the bolt, and disconnect the ground strap from the body.
      Fig 5: Disconnecting Fuel Pipe
      G05288944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. DISCONNECT NO. 5 AIR HOSE
  24. DISCONNECT NO. 2 FUEL VAPOR FEED HOSE
  25. DISCONNECT HEATER WATER INLET HOSE A
    1. Remove the clamp and disconnect the heater water inlet hose A.
  26. DISCONNECT HEATER WATER OUTLET HOSE A (FROM HEATER UNIT)
    1. Remove the clamp and disconnect the heater water outlet hose A.
  27. DISCONNECT VANE PUMP OIL RESERVOIR ASSEMBLY
  28. DISCONNECT VANE PUMP ASSEMBLY
    1. Disconnect the 2 PS air hoses.
    2. Remove the 2 screws and RH engine under cover.
    3. Disconnect the PS oil pressure switch connector.
    4. Remove the 2 bolts and nut, and disconnect the vane pump from the engine.
    5. Support the vane pump securely.
  29. DISCONNECT COOLER COMPRESSOR ASSEMBLY
    1. Disconnect the compressor connector.
    2. Disconnect the wire clamp from the wire bracket on the compressor.
    3. Remove the bolt, nut and stay.
    4. Remove the bolt, and disconnect the wire bracket from the compressor.
    5. Remove the bolt, and disconnect the compressor from the engine.
    6. Support the cooler compressor securely.
  30. REMOVE FRONT FLOOR BRACE CENTER
    1. Remove the 4 bolts and brace center.
      Fig 6: Locating Brace Center Bolts
      G05288945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2) (See  REMOVAL  )
  32. REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2) (See  REMOVAL  )
  33. REMOVE FRONT EXHAUST PIPE ASSEMBLY
    1. Remove the 6 nuts, 6 bolts, exhaust pipe and 3 gaskets.
      Fig 7: Locating Nuts, Bolts, Exhaust Pipe And Gaskets
      G05288946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE CENTER EXHAUST PIPE ASSEMBLY
    1. Remove the 4 nuts, 4 bolts, 2 rings, exhaust pipe and 2 gaskets.
      Fig 8: Locating Nuts, Bolts, Rings, Exhaust Pipe And Gaskets
      G05288947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET
    1. Remove the 2 bolts and bracket.
      Fig 9: Locating No. 1 Exhaust Pipe Support Bracket Bolts
      G05288948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE CATALYST CONVERTER ASSEMBLY
    1. Remove the 6 nuts, 2 converters and 2 gaskets.
  37. REMOVE FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY RH
    1. Remove the 4 bolts, 2 nuts and front suspension member brace.
      Fig 10: Locating Bolts, Nuts And Front Suspension Member Brace
      G05288949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE NO. 1 FRONT FLOOR HEAT INSULATOR
    1. Remove the 4 bolts and insulator.
      Fig 11: Locating No. 1 Front Floor Heat Insulator Bolts
      G05288950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE PARKING BRAKE CABLE HEAT INSULATOR
    Fig 12: Locating Parking Brake Cable Heat Insulator Bolts
    G05288951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 4 bolts and insulator.
  40. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (See  REMOVAL  )
  41. REMOVE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
    1. Remove the nut and disconnect the floor shift gear shifting rod.
      Fig 13: Locating Floor Shift Gear Shifting Rod Nut
      G05288952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE STEERING SLIDING YOKE SUB-ASSEMBLY
    1. Check the steering wheel at the center position.
    2. Remove the 2 bolts and sliding yoke from the steering intermediate shaft.
      Fig 14: Locating Steering Sliding Yoke Bolts
      G05288953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. DISCONNECT POWER STEERING GEAR HOUSING ASSEMBLY
    1. Remove the bolt, and disconnect the 2 PS oil tubes from the front frame.
    2. Remove the 4 bolts, and disconnect the PS gear housing from the front frame.
    3. Suspend the PS gear housing securely.
      Fig 15: Locating Power Steering Gear Housing Bolts
      G05288954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE ENGINE WITH TRANSMISSION ASSEMBLY
    1. Remove the nut and No. 1 V-bank cover bracket from the No. 2 engine hanger.
    2. Attach the engine chain hoist to the engine hangers.
      Fig 16: Attaching Engine Chain Hoist To Engine Hangers
      G05288955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 hole plugs.
    4. Remove the 4 nuts holding the engine mounting insulator to the front suspension crossmember.
    5. Remove the 4 bolts, 4 nuts and engine rear mounting member.
      Fig 17: Locating Engine Mounting Insulator Nuts
      G05288956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Lift the engine out of the vehicle slowly and carefully.
      Fig 18: Lifting Engine Out Of Vehicle
      G05288957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Make sure the engine is clear of all wiring, houses and cables.

    7. Place the engine and transmission assembly onto a stand.
  45. REMOVE OIL COOLER TUBE
    1. Remove the 3 bolts and 3 clamps.

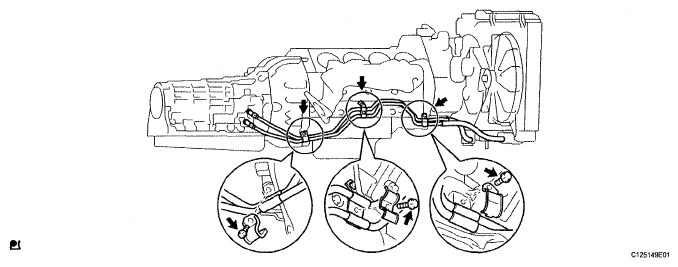

      Fig 19: Locating Oil Cooler Tube Bolts And Clamps
      G05288958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the union nut and disconnect the oil cooler inlet tube.
      Fig 20: Locating Oil Cooler Outlet Tube Union Nut
      G05288959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Loosen the union nut and disconnect the oil cooler outlet tube.
  46. DISCONNECT ENGINE WIRE
    1. Disconnect the engine wire from the transmission.
      1. Disconnect the VSV connector.
      2. Disconnect the engine wire from the 3 wire clamps.
      3. Disconnect the oil level sensor connector.
        Fig 21: Locating Oil Cooler Inlet Tube Union Nut
        G05288960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. DISCONNECT WIRE HARNESS
    1. Remove the 5 bolts and wire harness clamps.
    2. Disconnect the park/neutral position switch connector.
    3. Disconnect the transmission wire connector.
    4. Disconnect the 2 speed sensor connectors.
    5. Disconnect the wire harness from the automatic transmission.

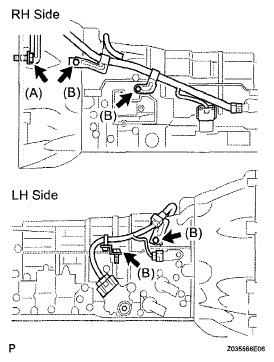

      Fig 22: Locating Bolts And Wire Harness Clamps
      G05288961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE FLYWHEEL HOUSING UNDER COVER
    1. Remove the 2 bolts and flywheel housing under cover.
      Fig 23: Locating Flywheel Housing Under Cover And Bolts
      G05288962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY
    1. Turn the crankshaft damper bolt to gain access to each bolt.
    2. Hold the crankshaft pulley bolt with a wrench and remove the 6 bolts.
      Fig 24: Locating Crankshaft Damper Bolt
      G05288963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 9 bolts.
    4. Remove the transmission together with the torque converter clutch from the engine.
  50. REMOVE DRIVE PLATE & RING GEAR SUB-ASSEMBLY
    1. Remove the 8 bolts, rear spacer, ring gear and front spacer.
      Fig 25: Locating Transmission Assembly Bolts
      G05288964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. INSTALL ENGINE STAND
  52. REMOVE THROTTLE BODY ASSEMBLY
    1. Disconnect the connector and wire.
    2. Disconnect the water bypass hose.
    3. Remove the 2 bolts, 2 nuts, throttle body and gasket.
  53. REMOVE INTAKE MANIFOLD ASSEMBLY
    1. Disconnect the purge VSV connector.
    2. Disconnect the purge hose from the purge VSV.
    3. Remove the bolt, and disconnect the purge VSV from the upper intake manifold.
    4. Remove the bolt and No. 2 V-bank cover bracket.
    5. Remove the bolt and No. 3 V-bank cover bracket.
      Fig 26: Locating Purge VSV Connector Bolts Location
      G05288965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disconnect the ACIS VSV connector.
    7. Remove the bolt and No. 1 V-bank cover bracket.
    8. Remove the bolt and No. 4 V-bank cover bracket.
      Fig 27: Locating ACIS VSV Connector
      G05288966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Remove the 4 bolts, and disconnect the engine wire protector (LH side) from the upper intake manifold and camshaft bearing cap.
    10. Disconnect the 2 wire clamps on the engine wire (RH side) from the brackets on the RH delivery pipe.
    11. Remove the 2 bolts, and disconnect the engine wire protector (rear side) from the rear water bypass joint and RH cylinder head.

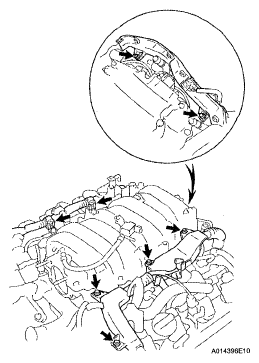

      Fig 28: Locating Engine Wire Protector
      G05288967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. Disconnect the 8 injector connectors.
    13. Remove the 6 bolts, 4 nuts, intake manifold and 2 gaskets.
      Fig 29: Locating Intake Manifold, Nuts And Bolts
      G05288968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. INSPECT INTAKE MANIFOLD ASSEMBLY
    1. Upper intake manifold:

      Using a precision straightedge and feeler gauge, measure the surface contacting the cylinder head for warpage.

      Maximum warpage: 0.15 mm (0.0059 in.)

      If the warpage is greater than the maximum, replace the manifold.

      Fig 30: Inspecting Intake Manifold Assembly
      G05288969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lower intake manifold:
      Fig 31: Identifying Intake Manifold Side
      G05288970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using a precision straightedge and feeler gauge, measure the surface contacting the cylinder head for warpage.

      Maximum warpage: 0.15 mm (0.0059 in.)

      If the warpage is greater than the maximum, replace the manifold.

  55. REMOVE STARTER ASSEMBLY (See  DISASSEMBLY  )
  56. REMOVE GENERATOR ASSEMBLY (See  REMOVAL  )
  57. REMOVE NO. 3 TIMING BELT COVER SUB-ASSEMBLY RH (See  REMOVAL   )
  58. REMOVE NO. 3 TIMING BELT COVER SUB-ASSEMBLY LH (See  REMOVAL   )
  59. REMOVE WATER INLET HOUSING (See  REMOVAL  )
  60. REMOVE FRONT WATER BYPASS JOINT
    1. Disconnect the ECT sensor connector.
    2. Remove the 4 nuts, water bypass joint and 2 gaskets.
      Fig 32: Locating ECT Sensor Connector And Bolts
      G05288971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  61. REMOVE REAR WATER BYPASS JOINT
    1. Disconnect the heater inlet hose from the water bypass joint.
    2. Remove the 4 nuts, water bypass joint and 2 gaskets.
  62. REMOVE WATER BYPASS PIPE SUB-ASSEMBLY
    1. Disconnect the heater outlet hose from the water bypass pipe.
    2. Disconnect the wire clamp (for knock sensor 1,2) from the bracket of the water bypass pipe.
    3. Remove the bolt.
    4. Pull out the water bypass pipe from the water pump.
    5. Remove the O-ring from the water bypass pipe.
      Fig 33: Locating Water Bypass Pipe Sub-Assembly
      G05288972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  63. REMOVE OIL DIPSTICK AND GUIDE (See  REMOVAL  )
  64. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY RH
    1. Disconnect the sensor connector.
    2. Remove the bolt and oil control valve.
  65. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY LH
    1. Disconnect the sensor connector.
    2. Remove the bolt and oil control valve.
  66. REMOVE CAMSHAFT POSITION SENSOR
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.
  67. REMOVE WT SENSOR
    1. Disconnect the 2 sensor connectors.
    2. Remove the 2 bolts and 2 sensors.
  68. REMOVE KNOCK SENSOR
    Fig 34: Removing Knock Sensor
    G05288973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the 2 sensor connectors.
    2. Remove the 2 nuts and 2 knock sensors.
  69. REMOVE NO. 1 ENGINE HANGER
    1. Remove the 2 bolts and engine hanger.
  70. REMOVE NO. 2 ENGINE HANGER
    1. Remove the 2 bolts and engine hanger.
  71. REMOVE IGNITION COIL
    1. Remove the 8 bolts and 8 ignition coils.
  72. REMOVE OIL FILTER BRACKET SUB-ASSEMBLY (See  REMOVAL  )
  73. REMOVE CRANKSHAFT POSITION SENSOR (See  REMOVAL  )
  74. REMOVE ENGINE OIL LEVEL SENSOR (See  REMOVAL  )
  75. REMOVE ENGINE WIRE
  76. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
  77. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH
    1. Remove the 8 nuts, exhaust manifold and gasket.
      Fig 35: Locating Exhaust Manifold And Nuts
      G05288974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  78. INSPECT EXHAUST MANIFOLD SUB-ASSEMBLY RH
    Fig 36: Inspecting Exhaust Manifold Sub-Assembly RH
    G05288975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a precision straightedge and feeler gauge, measure the surface contacting the cylinder head for warpage.

      Maximum warpage: 0.50 mm (0.0197 in.)

      If the warpage is greater than the maximum, replace the manifold.

  79. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 4 bolts and heat insulator.
  80. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH
    1. Remove the 8 nuts, exhaust manifold and gasket.
      Fig 37: Locating Exhaust Manifold Sub-Assembly LH And Nuts
      G05288976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  81. INSPECT EXHAUST MANIFOLD SUB-ASSEMBLY LH
    Fig 38: Inspecting Exhaust Manifold Sub-Assembly LH
    G05288977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a precision straightedge and feeler gauge, measure the surface contacting the cylinder head for warpage.

      Maximum warpage: 0.50 mm (0.0197 in.)

      If the warpage is greater than the maximum, replace the manifold.

  82. REMOVE NO. 2 WIRING HARNESS HEAT INSULATOR
  83. REMOVE NO. 1 ENGINE MOUNTING BRACKET FRONT RH
    1. Remove the 4 bolts and mounting bracket.
  84. REMOVE NO. 1 ENGINE MOUNTING BRACKET FRONT LH
    1. Remove the 4 bolts and mounting bracket.
About FixVault
