Timing Belt: Components
WARNING:
This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

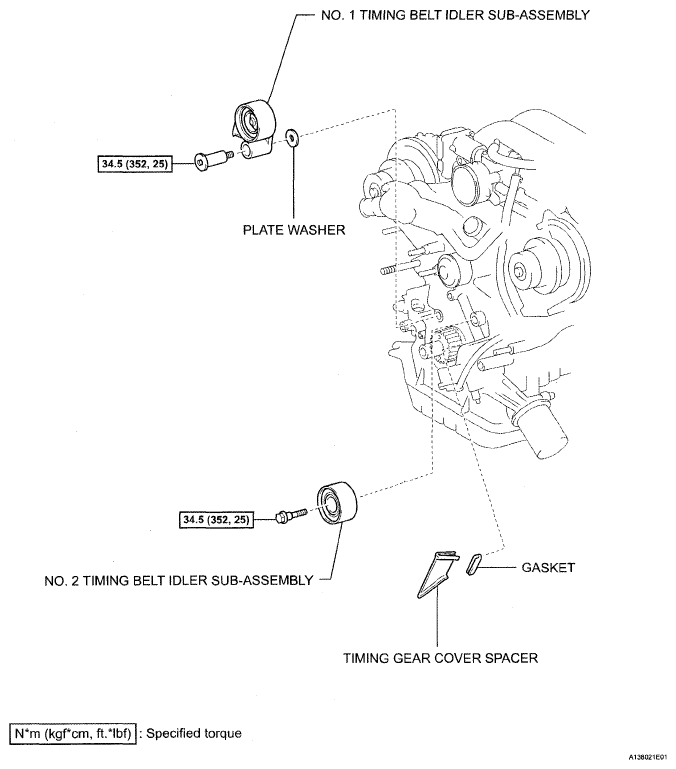

Fig 1: Timing Belt Replacement Components With Torque Specifications (1 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

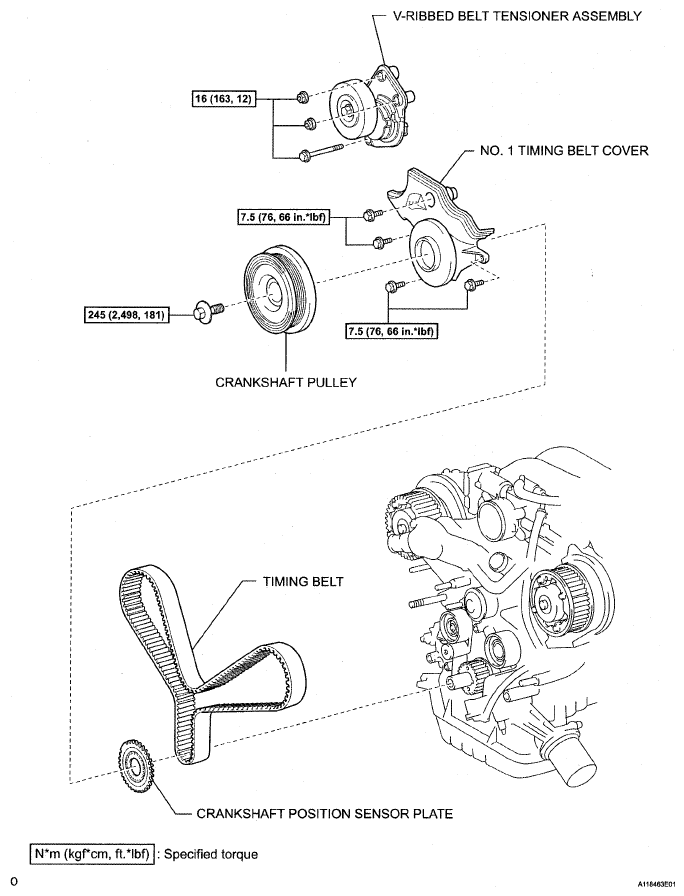

Fig 2: Timing Belt Replacement Components With Torque Specifications (2 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

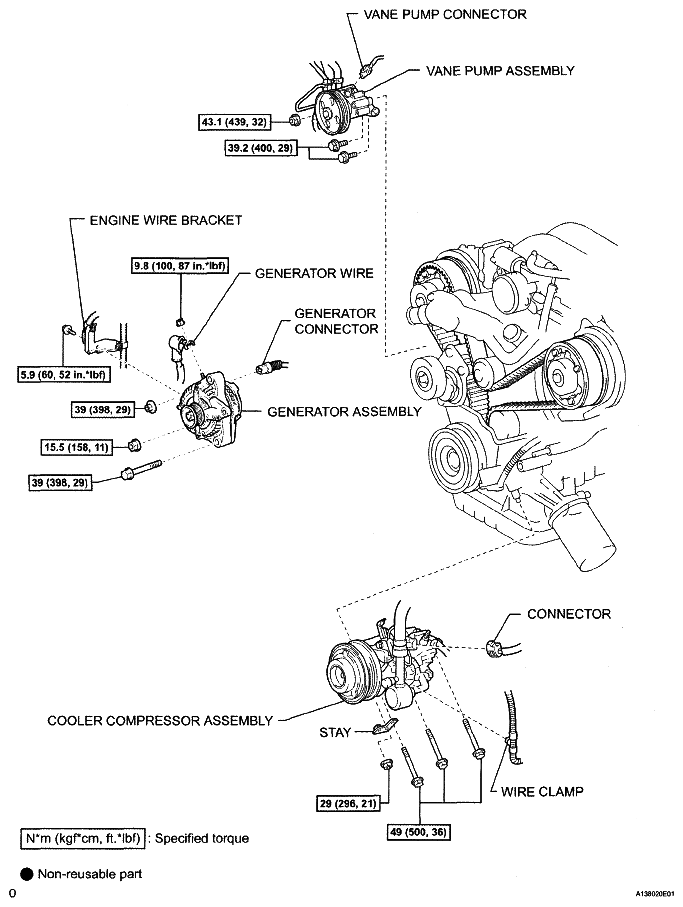

Fig 3: Timing Belt Replacement Components With Torque Specifications (3 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

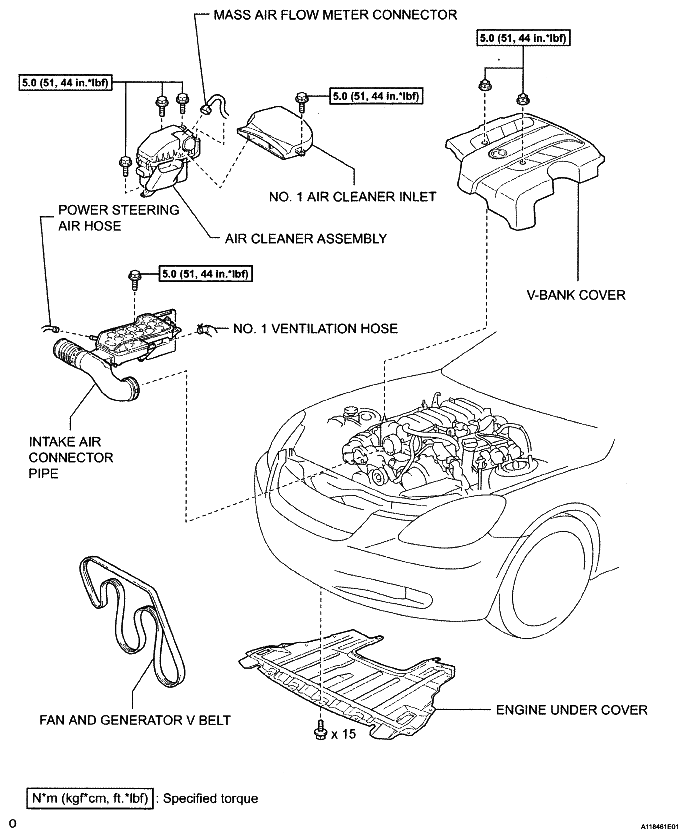

Fig 4: Timing Belt Replacement Components With Torque Specifications (4 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

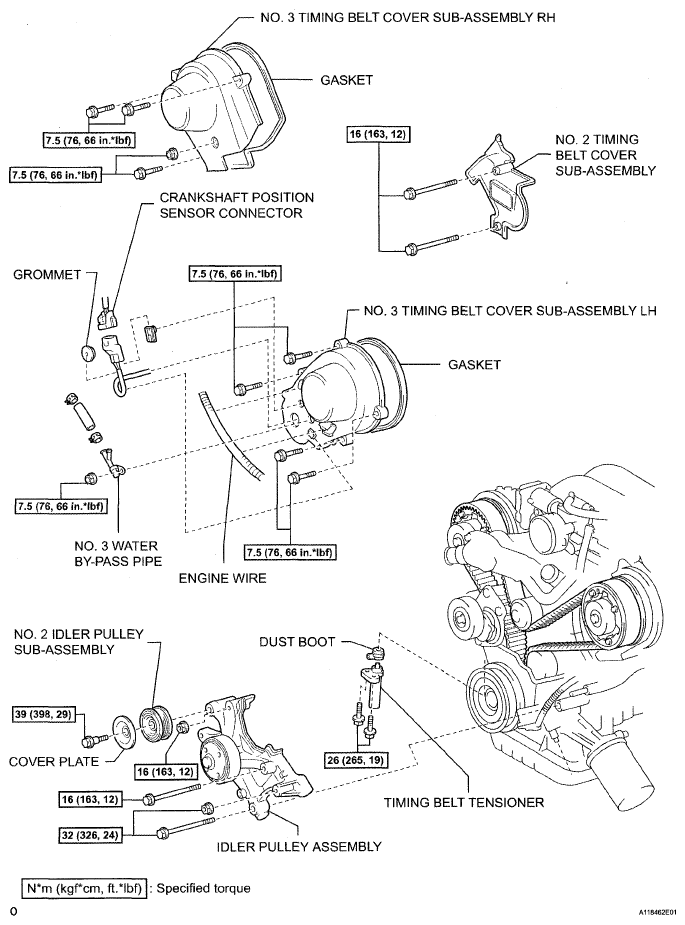

Fig 5: Timing Belt Replacement Components With Torque Specifications (5 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

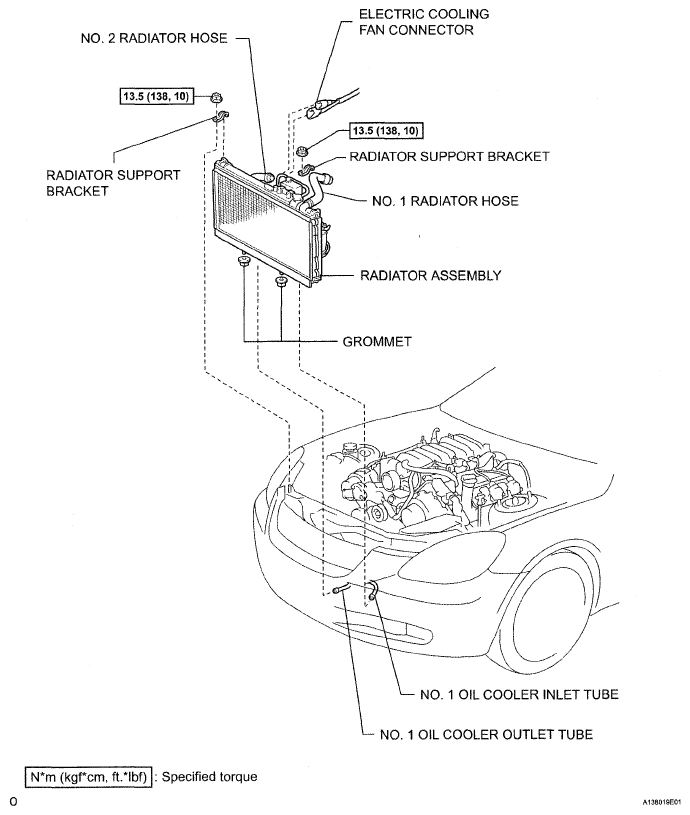

Fig 6: Timing Belt Replacement Components With Torque Specifications (6 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
