Clutch Drum And Input Shaft Assembly: Disassembly

  1. FIX CLUTCH DRUM AND INPUT SHAFT
    1. Place the oil pump onto the torque converter clutch, and then place the clutch drum and input shaft onto the oil pump.
      Fig 1: Identifying Torque Converter Clutch And Oil Pump
      G05290059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REVERSE CLUTCH HUB SUB-ASSEMBLY
    1. Using a screwdriver, remove the snap ring from the clutch drum and input shaft.
      Fig 2: Removing Snap Ring
      G04963696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the reverse clutch hub with the reverse clutch reaction sleeve, clutch cushion plate, reverse clutch flange, 5 rear clutch discs and 4 clutch plates from the forward clutch hub.
      Fig 3: Identifying Reverse Clutch Hub Sub-Assembly
      G04963697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REVERSE CLUTCH REACTION SLEEVE
    1. Remove the reverse clutch reaction sleeve from the reverse clutch hub.
      Fig 4: Identifying Reverse Clutch Reaction Sleeve
      G04963698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR CLUTCH DISC
    1. Remove the cushion plate, flange, 5 discs and 4 plates from the reverse clutch hub.
  5. INSPECT REAR CLUTCH DISC (See  INSPECTION   )
  6. INSPECT REVERSE CLUTCH HUB SUB-ASSEMBLY (See  INSPECTION   )
    Fig 5: Identifying Cushion Plate, Flange, Discs And Plates
    G05290063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FORWARD CLUTCH HUB SUB-ASSEMBLY
    1. Remove the forward clutch hub and thrust washer from the clutch drum assembly.
      Fig 6: Identifying Forward Clutch Hub And Thrust Washer
      G05290064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 thrust needle roller bearings and No. 3 thrust bearing race from the forward clutch hub.
  8. INSPECT FORWARD CLUTCH HUB SUB-ASSEMBLY (See  INSPECTION   )
    Fig 7: Identifying Thrust Needle Roller Bearings And Thrust Bearing Race
    G05290065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE COAST CLUTCH HUB SUB-ASSEMBLY
    1. Remove the coast clutch hub from the clutch drum.
  10. INSPECT UNDERDRIVE 1-WAY CLUTCH ASSEMBLY (See  INSPECTION   )
    Fig 8: Identifying Coast Clutch Hub
    G05290066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE UNDERDRIVE 1-WAY CLUTCH ASSEMBLY
    1. Remove the underdrive 1-way clutch, clutch hub thrust washer and thrust bearing race from the coast clutch hub.
      Fig 9: Identifying Thrust Washer And Thrust Bearing Race
      G05290067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FORWARD CLUTCH HUB CLUTCH DISC
    1. Using a screwdriver, remove the hole snap ring.
      Fig 10: Removing Hole Snap Ring
      G05290068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the flange, 4 discs, 4 plates and cushion plate from the input shaft.
  13. INSPECT FORWARD CLUTCH HUB CLUTCH DISC (See  INSPECTION   )
    Fig 11: Identifying Flange, Cushion Plate, Discs And Plates
    G05290069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE COAST CLUTCH DISC
    1. Using a screwdriver, remove the hole snap ring.
      Fig 12: Removing Hole Snap Ring
      G05290070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the flange, 3 discs and 3 plates from the input shaft.
  15. INSPECT COAST CLUTCH DISC (See  INSPECTION   )
    Fig 13: Identifying Flange, Discs And Plates
    G05290071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE INPUT SHAFT
    1. Remove the thrust needle roller bearing from the input shaft.
      Fig 14: Identifying Thrust Needle Roller Bearing
      G05290072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the input shaft from the clutch drum.
      Fig 15: Identifying Input Shaft And Clutch Drum
      G05290073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the thrust needle roller bearing and thrust bearing race from the clutch drum.
      Fig 16: Identifying Thrust Needle Roller Bearing And Thrust Bearing Race
      G05290074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE INPUT SHAFT OIL SEAL RING
    1. Remove the 4 oil seal rings from the input shaft.
      Fig 17: Identifying Oil Seal Rings
      G05290075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 1 CLUTCH BALANCER
    1. Place SST on the clutch balancer, and compress the return spring with a press.

      SST 09350-30020 (09350-07040)

    2. Using SST, remove the snap ring.

      SST 09350-30020 (09350-07070)

      Fig 18: Removing Snap Ring
      G05290076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the clutch balancer and forward clutch return spring from the input shaft.
      Fig 19: Identifying Clutch Balancer And Forward Clutch Return Spring
      G05290077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the O-ring from the clutch balancer.
  19. INSPECT FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY (See  INSPECTION   )
    Fig 20: Identifying Clutch Balancer O-Ring
    G04963711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE FORWARD CLUTCH PISTON SUB-ASSEMBLY
    1. Holding the forward clutch piston by hand, apply compressed air (392 kPa, 4.0 kgf/cm2 , 57 psi) to the input shaft to remove the forward clutch piston.
      Fig 21: Applying Compressed Air To Input Shaft
      G05290079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the coast clutch piston from the forward clutch piston.
    3. Remove the O-ring from the forward clutch piston.
      Fig 22: Identifying Coast Clutch Piston
      G05290080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE REVERSE CLUTCH FLANGE
    1. Remove the reverse clutch flange from the clutch drum.
      Fig 23: Identifying Reverse Clutch Flange
      G04963714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE DIRECT CLUTCH DISC
    1. Using a screwdriver, remove the 2 hole snap rings from the clutch drum assembly.
      Fig 24: Removing Hole Snap Rings
      G04963715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the flange, 5 discs and 6 plates from the clutch drum.
  23. INSPECT DIRECT CLUTCH DISC (See  INSPECTION   )

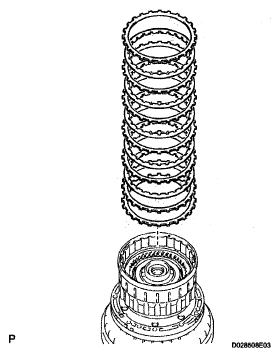

    Fig 25: Identifying Reverse Clutch Flange, Plates And Discs
    G05110415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE NO. 3 CLUTCH BALANCER
    1. Place SST on the clutch balancer, and compress the return spring with a press.

      SST 09387-00070

    2. Using SST, remove the snap ring.

      SST 09350-30020 (09350-07070)

    3. Remove the clutch balancer.
      Fig 26: Installing No. 3 Clutch Balancer
      G04963717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE REVERSE CLUTCH RETURN SPRING SUB-ASSEMBLY
    1. Remove the reverse clutch return spring and O-ring from the reverse clutch piston.
  26. INSPECT REVERSE CLUTCH RETURN SPRING SUB-ASSEMBLY (See  INSPECTION   )
    Fig 27: Identifying Reverse Clutch Return Spring And O-Ring
    G04963746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE REVERSE CLUTCH PISTON SUB-ASSEMBLY
    1. Remove the reverse clutch piston from the clutch drum.
      Fig 28: Identifying Reverse Clutch Piston And Clutch Drum
      G04963719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the reverse clutch piston.
      Fig 29: Identifying Reverse Clutch Piston O-Ring
      G04963720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the clutch drum.
      Fig 30: Identifying Clutch Drum O-Ring
      G05839563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE DIRECT CLUTCH PISTON SUB-ASSEMBLY
    1. Place SST on the direct clutch piston, and compress the return spring with a press.

      SST 09320-89010

    2. Using SST, remove the snap ring.

      SST 09350-30020 (09350-07070)

      Fig 31: Removing Snap Ring
      G04963722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using 2 screwdrivers, remove the direct clutch piston from the clutch drum.
      Fig 32: Removing Direct Clutch Piston Sub-Assembly
      G04963723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the No. 2 clutch balancer and direct clutch return spring from the direct clutch piston.
      Fig 33: Identifying No. 2 Clutch Balancer Direct Clutch Return Spring
      G04963725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 O-rings from the direct clutch piston.
  29. INSPECT DIRECT CLUTCH RETURN SPRING SUB-ASSEMBLY (See  INSPECTION   )
    Fig 34: Identifying Direct Clutch Piston O-Rings
    G05839567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
