Intake Air Control System (Inspection)
›
Intake Air Control System
›
System Diagram
›
System Diagram
System Diagram

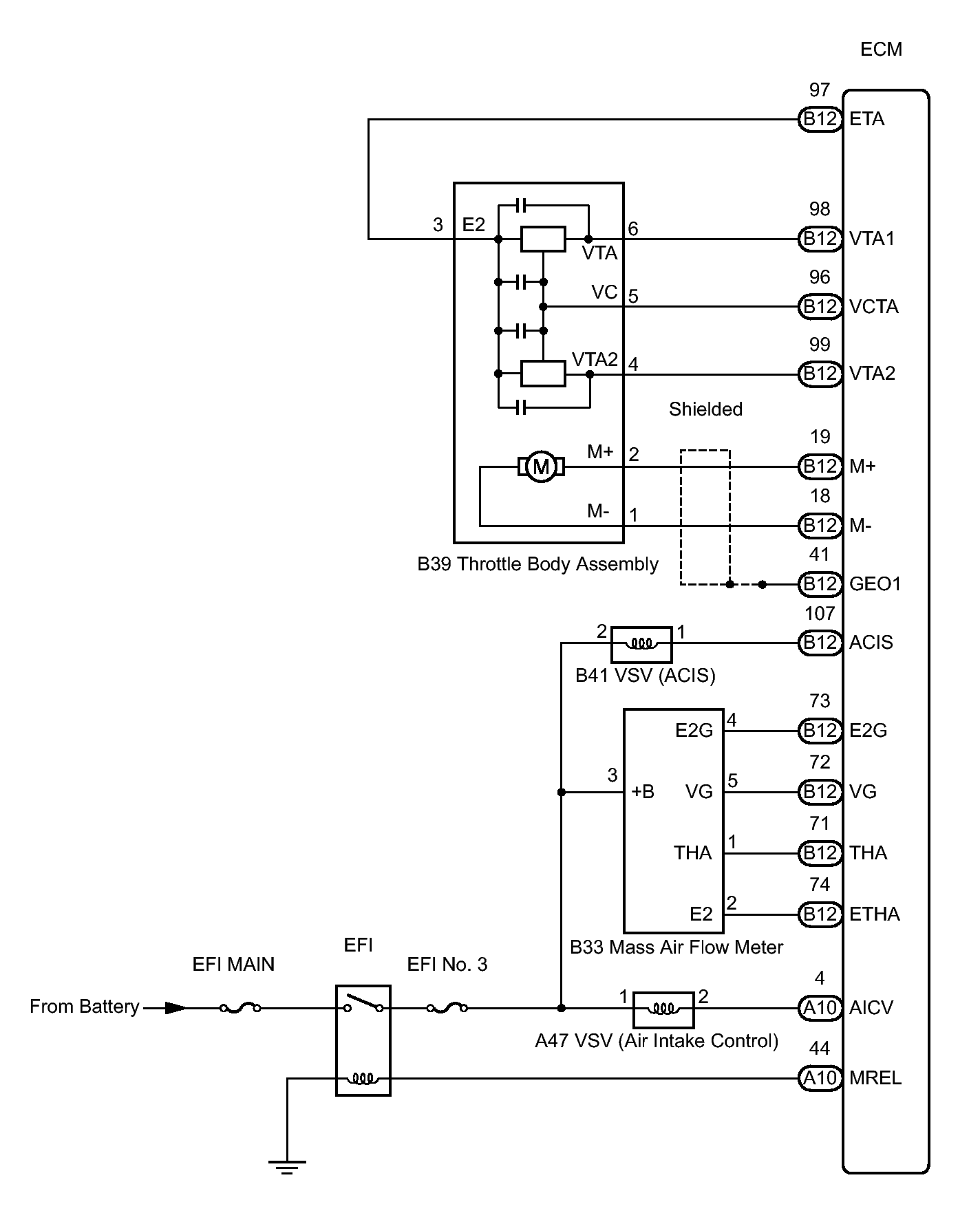

Fig 1: Identifying ECM, Intake Air Control, Mass Air Flow Meter And Throttle Body Assembly Schematic
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
