System Diagram

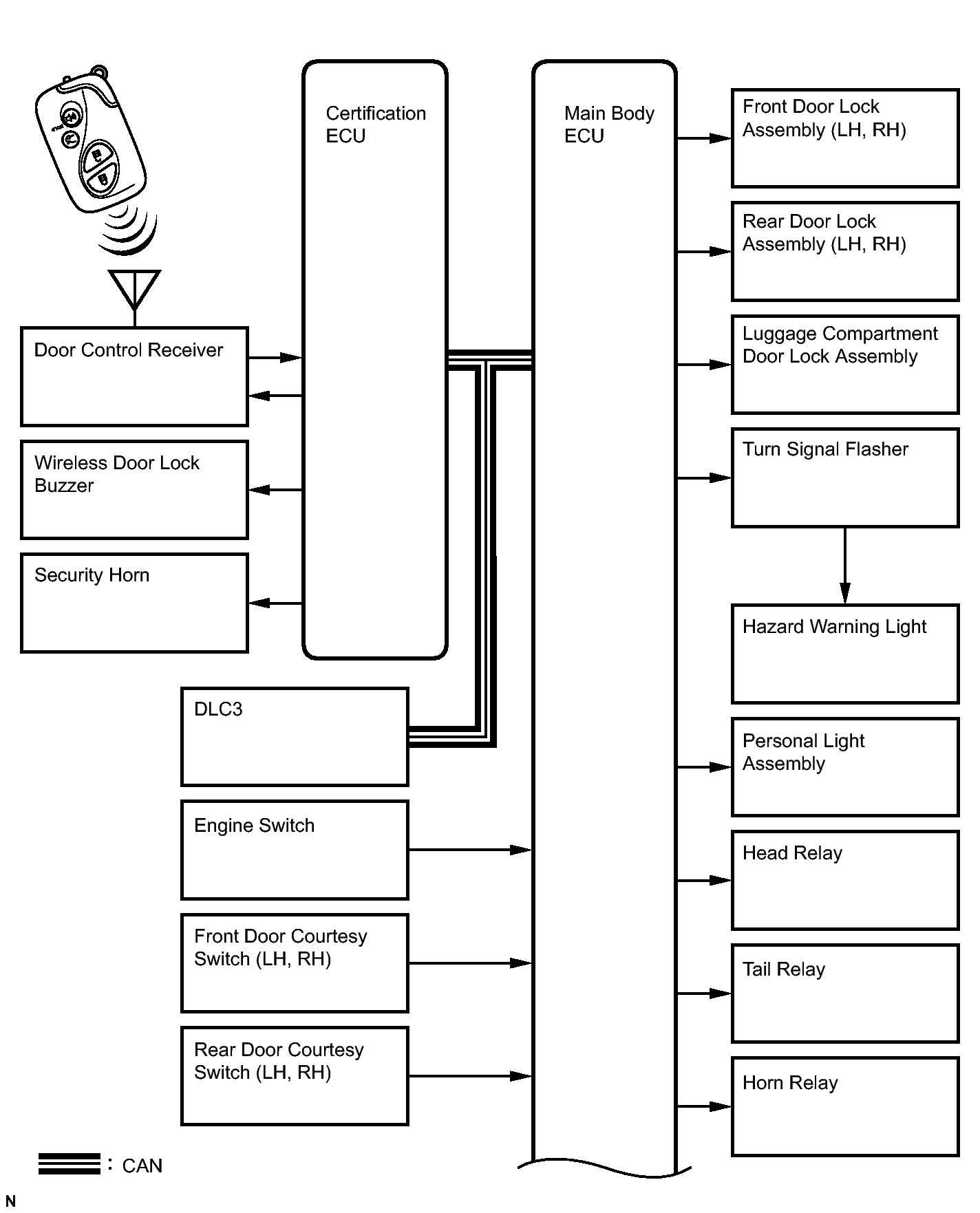

Fig 1: Wireless Door Lock Control System Diagram (1 Of 2)
GTY118138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Wireless Door Lock Control System Diagram (2 Of 2)
GTY118139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Transmitting ECU (Transmitter) Receiving ECU (Receiver) Signal Line
Certification ECU Main Body ECU Wireless door lock signal CAN
Main Body ECU
  • Power Window ECU (Front LH)
  • Power Window ECU (Front RH)
  • Power Window ECU (Rear LH)
  • Power Window ECU (Rear RH)
 Power window DOWN signal LIN
