Power Window Control System (Diagnostic Codes & Circuit Tests)
›
Power Window Control System
›
Ecu Power Source Circuit
›
Wiring Diagram
Ecu Power Source Circuit: Wiring Diagram

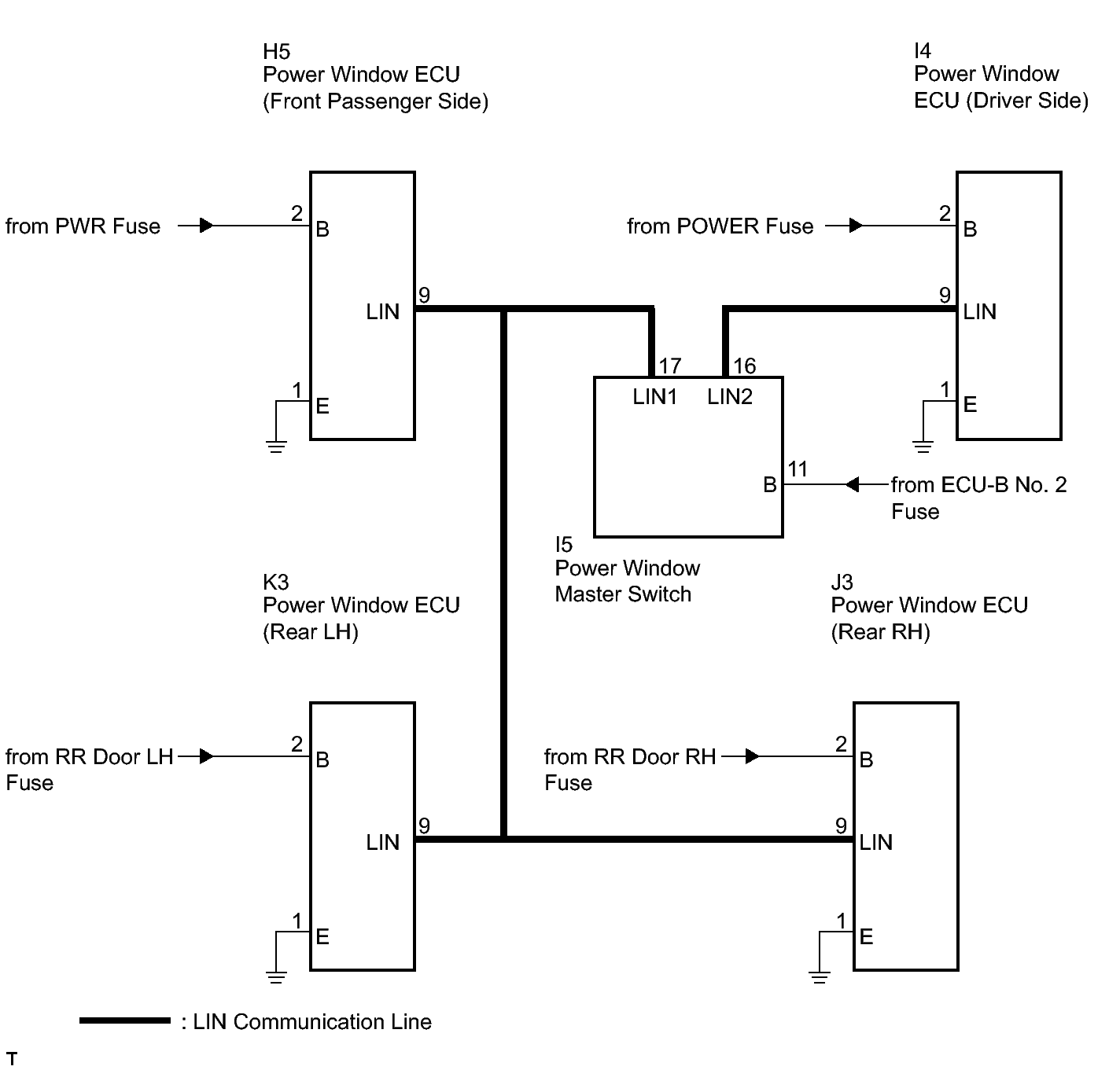

Fig 1: ECU Power Source Circuit - Wiring Diagram
