System Diagram

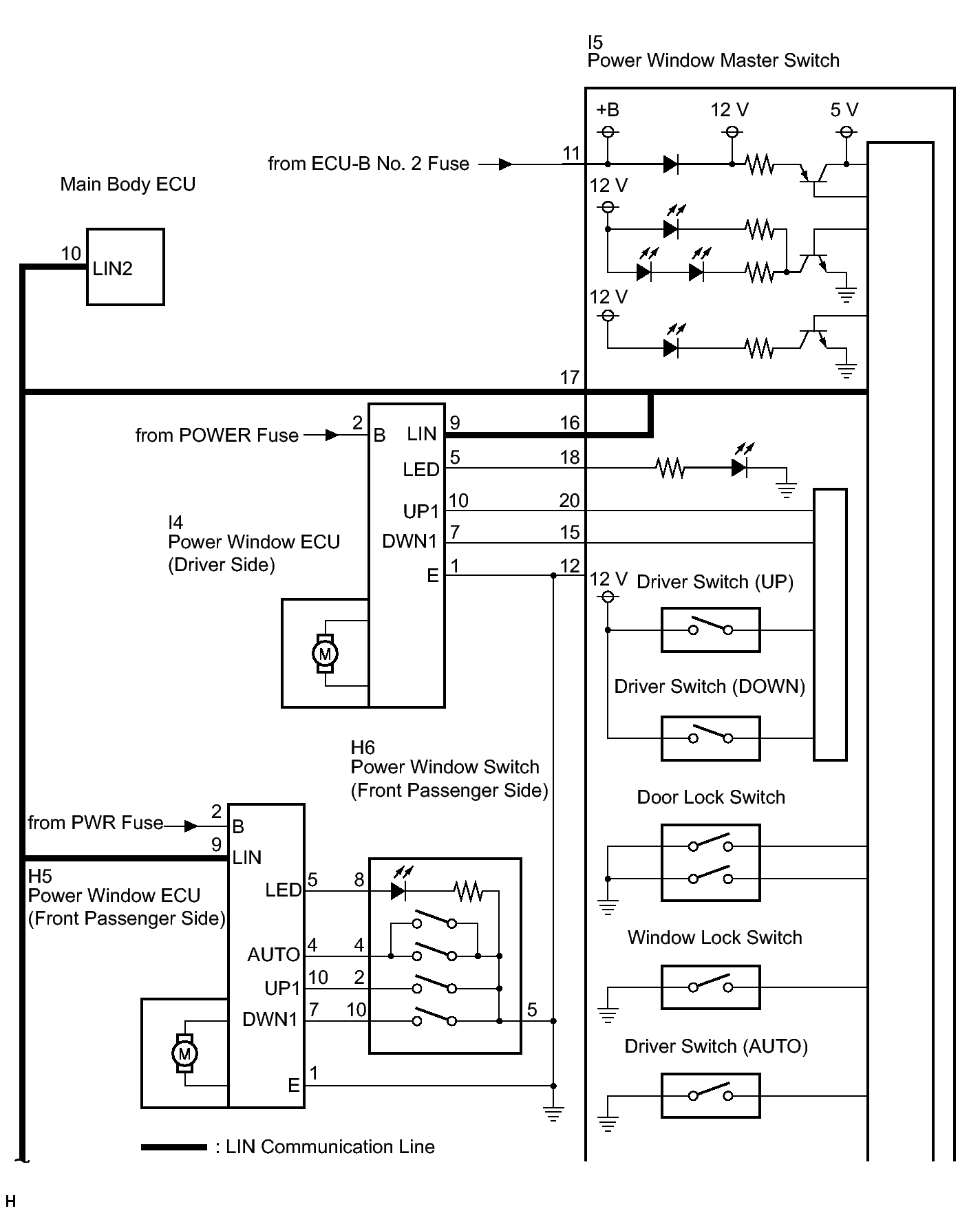

Fig 1: Power Window Control System - System Diagram (1 Of 2)
GTY125938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

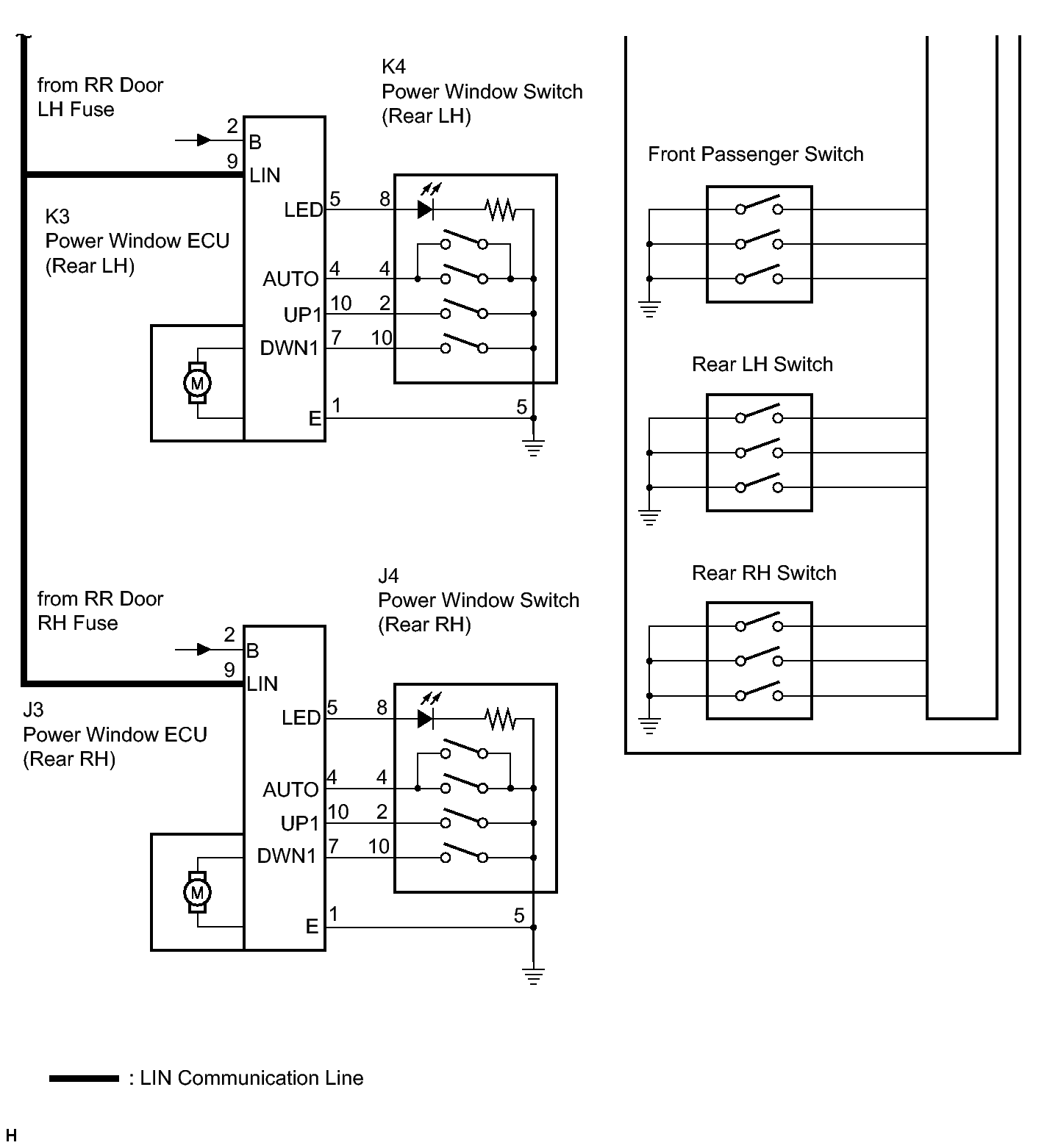

Fig 2: Power Window Control System - System Diagram (2 Of 2)
GTY126670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
