Rear Window Defogger and Mirror Heater: Notes

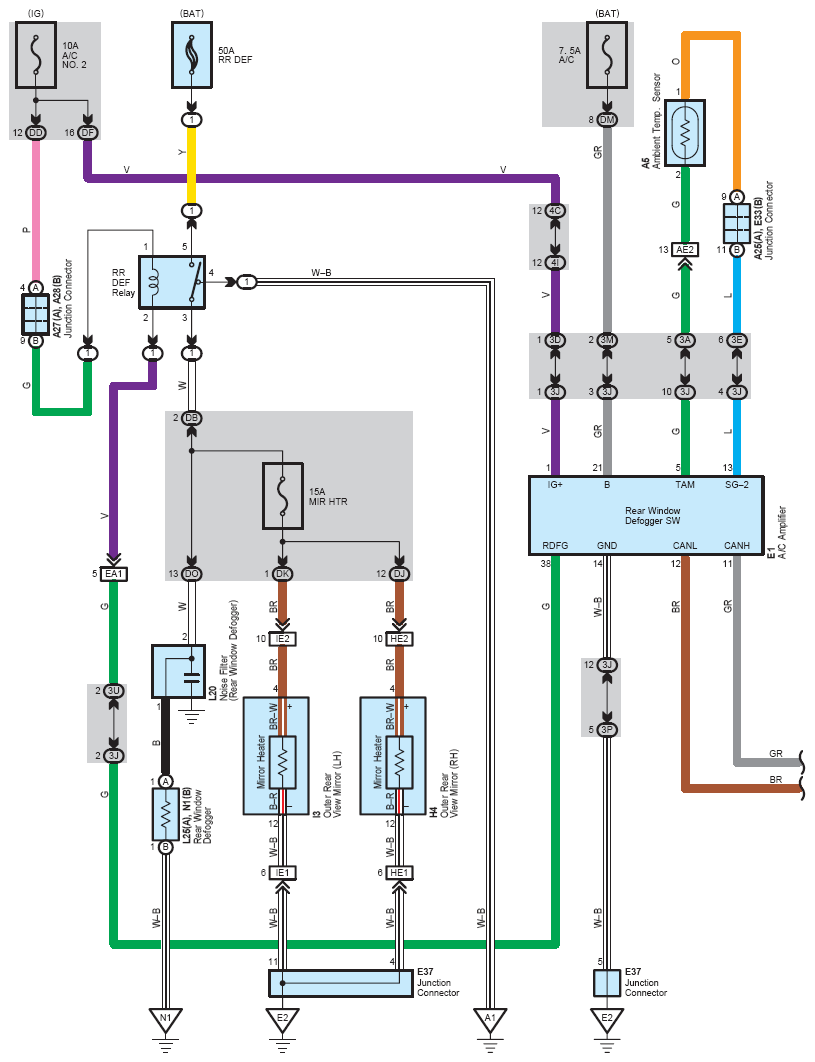

Fig 1: Rear Window Defogger And Mirror Heater - Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Rear Window Defogger And Mirror Heater - Circuit Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
