Parts Location: Illustration

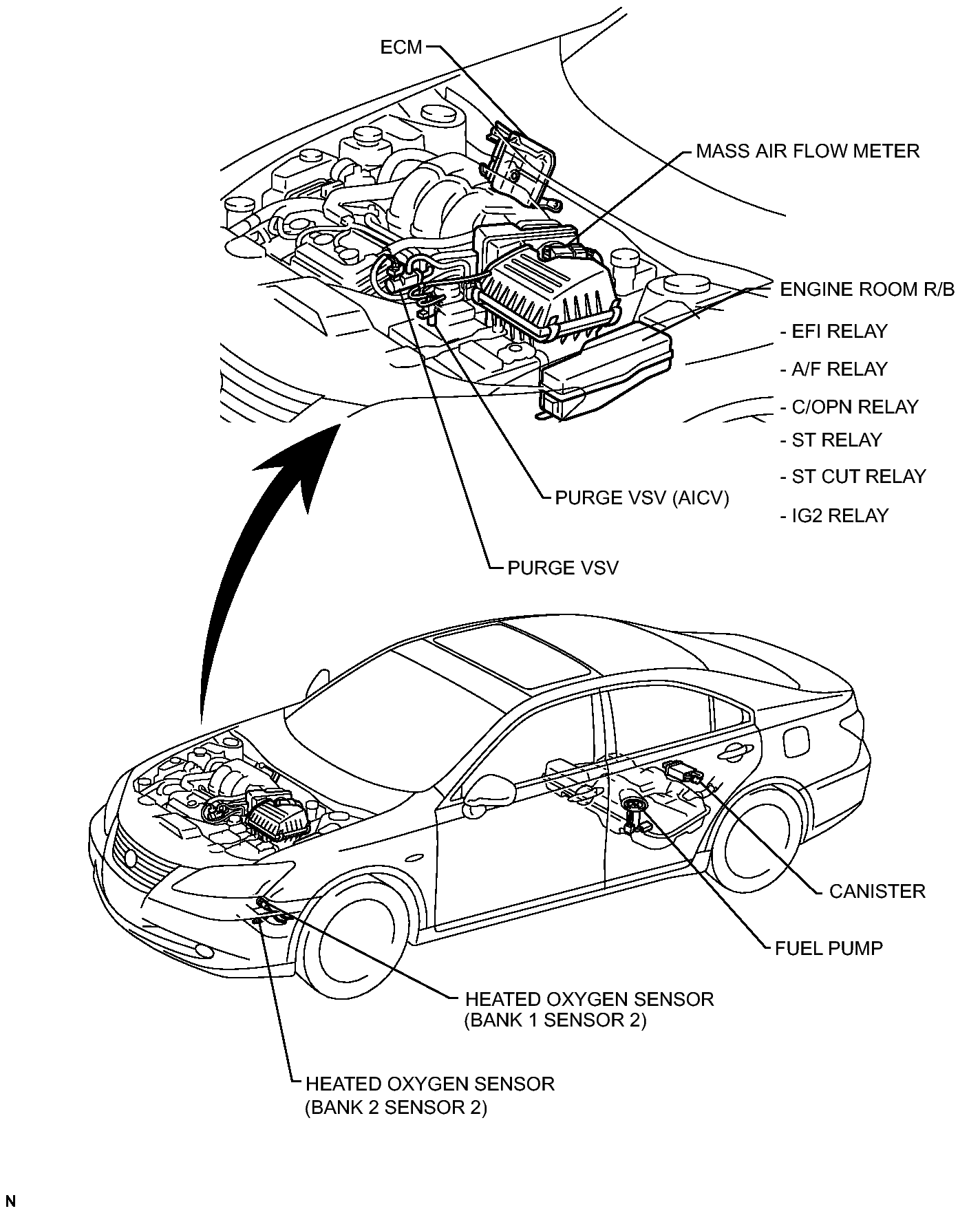

Fig 1: Identifying Engine Control System Replacement Components (1 Of 4)
GTY128419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

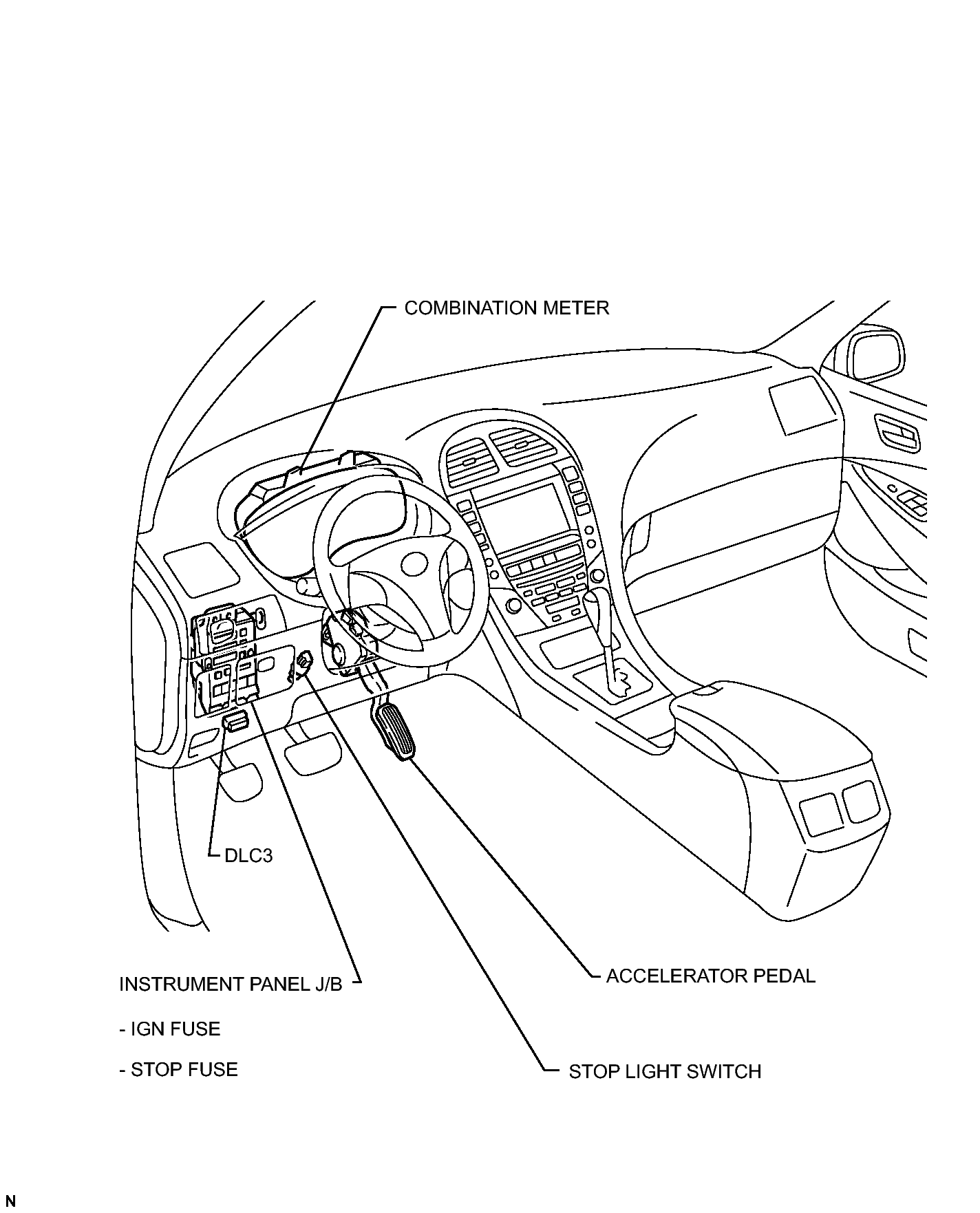

Fig 1: Identifying Engine Control System Replacement Components (2 Of 4)
GTY147381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

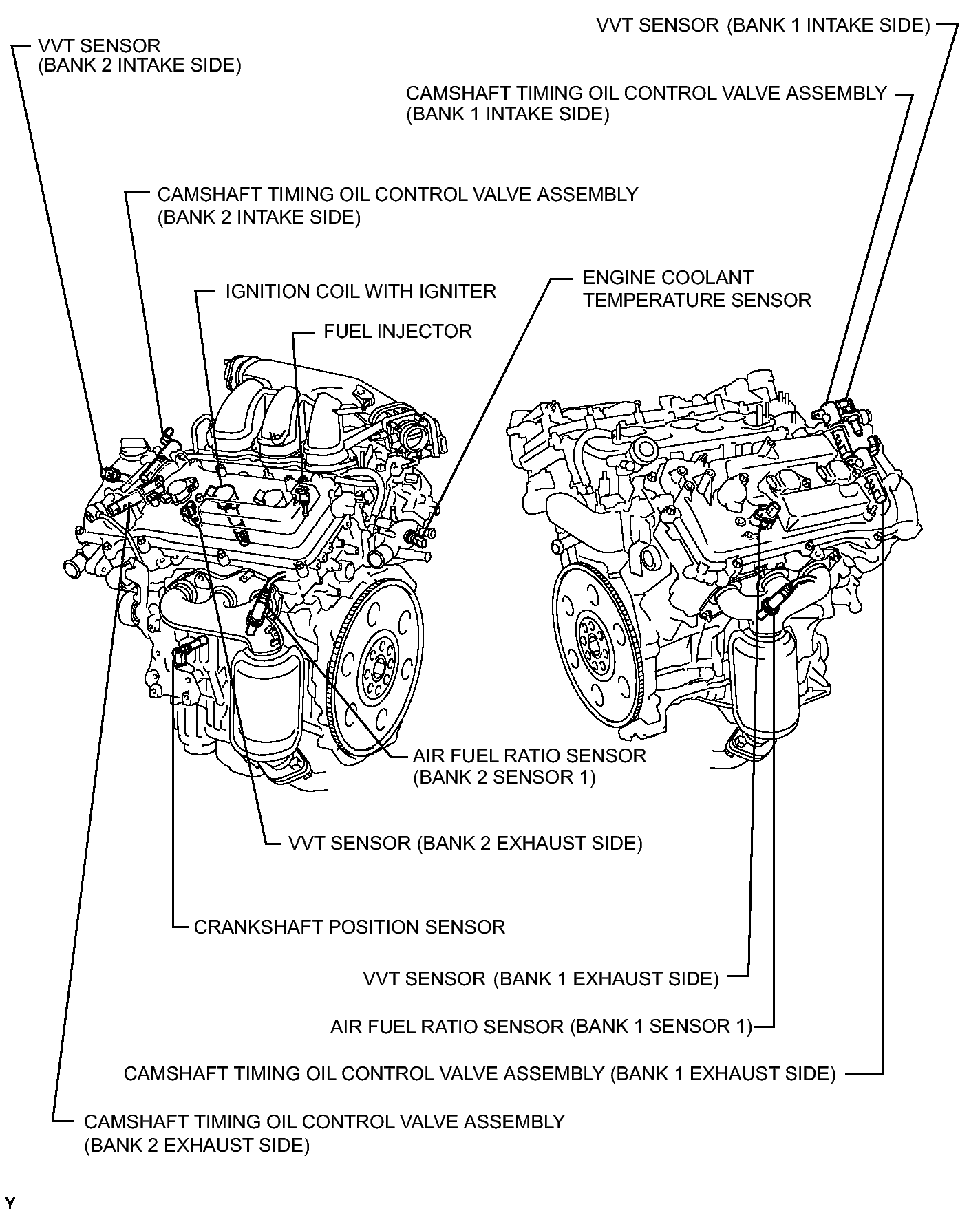

Fig 1: Identifying Engine Control System Components Location (3 Of 4)
GTY145718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Control System Replacement Components (4 Of 4)
GTY145716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
