Ignition Coil: Components: Illustration

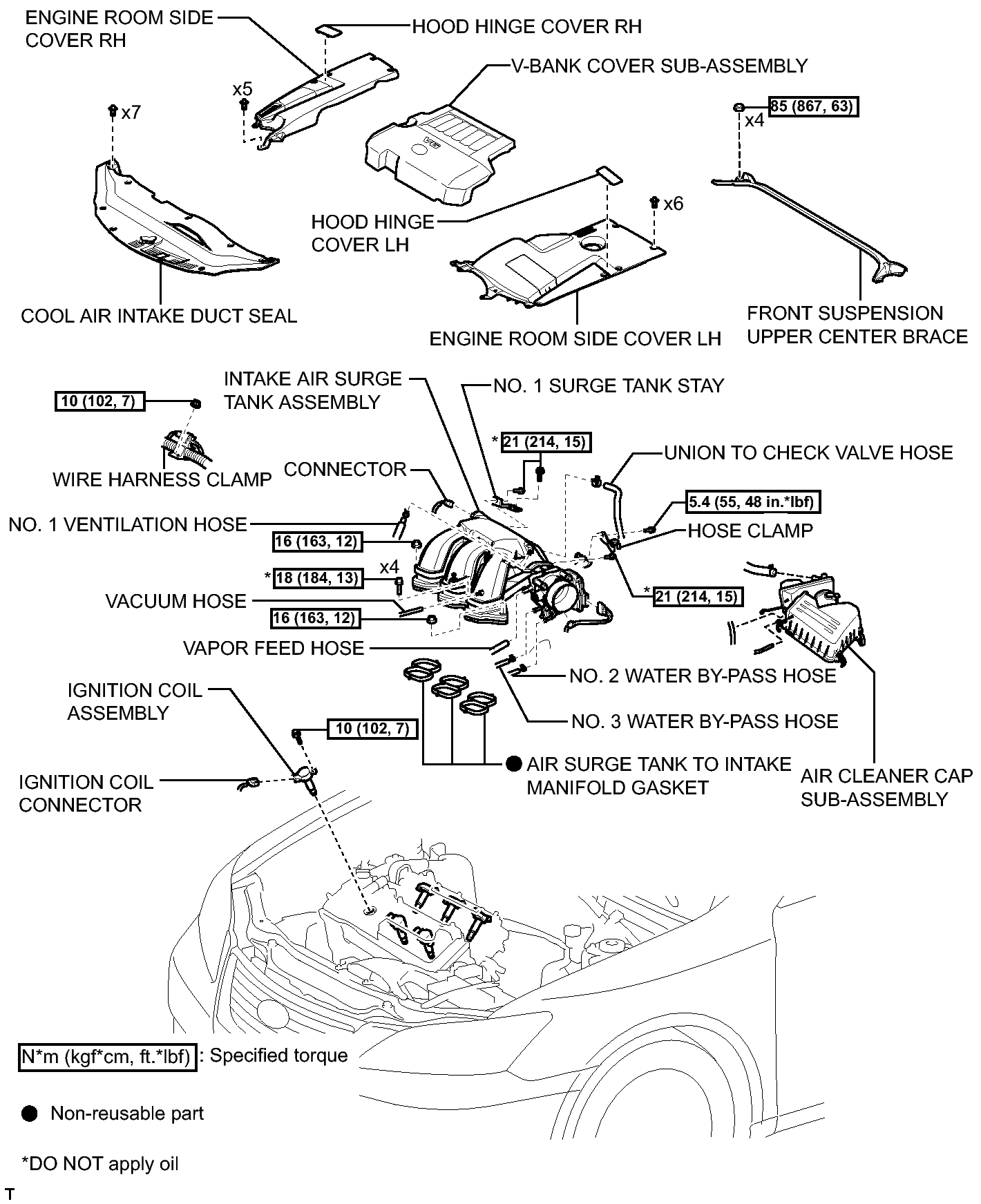

Fig 1: Ignition Coil Replacement Components With Torque Specifications
GTY147248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
