Charging (Service Information): Generator: Components: Illustration

Fig 1: Identifying Generator Replacement Components (1 Of 3)
GTY105460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

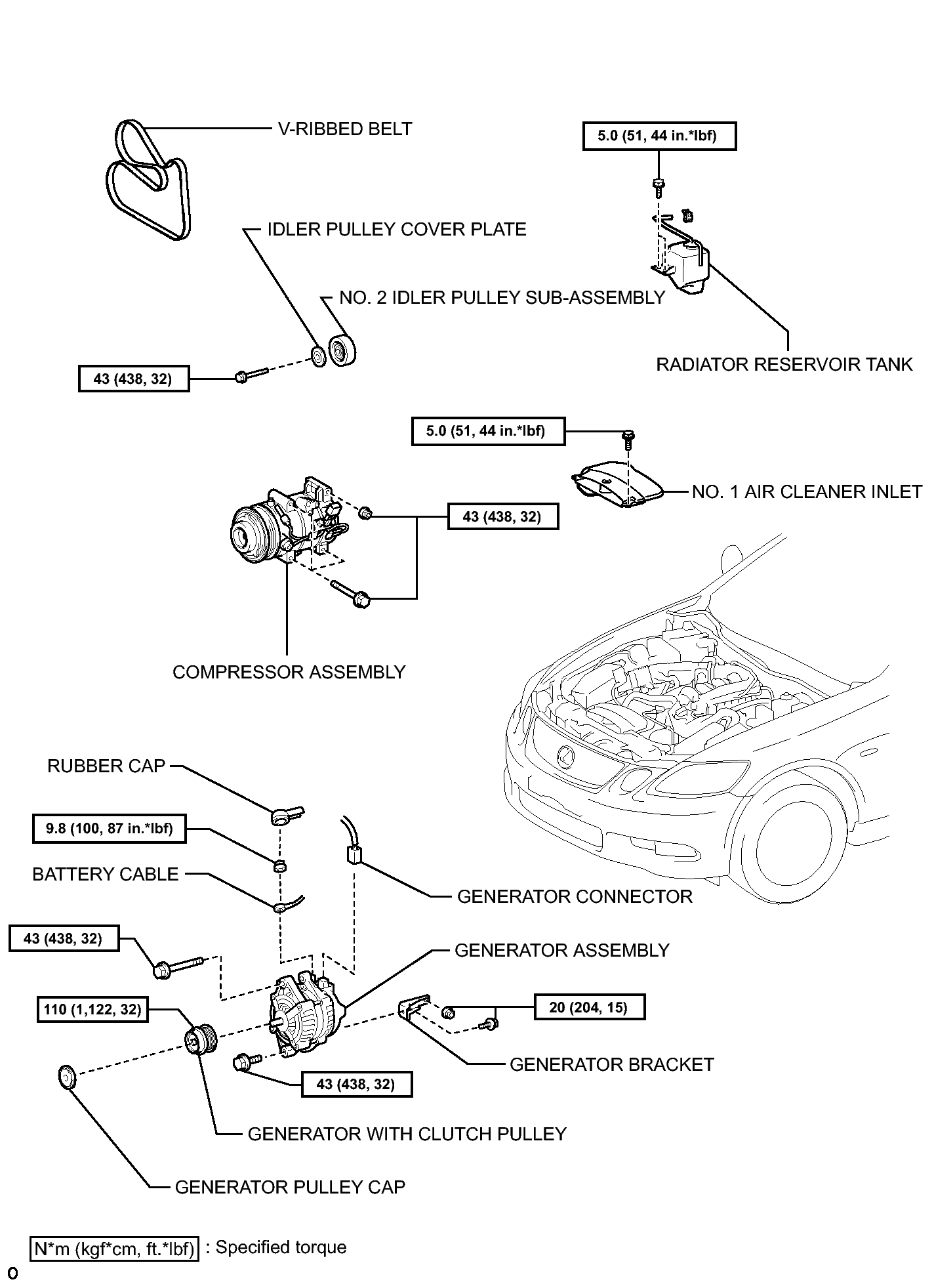

Fig 1: Identifying Generator Replacement Components With Torque Specification (2 Of 3)
GTY104018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

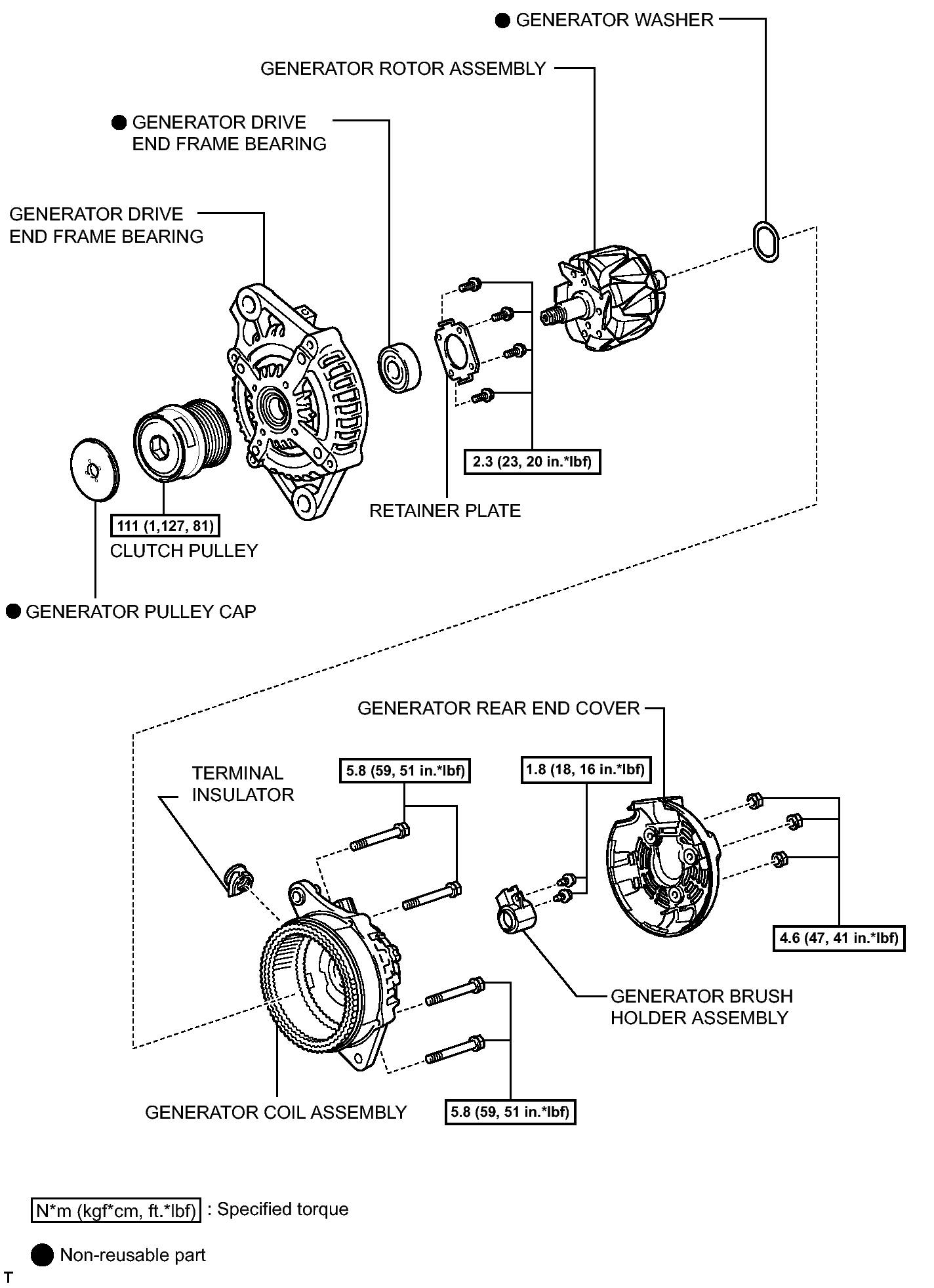

Fig 1: Identifying Generator Replacement Components With Torque Specification (3 Of 3)
GTY104932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
