Mass Air Flow Meter: Components: Illustration

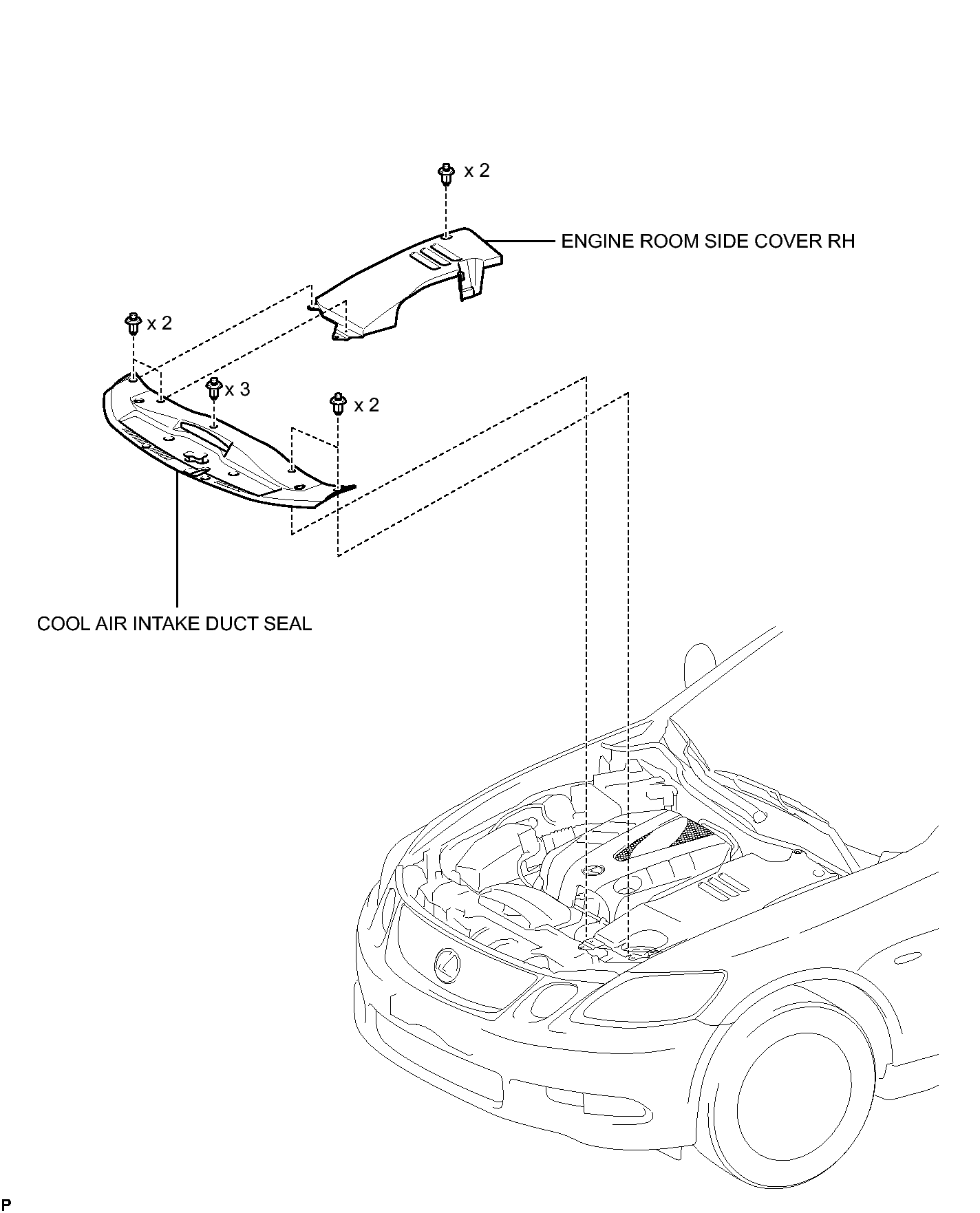

Fig 1: Identifying Mass Air Flow Meter Replacement Components (1 Of 2)
GTY101478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

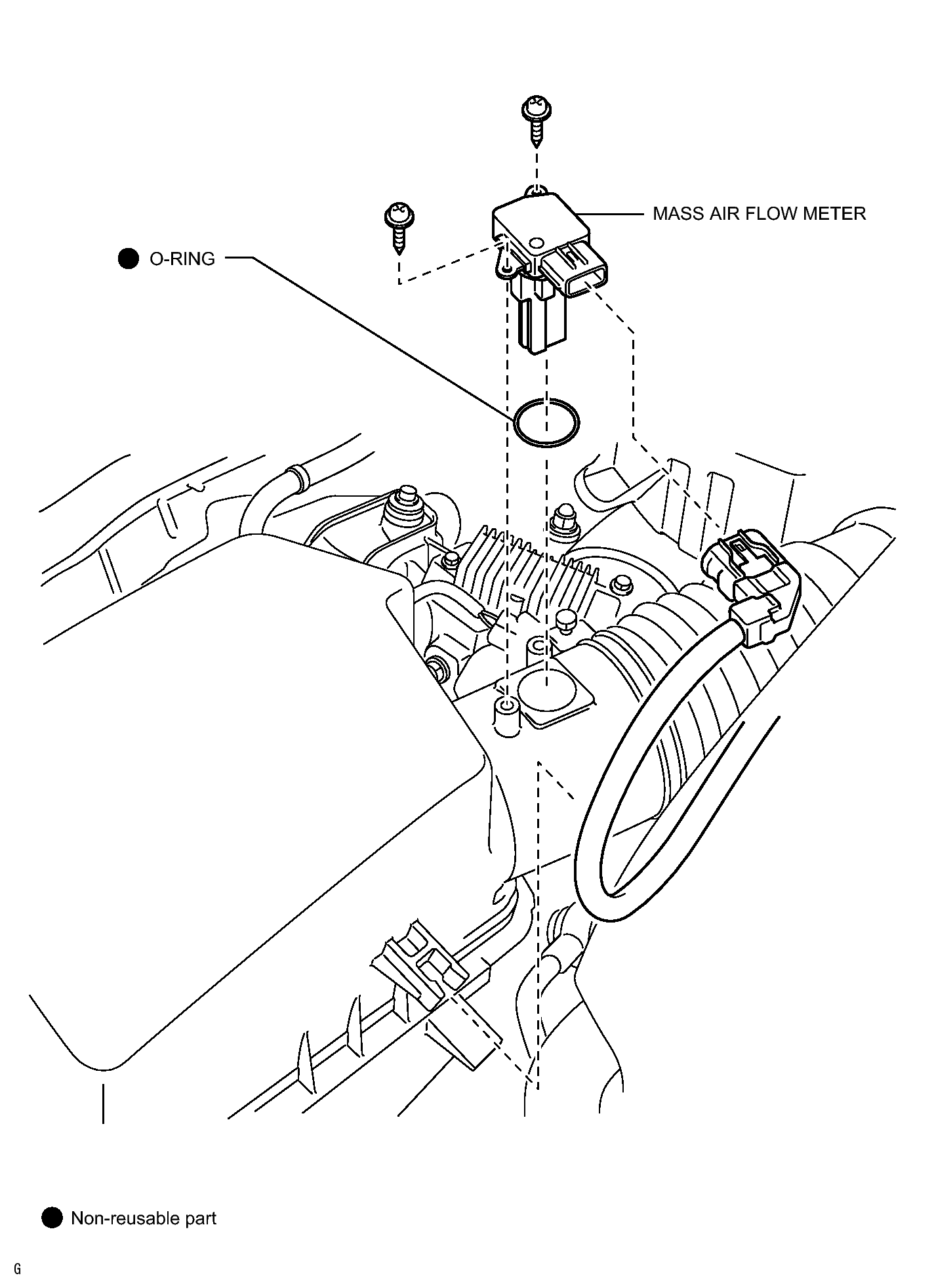

Fig 1: Identifying Mass Air Flow Meter Replacement Components (2 Of 2)
GTY105022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
