Window Defogger System
›
Rear Window Defogger System does not Operate
›
Wiring Diagram
Rear Window Defogger System does not Operate: Wiring Diagram

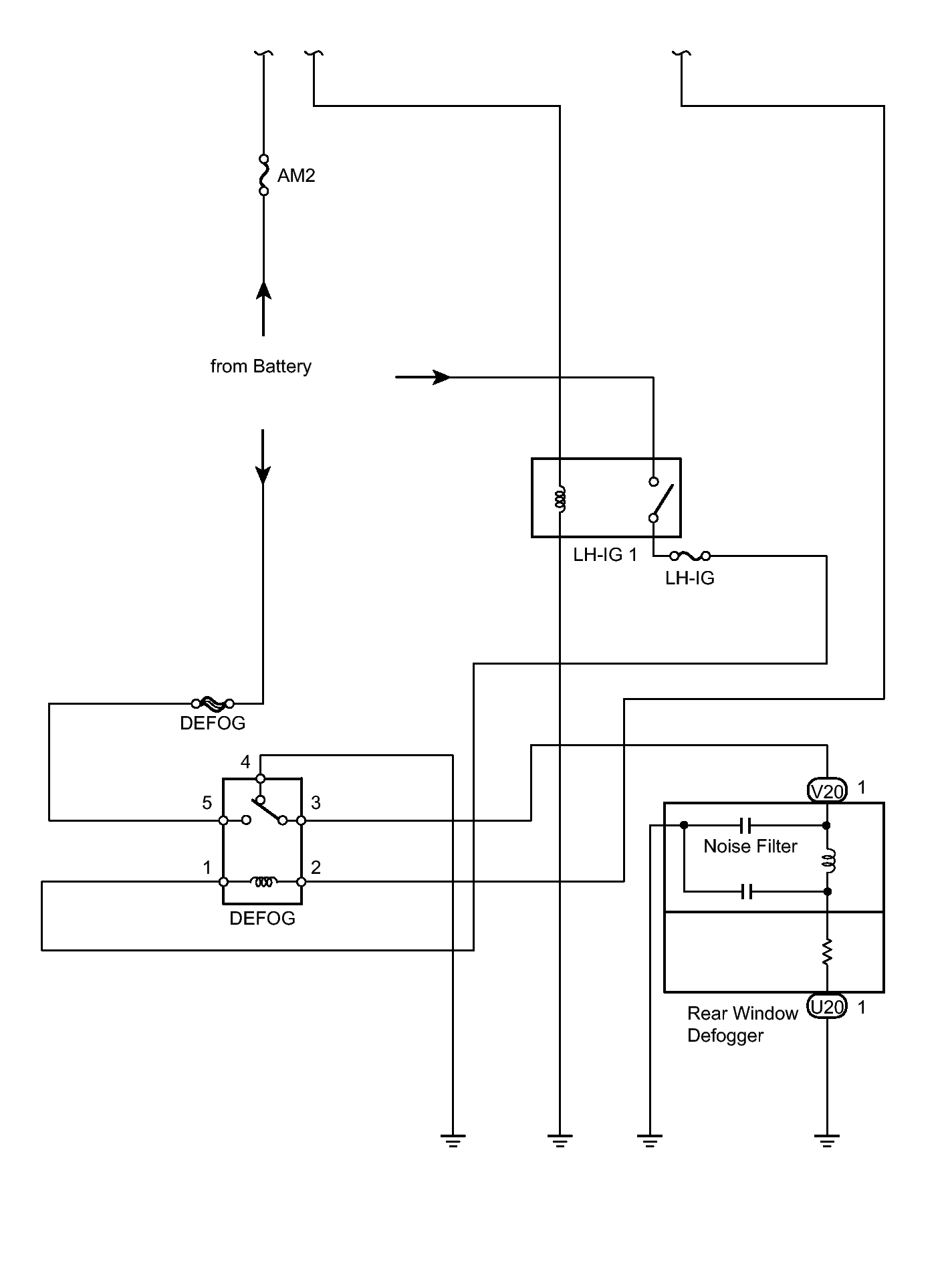

Fig 1: Rear Window Defogger System - Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

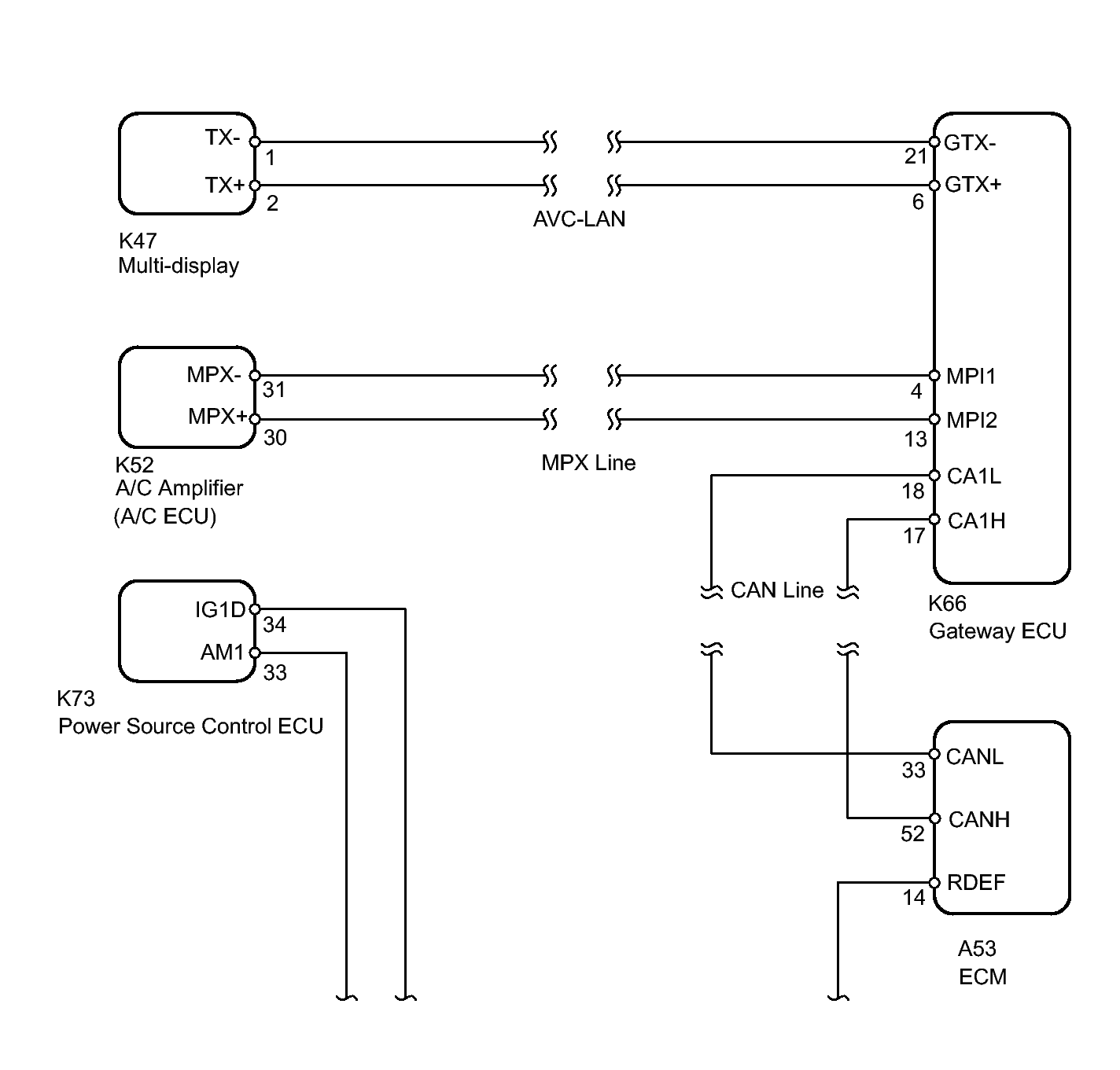

Fig 2: Rear Window Defogger System - Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
