Yaw Rate And Acceleration Sensor: Components: Illustration

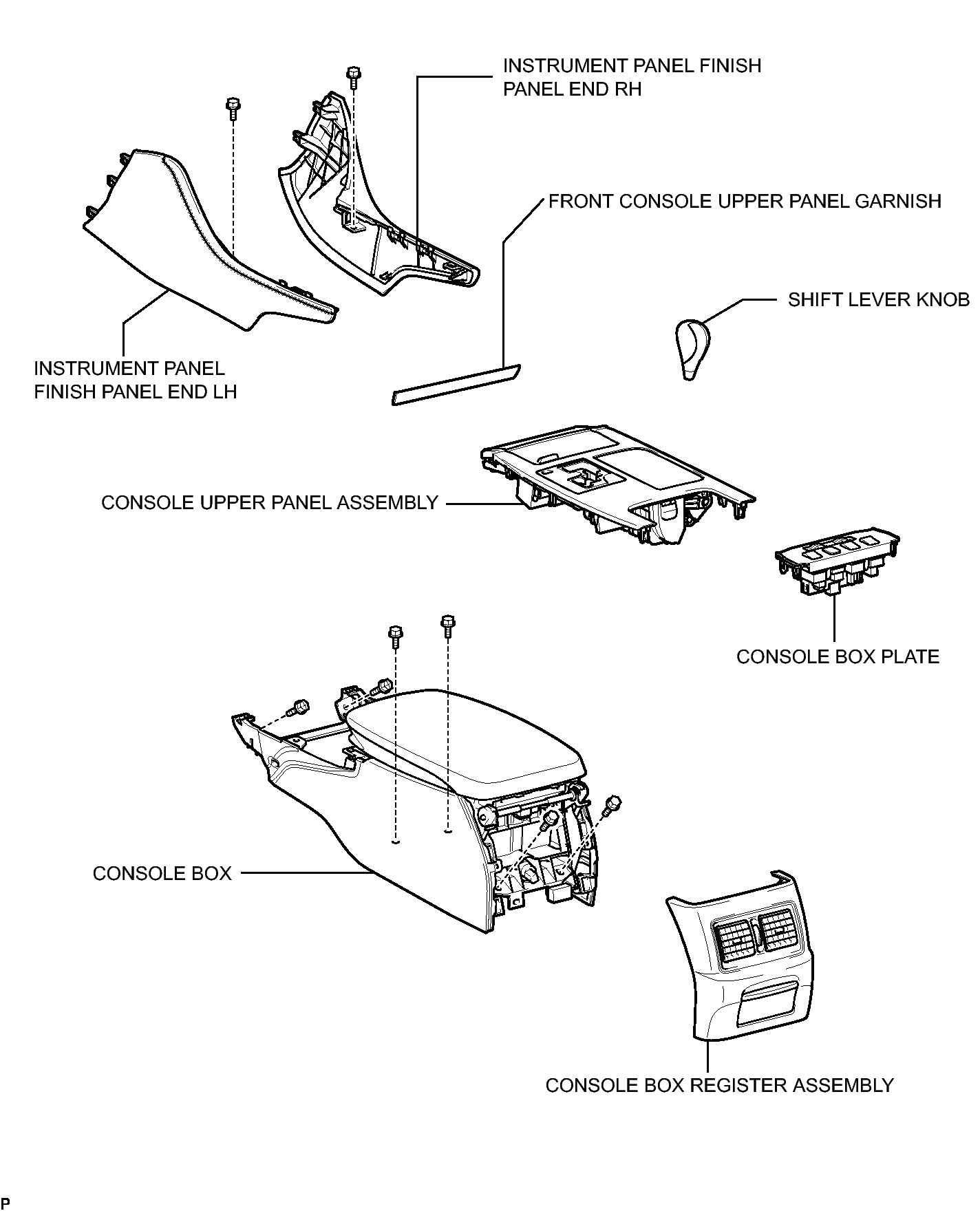

Fig 1: Identifying Yaw Rate And Acceleration Sensor Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

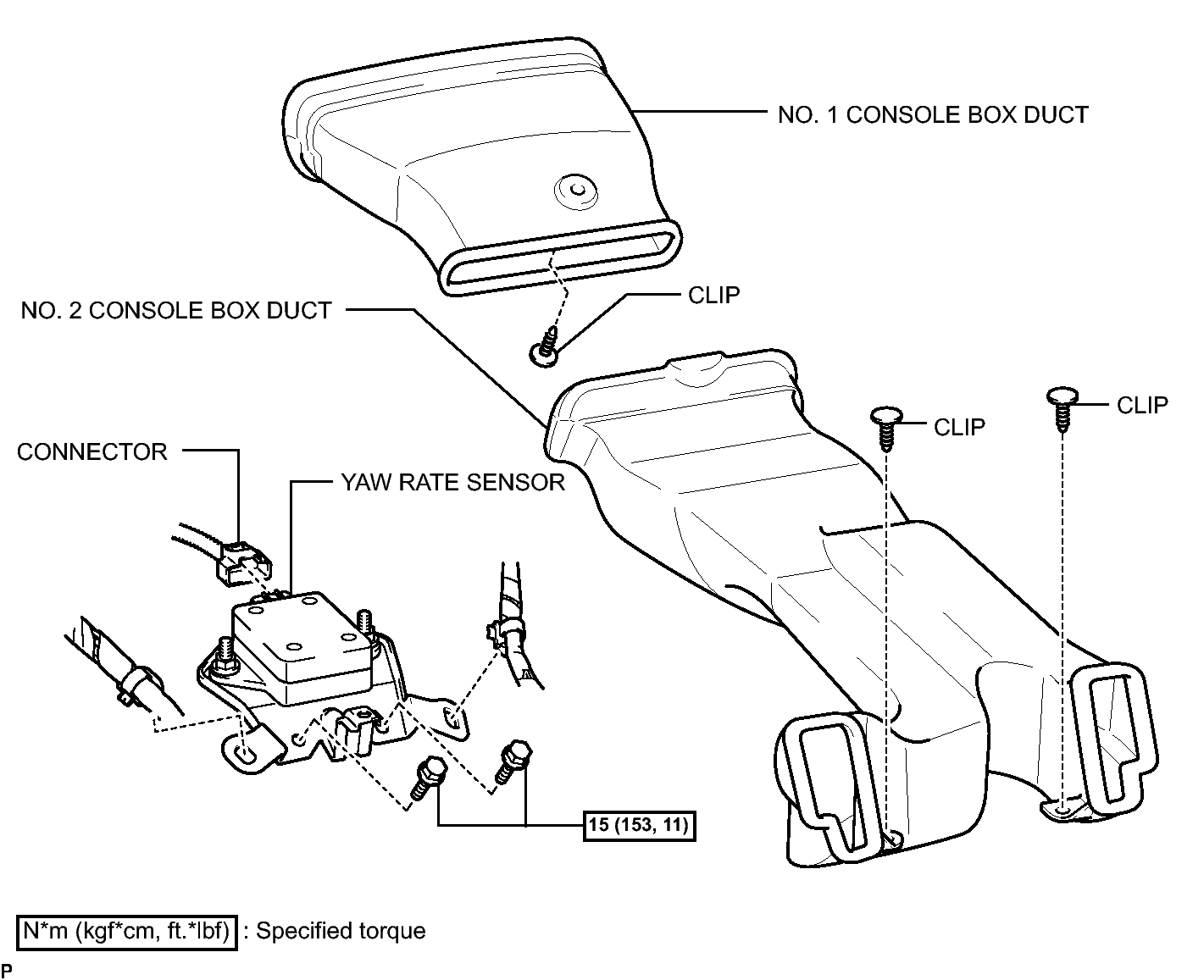

Fig 1: Identifying Yaw Rate And Acceleration Sensor Replacement Components With Torque Specification (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
