Injector Driver: Removal: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE SERVICE PLUG GRIP . Refer to REMOVAL - Step 6
REMOVE COOL AIR INTAKE DUCT SEAL . Refer to REMOVAL - Step 5
REMOVE AIR CLEANER INLET
1. Remove the bolt and air cleaner inlet.

  Fig 1: Locating Air Cleaner Inlet Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 ENGINE COVER
1. Remove the 3 clips and cover.

  Fig 2: Locating Clips And Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INJECTOR DRIVER
1. Disconnect the 4 injector driver connectors.

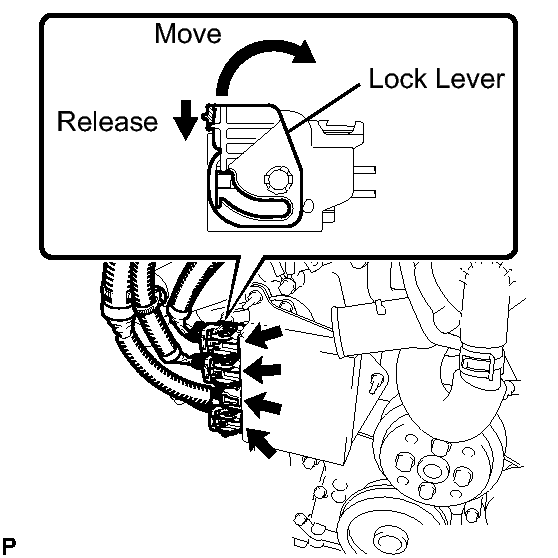

  Fig 3: Disconnecting Injector Driver Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Move the lock lever in the direction indicated by the arrow to release the connector lock. Disconnect the 3 connectors with wire harness locks and the connector from the injector driver.
2. Remove the bolt, 2 nuts and injector driver.

  Fig 4: Locating Injector Driver Bolt And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Be careful not to drop or strike the injector driver.
