In-Line Connector End View (AV3)

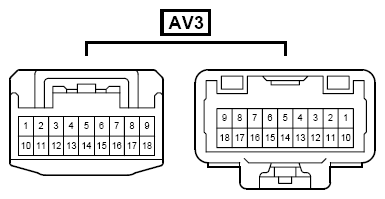

Fig 1: In-Line Connector End View (AV3)
G10260855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
