Ignition (1UR-FSE): Notes

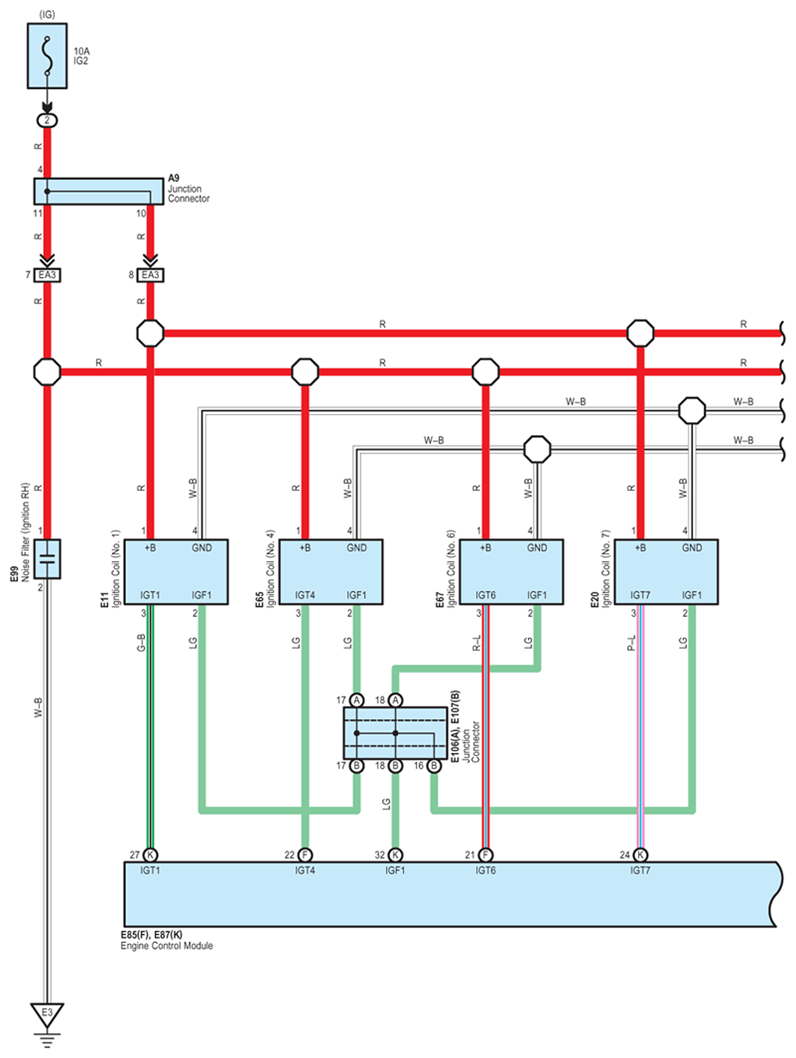

Fig 1: Ignition (1UR-FSE) - Circuit Diagram (1 Of 2)

G07595381

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

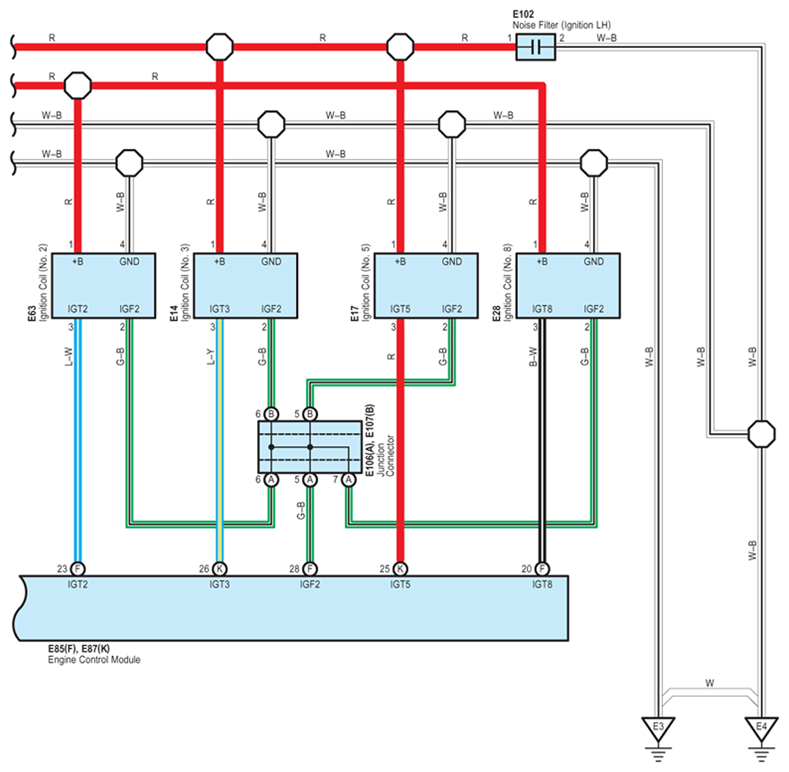

Fig 2: Ignition (1UR-FSE) - Circuit Diagram (2 Of 2)

G07595382

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
