Lexus
›
2009
›
GS 460
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Windshield Deicer
›
Notes
Windshield Deicer: Notes

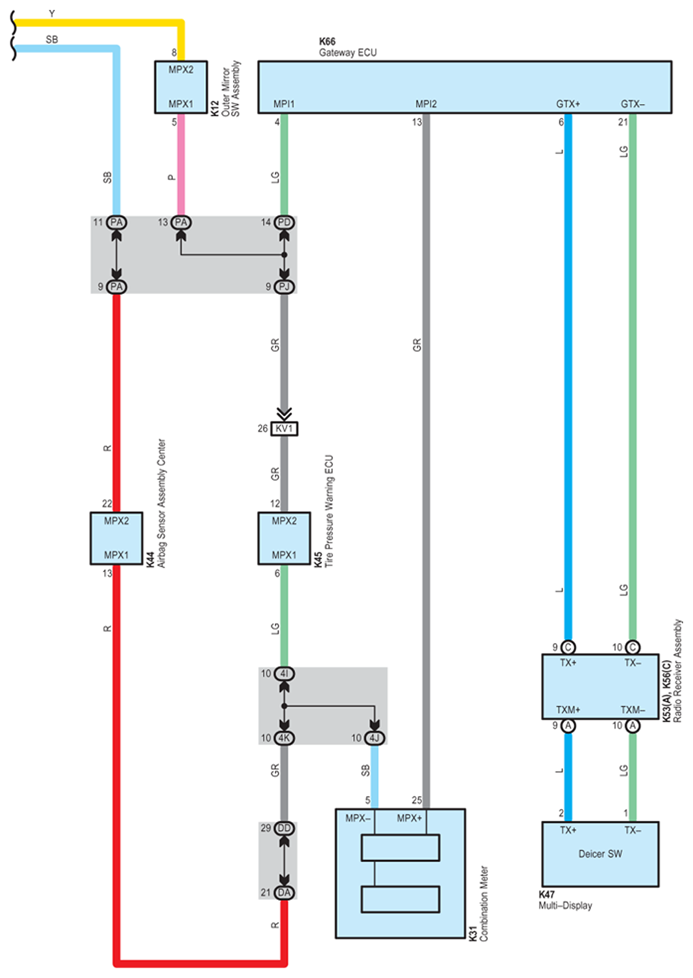

Fig 1: Windshield Deicer - Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

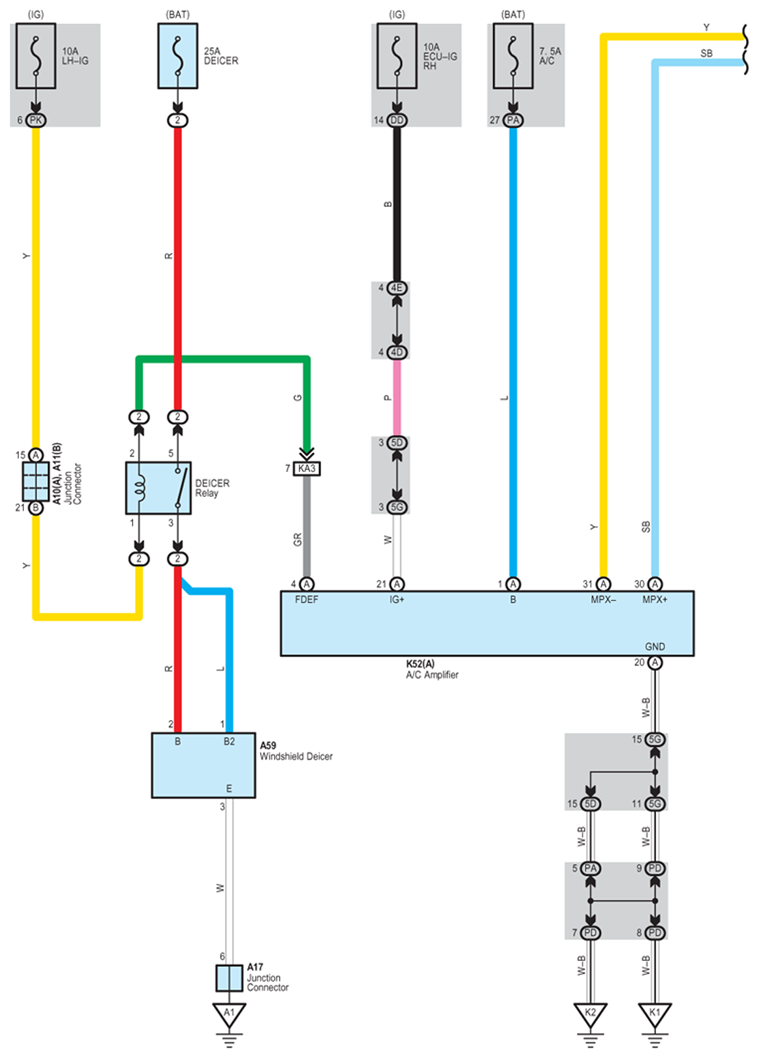

Fig 2: Windshield Deicer - Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
