Injector Driver: Components: Illustration

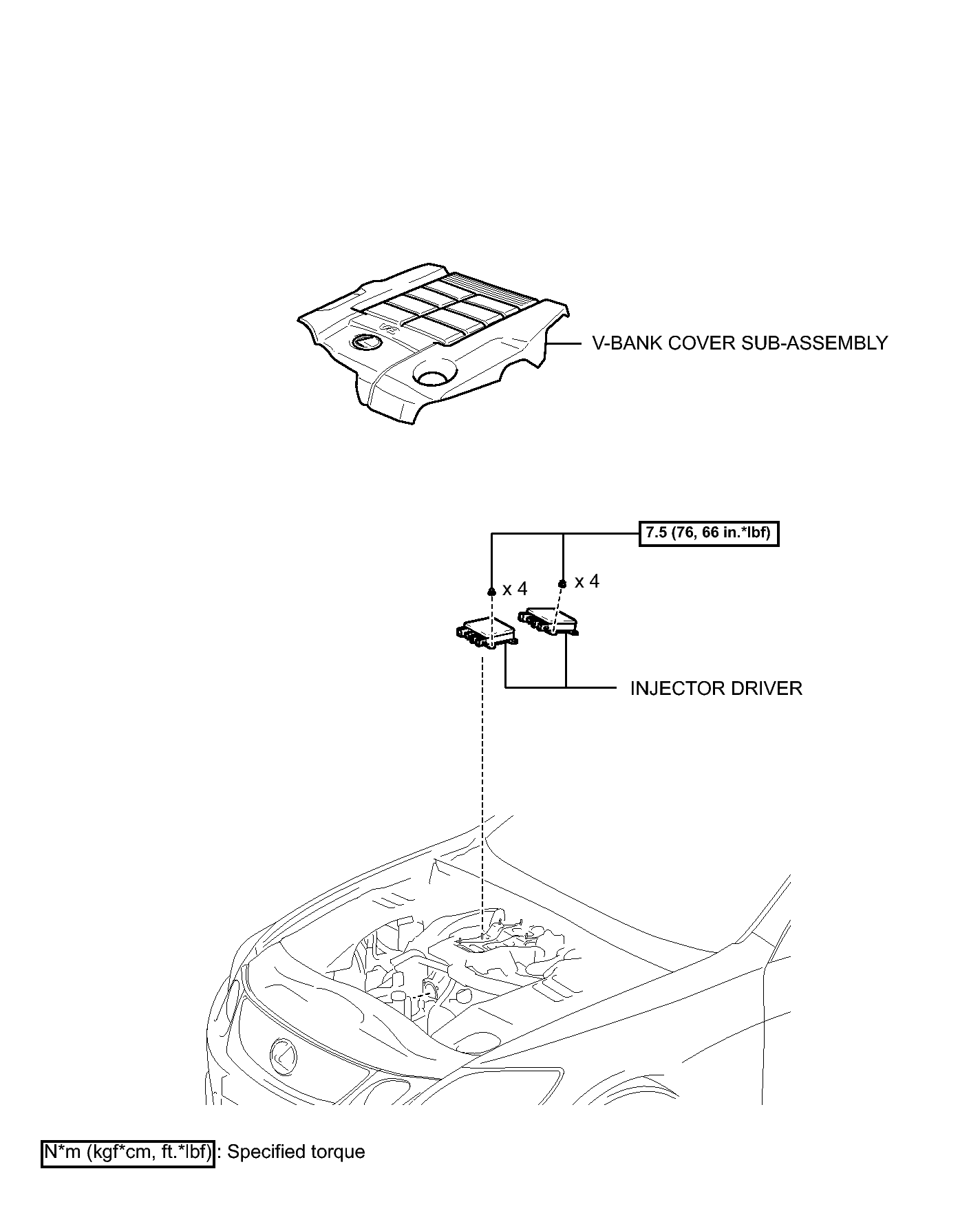

Fig 1: Injector Driver Replacement Components With Torque Specifications
GTY105689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
