Parts Location: Illustration

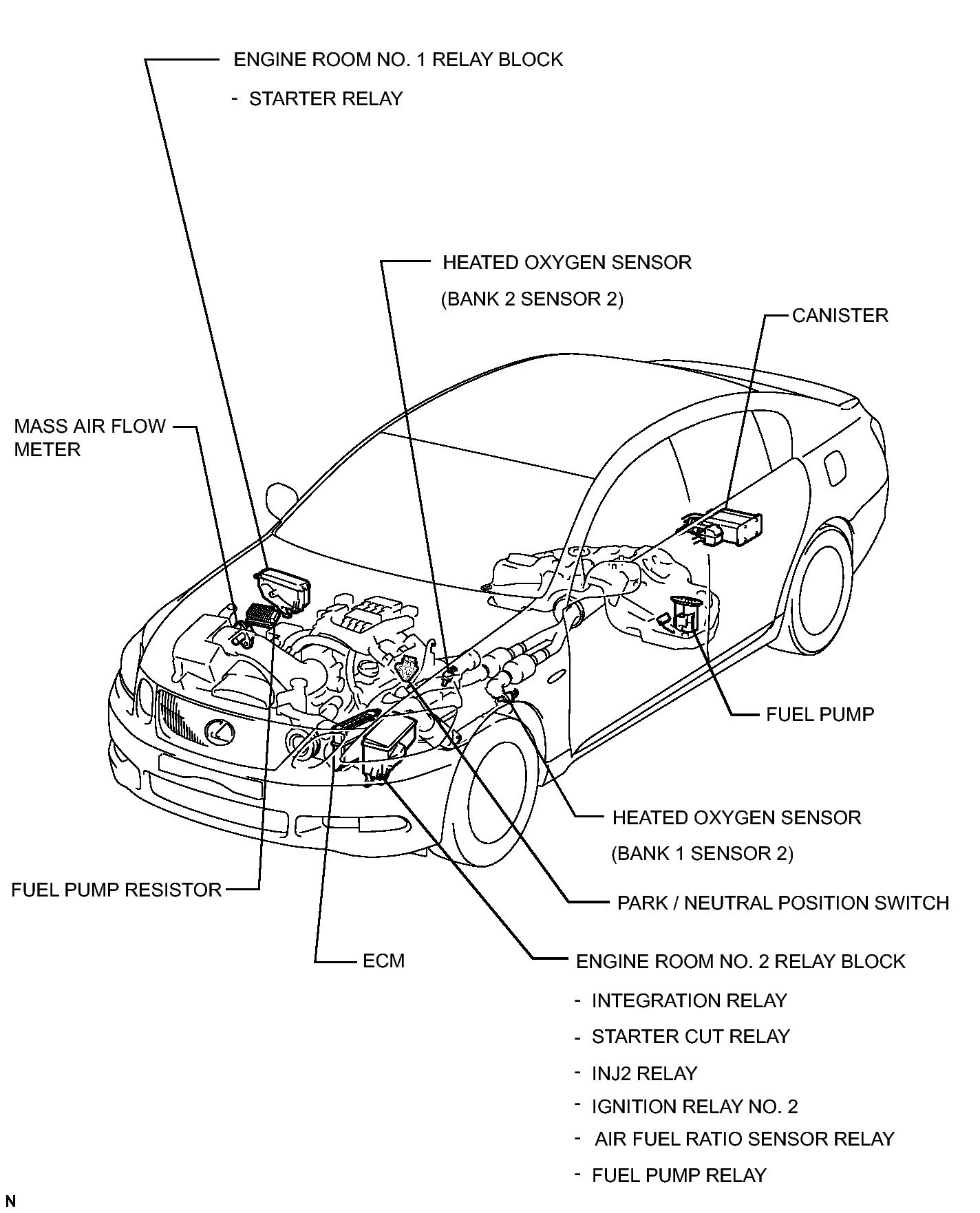

Fig 1: Identifying SFI System Replacement Components (1 Of 6)
GTY105478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

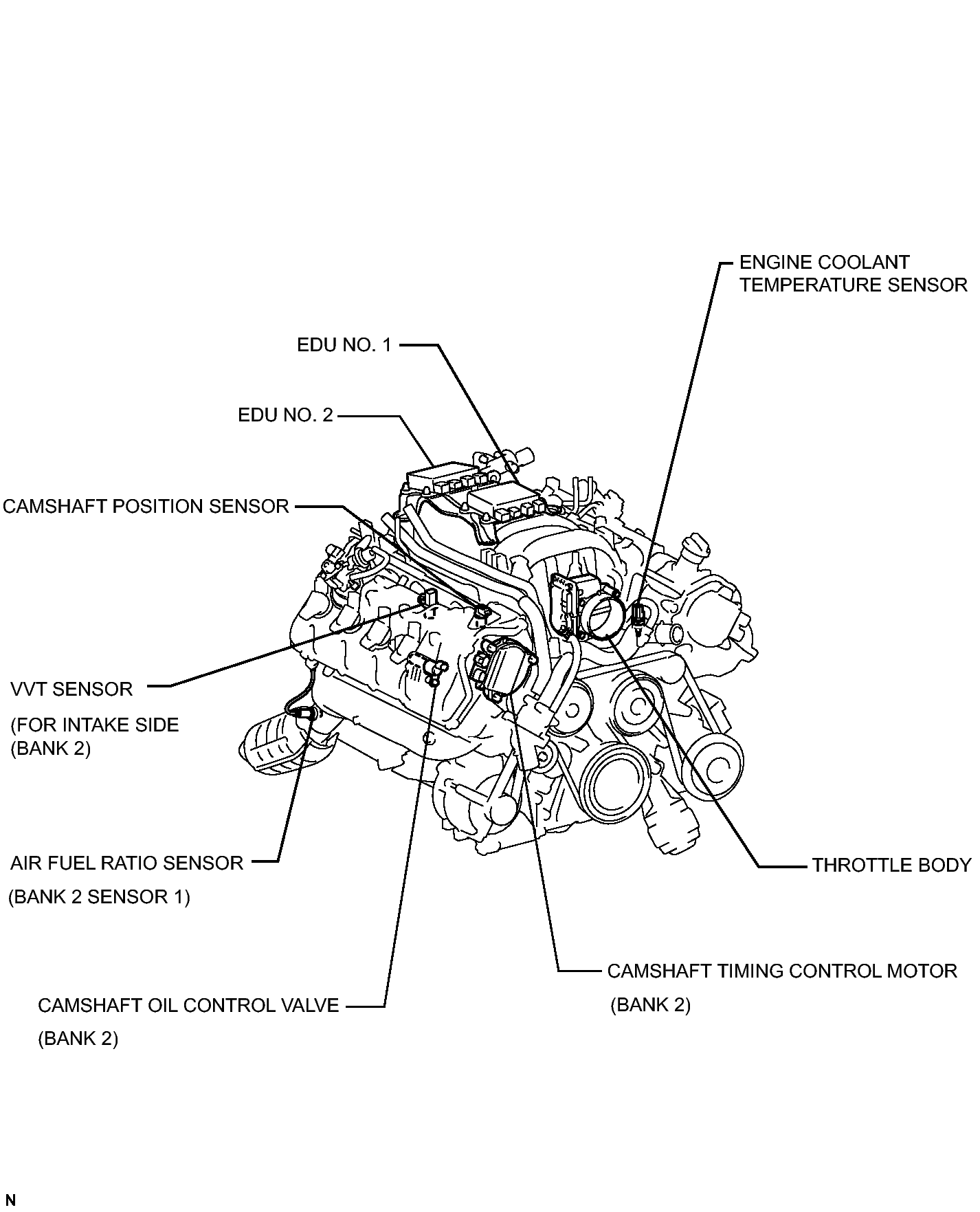

Fig 1: Identifying SFI System Replacement Components (2 Of 6)
GTY101580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

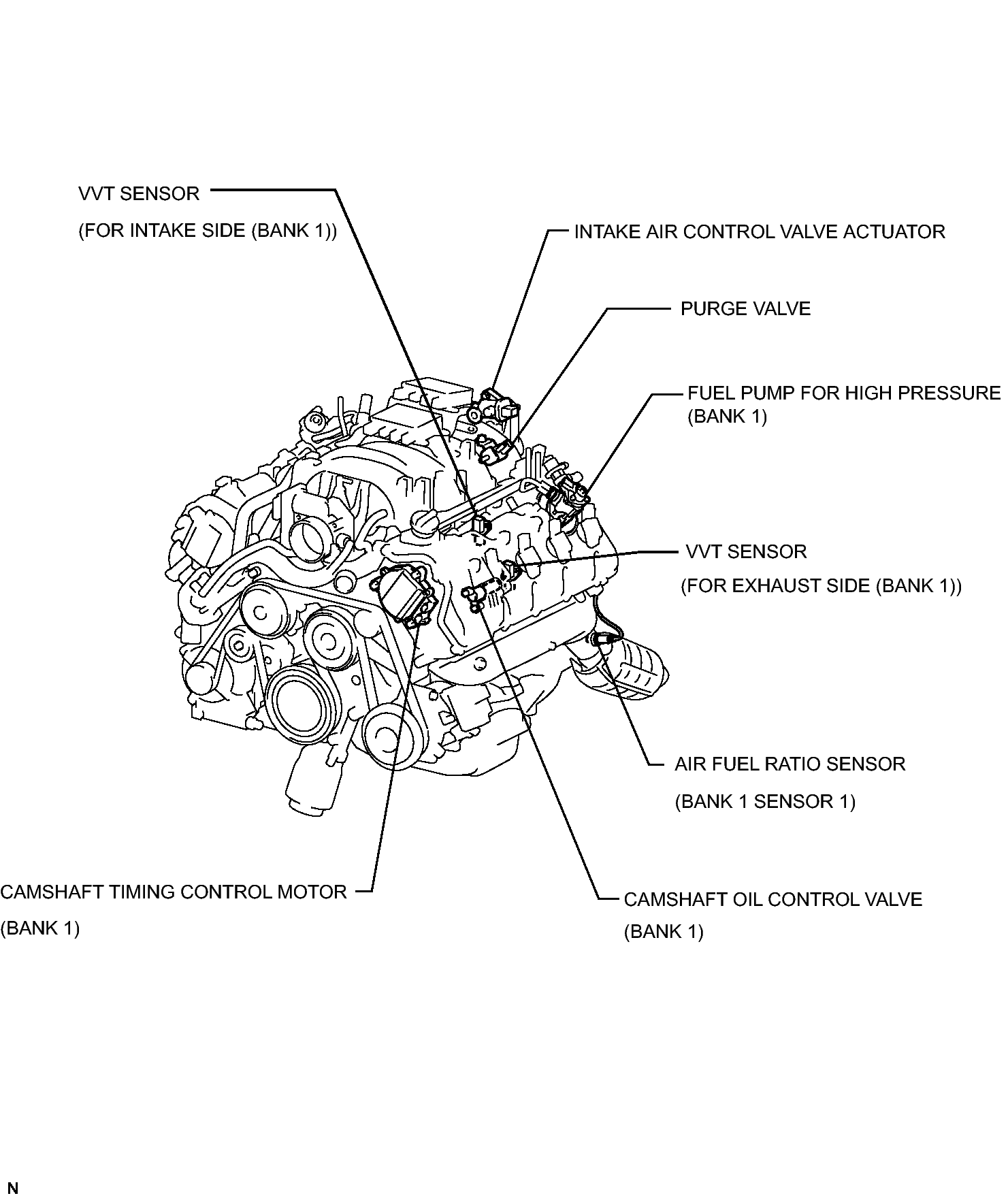

Fig 1: Identifying SFI System Replacement Components (3 Of 6)
GTY105479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

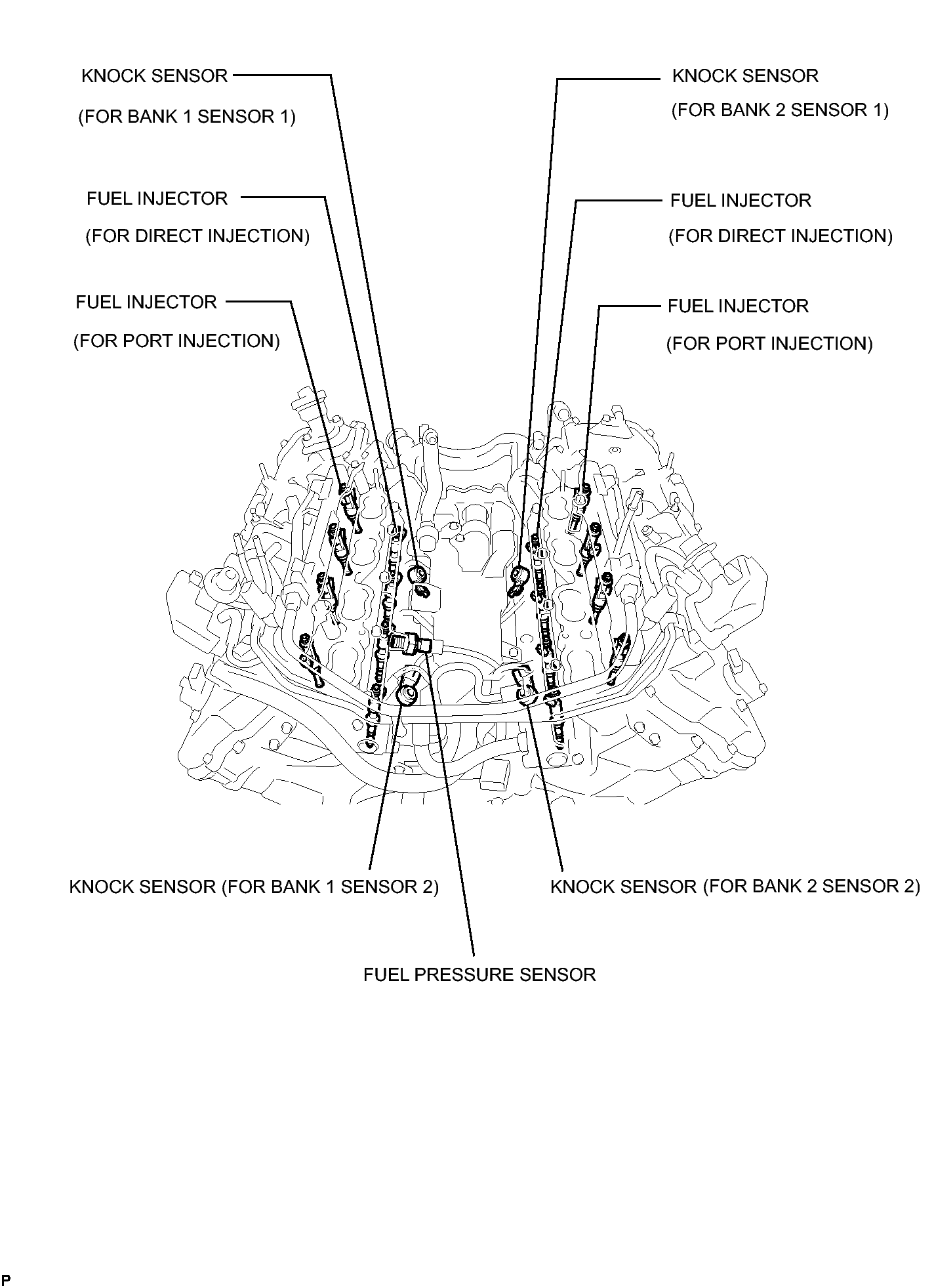

Fig 1: Identifying SFI System Replacement Components (4 Of 6)
GTY100224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

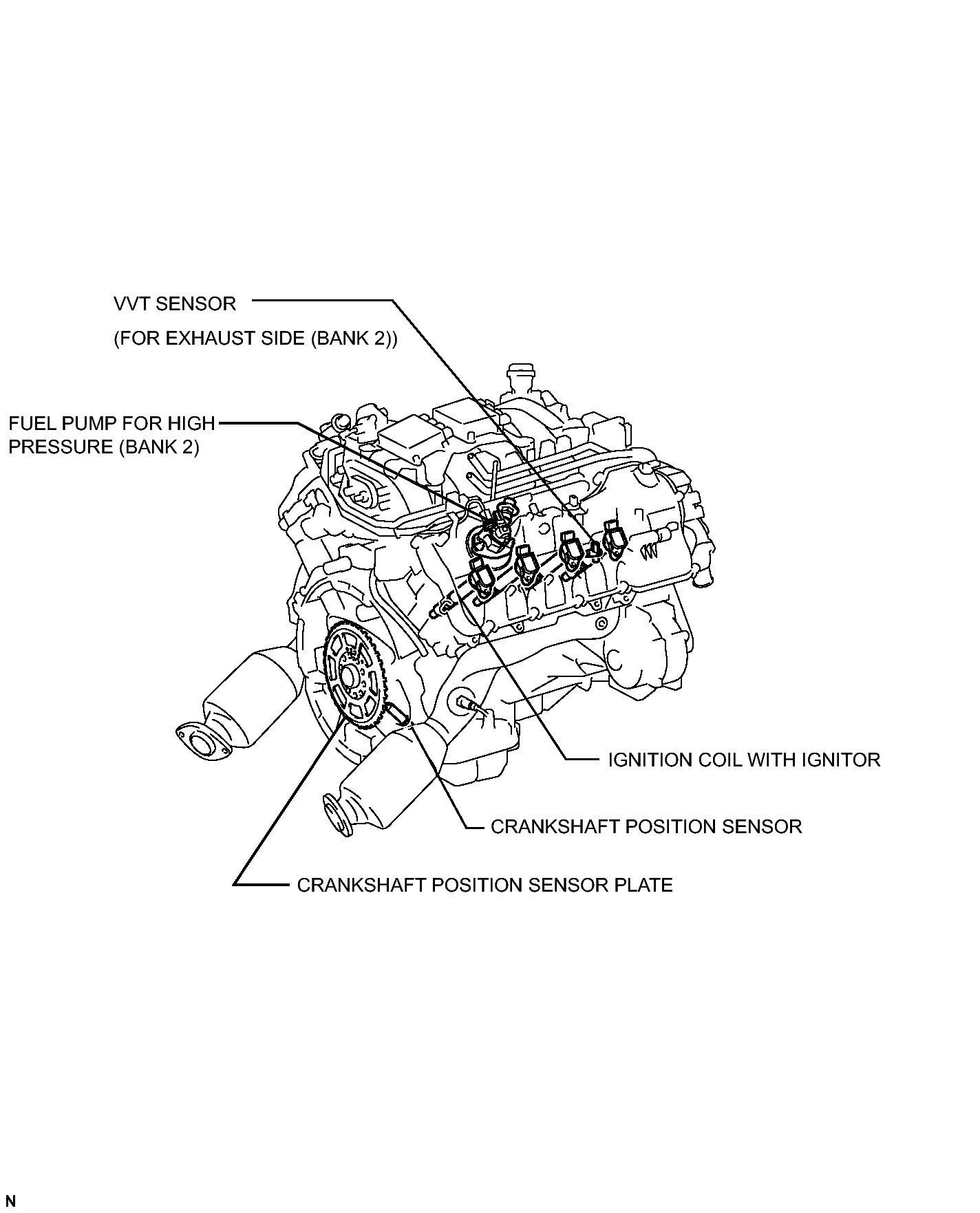

Fig 1: Identifying SFI System Replacement Components (5 Of 6)
GTY102894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

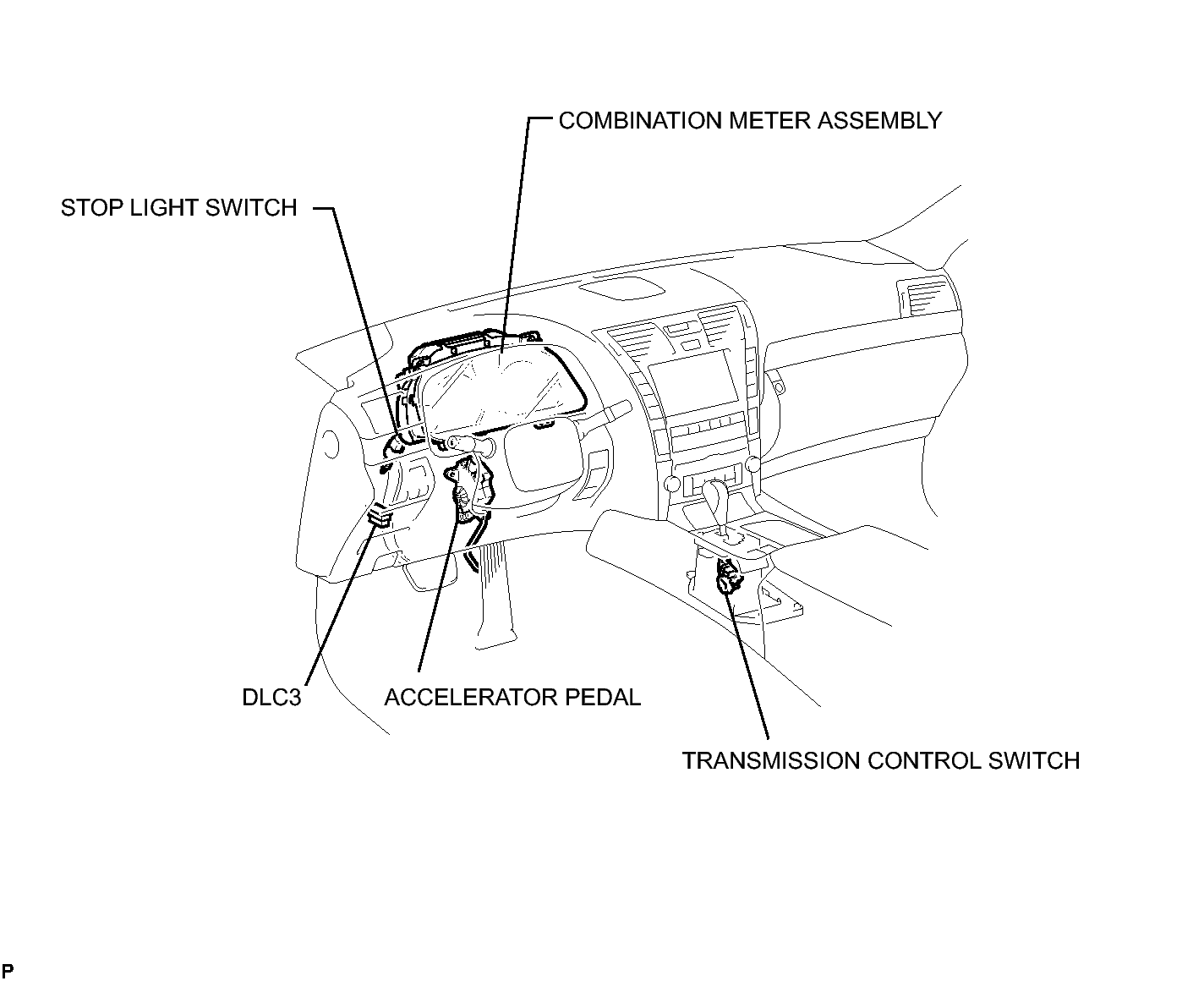

Fig 1: Identifying SFI System Replacement Components (6 Of 6)
GTY103024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
