Remote Up / Down Function Does Not Operate: Wiring Diagram

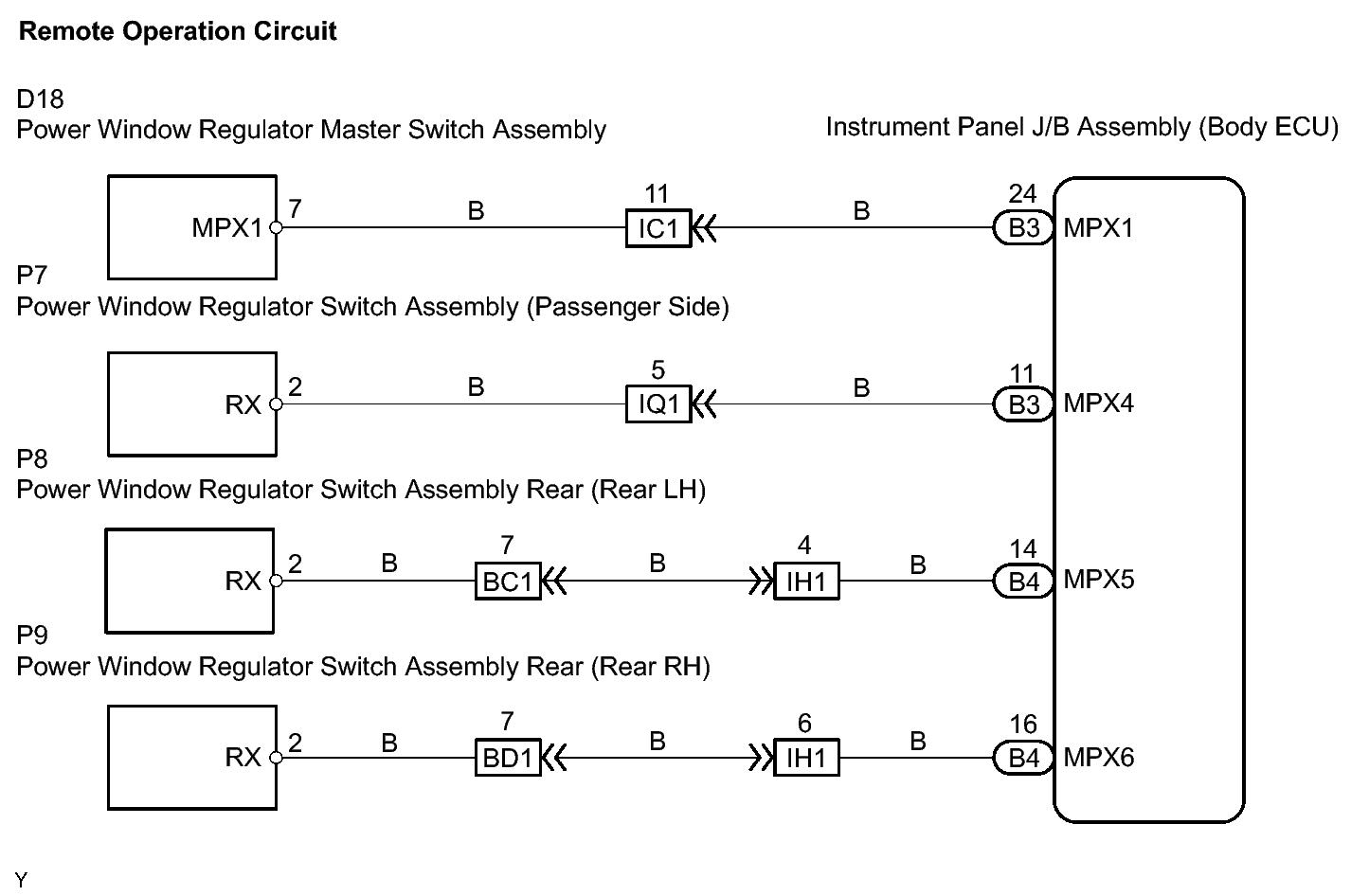

Fig 1: Identifying Power Window Regulator Switch Wiring Diagram
GTY120206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
